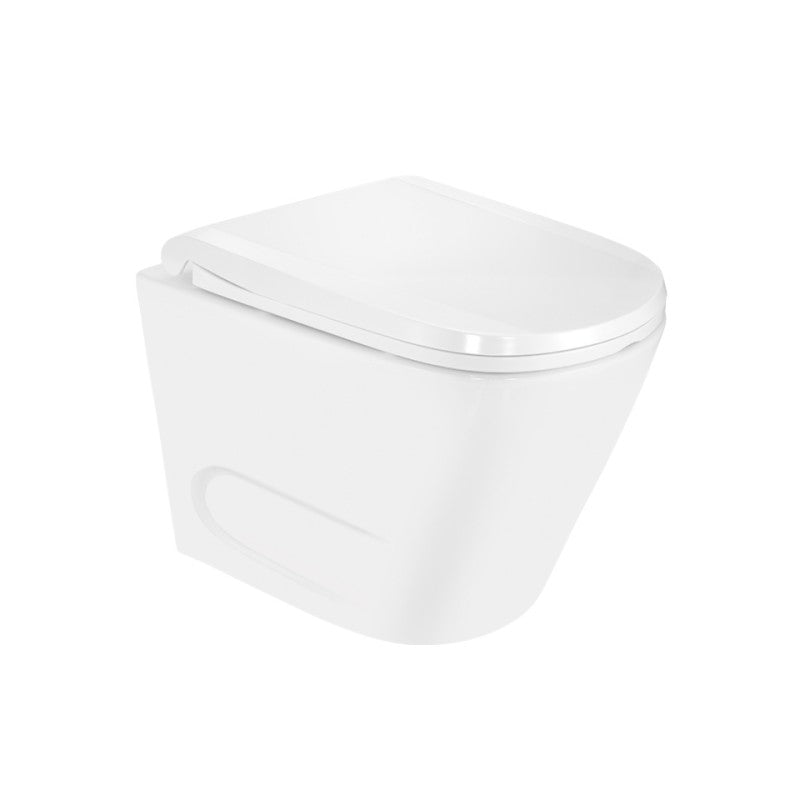

Rimless Blind Installation Wall Hung Toilet

PRODUCT DIMENSIONS

• Overall Dimensions: 370 × 510 × 360 mm

• Bowl Inner Dimension: 260 × 320 mm

• Product Net Weight: 27 kg

• Product Gross Weight: 32 kg

• Packaging Dimensions: 475 × 420 × 545 mm

Inlet & Outlet Hole Dimensions:

• Internal diameter of inlet hole: Ø 58 ± 3 mm

• External diameter of outlet hole: Ø 100 ± 5 mm

PRODUCT FEATURES

• Rimless WC design

• Blind Installation kit included

• UF Soft Close Seat Cover included

• Efficient Dual Flushing – 3/6 LPF

• Anti-bacterial seat cover and glaze

• Installation reference dimensions:

  • (L) From wall tile surface to center of seat cover fixing hole

  • (La) WC fixing wall thickness

  • (Lb) From wall tile surface to inner bowl surface of WC

ACCESSORIES INCLUDED

• UF Soft Close Seat Cover – OPS-WHT-15101UFPM

• Inlet & Outlet Gasket – ZPS-WHT-GK01

• Fixing Kit – ZPS-WHT-FB13

Recommended Accessories:

• Rag Bolt – ZPS-MST-RB07N

• Concealed Cistern – multiple compatible models: JCS-WHT-2400S, 2400P, 2400, 2400WS, 2400WP, 2400FS, 2400FP, 2431P, 2431FP, 2431, 2431S, 2431FS

CARE AND CLEANING GUIDELINES

• Handle vitreous china with care; heavy product – recommend two-person handling

• Inspect for damage before installation

• Avoid over-tightening to prevent breakage

• Do not lift or rock the bowl after placement

• Use soft sponge/cloth for cleaning; avoid abrasive materials

• Clean chrome/stainless steel weekly; avoid chloride-based cleaners

CERTIFICATION

• ISO 9001

• Dimensions in mm (Tolerance ± 5 mm)
