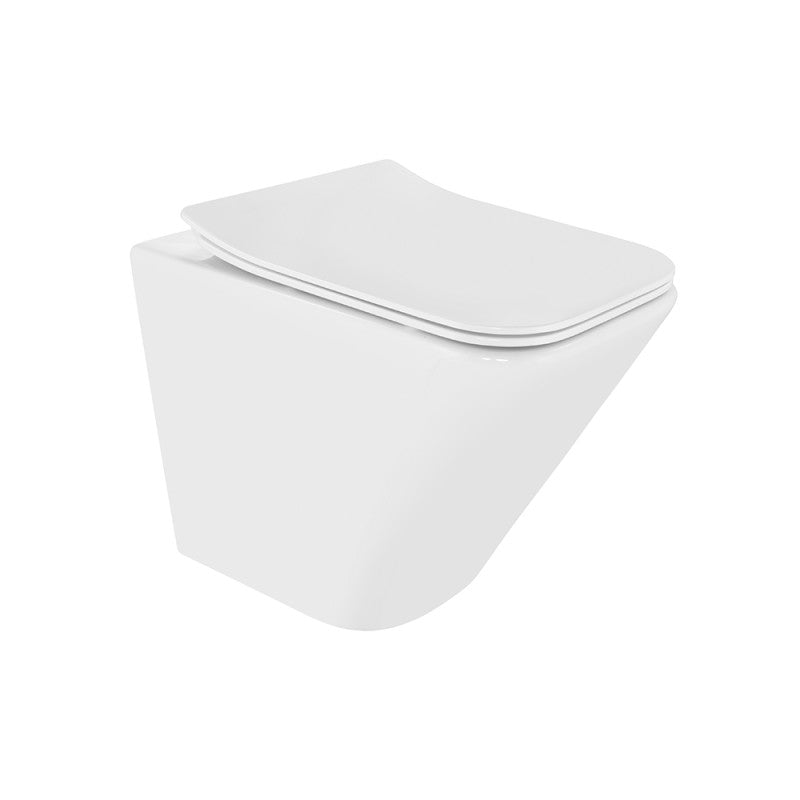

Rimless Back To Wall Toilet

PRODUCT SPECIFICATION

• Product Dimensions: 370 × 520 × 415 mm

• Bowl Opening (Inner Dimension): 275 × 335 mm

• Internal Diameter of Inlet Hole: Ø 58 ± 3 mm

• External Diameter of Outlet Hole: Ø 100 ± 5 mm

• Product Net Weight: 33.2 kg

• Product Gross Weight: 39.0 kg

• Packaging Dimension: 410 × 420 × 535 mm

FEATURES

• Rimless WC with slim seat cover

• Blind installation

• Exclusive design

• Dual Flush – 3/6 LPF

• Anti-germ glaze

ACCESSORIES PROVIDED

• Seat Cover – LAS-WHT-91101UF

• Fixing Kit – ZPS-WHT-FB13

• Inlet & Outlet Gasket – ZPS-WHT-GK01

Accessories Recommended:

• Rag Bolt – ZPS-SNS-RB07N

• Concealed Cistern – JCS-WHT-2400, 2400P, 2400S, 2431, 2431P, 2431S

CARE AND CLEANING GUIDELINES

• Handle vitreous china carefully to avoid damage or injury.

• Product is heavy – recommended two-person handling during installation.

• Inspect before installation; over-tightening may cause breakage.

• Do not lift or rock after placement to avoid leakage.

• Use soft, dampened sponge or cloth for cleaning; avoid abrasives.

• Rinse thoroughly after cleaning; for chrome/stainless steel, avoid chloride cleaners.

CERTIFICATION

• Quality Management System – ISO 9001
