Jaquar Midlands by EWL · Product sheet

Single Function Showerhead

Jaquar

Single Function Showerhead

£71inc. VATRRP £94

Chrome · OHS-CHR-1757

Size53 mm high
Technical drawings

The Jaquar Single Function Showerhead comes in Chrome. An overhead shower creates the main outlet above the showering space.

Up to 10-year warrantyCover varies by productDelivery informationUK mainland: 48-hour delivery from the next working day (weekends are not counted)Returns & supportHelp with your orderShowroom advice0121 663 6878

Warranty varies by product, finish and component. Delivery conditions apply.

CompareSee it in the showroom

Description

A round 140 mm shower head with air effect and a rub-clean face. The manufacturer lists brass and ABS components.

Features & specifications

Features

  • Type: Shower Head
  • Material: Brass and ABS components
  • Installation: Wall mounted

Confirm supplied components for OHS-CHR-1757 with the showroom before ordering.

Installation & compatibility

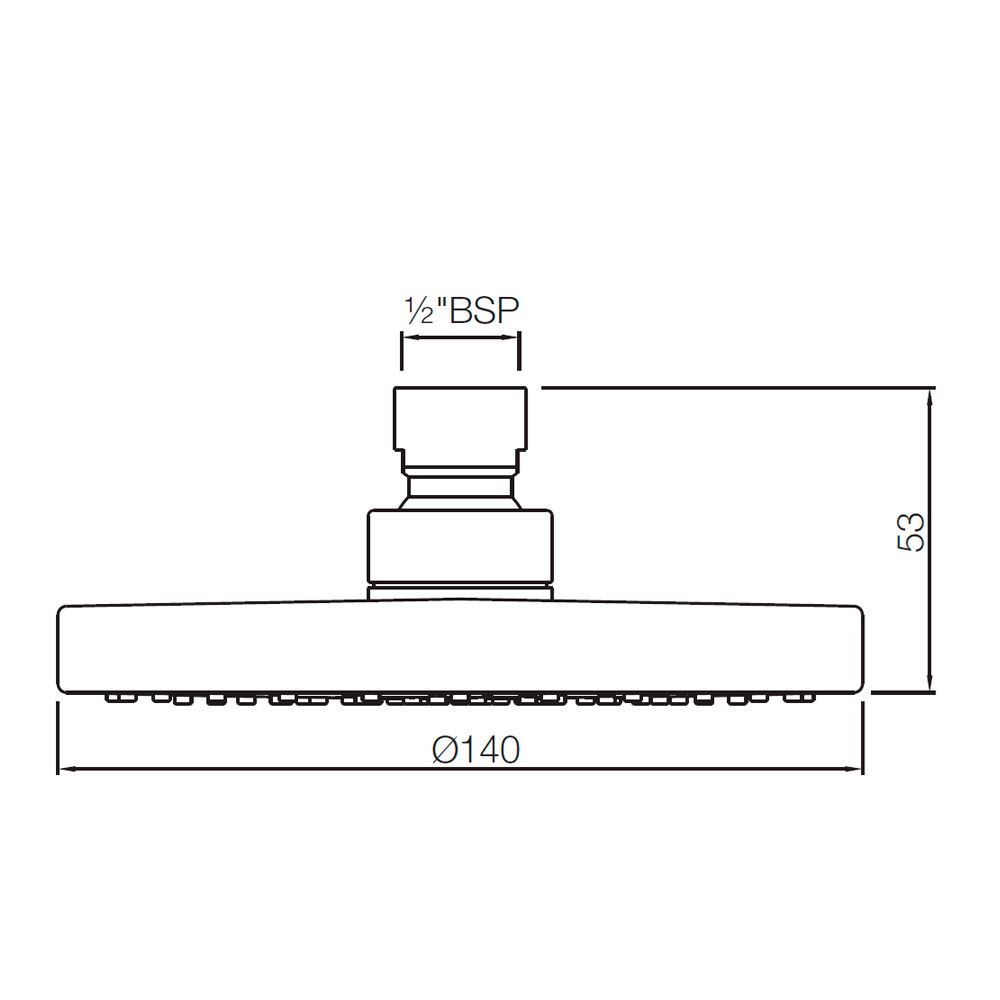

Plan a compatible shower arm and water supply within the manufacturer’s 1.0–3.0 bar operating range. The drawing marks a half-inch BSP inlet and 53 mm head height. Confirm supplied arm components and any regulated order suffix; no arm or regulator is assumed included.

Specifications

Brand
Jaquar
Product code
OHS-CHR-1757
Finish
Chrome
Type
Shower Head
Material
Brass and ABS componentsSource ↗
Diameter
140 mmSource ↗
Flow rate
12.16 litres/min at 3 barSource ↗
Operating water pressure
1.0–3.0 barSource ↗
Shape
RoundSource ↗
Height
53 mm (as drawn)Source ↗
Inlet connection
½ inch BSPSource ↗
Installation
Wall mountedSource ↗
Spray modes
Single functionSource ↗
Air effect
Air mixed into water through a built-in air mixerSource ↗
Cleaning system
Advanced Rubit: rub-clean shower faceSource ↗
Regulated versions
GA 6; GB 8 litres/min at 3 bar (order suffix and brass housing required)Source ↗
Flow variation
Manufacturer allows 10% variationSource ↗
Salt-spray test
350 hours+ (manufacturer reports validated)Source ↗
Coating adhesion
Pass (manufacturer-reported test)Source ↗
Manufacturer specification ↗Product source ↗

Delivery & installation

For Chrome, our showroom team can help with delivery dates, access requirements and installation planning.

Open technical drawing →
Compare this product →

SPECIFICATION & INSTALLATION

Drawings & technical files.

Keep the details for your selected product close to hand, from choosing a finish to planning the fitting.

Selected productOHS-CHR-1757

Technical data sheetPDF · selected product code

For installation, use the manufacturer’s drawing and instructions. Check that the product code matches your selection.
