Jaquar Midlands by EWL · Product sheet

Ornamix Rimless Back-to-wall Toilet

Jaquar

Ornamix Rimless Back-to-wall Toilet

£258inc. VATRRP £343

White · ONS-WHT-10955P180UFSM

Size360 × 575 × 410 mm (width × projection × overall height, datasheet; UK page needs confirmation)

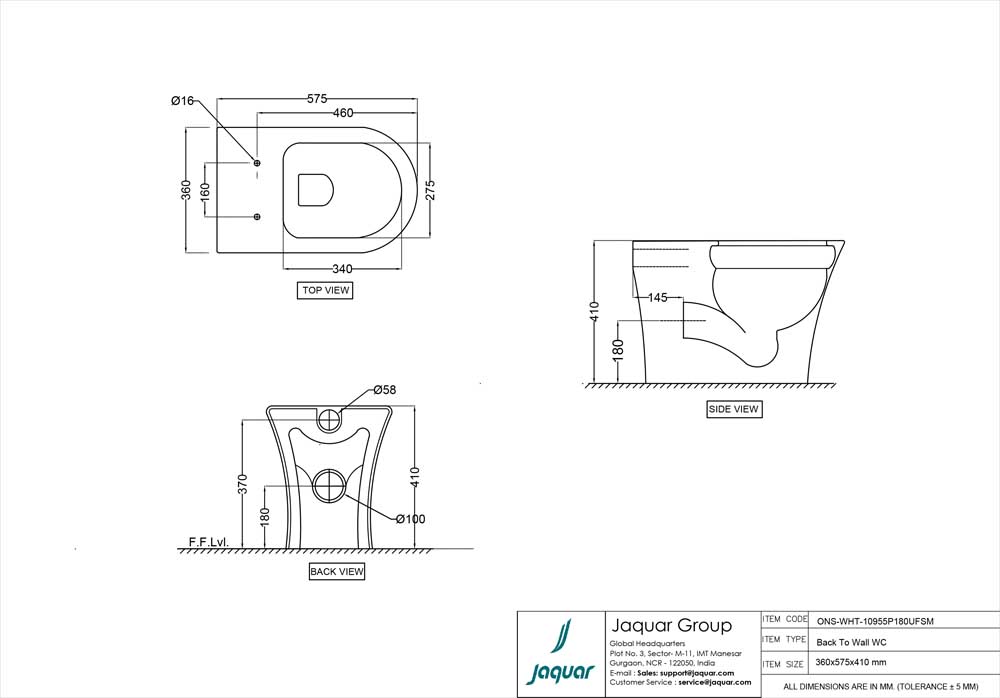

Technical drawings

The Jaquar Ornamix Rimless Back-to-wall Toilet comes in White. A back-to-wall toilet brings the pan up against the wall or furniture unit.

Up to 10-year warrantyCover varies by productFree UK deliveryUK mainland: 48-hour delivery from the next working day (weekends are not counted)Returns & supportHelp with your orderShowroom advice0121 663 6878

Warranty varies by product, finish and component. Delivery conditions apply.

CompareSee it in the showroom

Description

Rimless Back To Wall WC With UF Soft Close Slim Seat Cover, Hinges, Fixing Accessories Set, Size: 370x545x415 mm, P Trap- 180 mm

Features & specifications

Features

  • Type: Back-to-wall WC
  • Material: Vitreous china (ceramic)

Included

  • seat cover: ONS-WHT-10105 (UF, soft-close slim)
  • fixing kit: ZPS-SNS-FB02
  • gasket: ZPS-WHT-GK01

Specifications

Brand
Jaquar
Collection
Ornamix
Product code
ONS-WHT-10955P180UFSM
Finish
White
Type
Back-to-wall WCSource ↗
Material
Vitreous china (ceramic)Source ↗
Overall size
360 × 575 × 410 mm (width × projection × overall height, datasheet; UK page needs confirmation)Source ↗
Width
360 mm (datasheet)Source ↗
Depth
575 mm (datasheet)Source ↗
Height
410 mm (datasheet)Source ↗
Bowl opening
275 × 340 mm (inner dimensions)Source ↗
Net weight
25.5 kgSource ↗
Gross weight
27.5 kgSource ↗
Packaging dimensions
550 × 370 × 420 mm (manufacturer-listed)Source ↗
Outlet
HorizontalSource ↗
Outlet centre height
180 mm (above finished floor, as drawn)Source ↗
Inlet hole diameter
58 mm (±3 mm, internal)Source ↗
Outlet diameter
100 mm (±5 mm, external)Source ↗
Flush volumes
3 and 6 litresSource ↗
Pan design
RimlessSource ↗
Supplied seat cover
ONS-WHT-10105 (UF, soft-close slim)Source ↗
Supplied fixing kit
ZPS-SNS-FB02Source ↗
Supplied gasket
ZPS-WHT-GK01Source ↗
Recommended cisterns
JCS-WHT-2400, 2400P, 2400S, 2431, 2431P and 2431SSource ↗
Glaze
Anti-germ (manufacturer description)Source ↗
Dimension tolerance
±5 mmSource ↗
Care
Use a soft damp cloth or sponge, rinse promptly after cleaning and avoid abrasive brushes or scouring pads.Source ↗
Product source ↗

Delivery & installation

For White, our showroom team can help with delivery dates, access requirements and installation planning.

Open technical drawing →
Compare this product →

SPECIFICATION & INSTALLATION

Drawings & technical files.

Keep the details for your selected product close to hand, from choosing a finish to planning the fitting.

Selected productONS-WHT-10955P180UFSM

Dimension drawingPDF · selected product codeTechnical data sheetPDF · selected product code

For installation, use the manufacturer’s drawing and instructions. Check that the product code matches your selection.
