Jaquar Midlands by EWL · Product sheet

Laguna Rimless Back-to-wall Toilet

Jaquar

Laguna Rimless Back-to-wall Toilet

£369inc. VATRRP £492

White · LAS-WHT-91955P180UFSM

Size370 × 520 × 415 mm (width × projection × overall height)

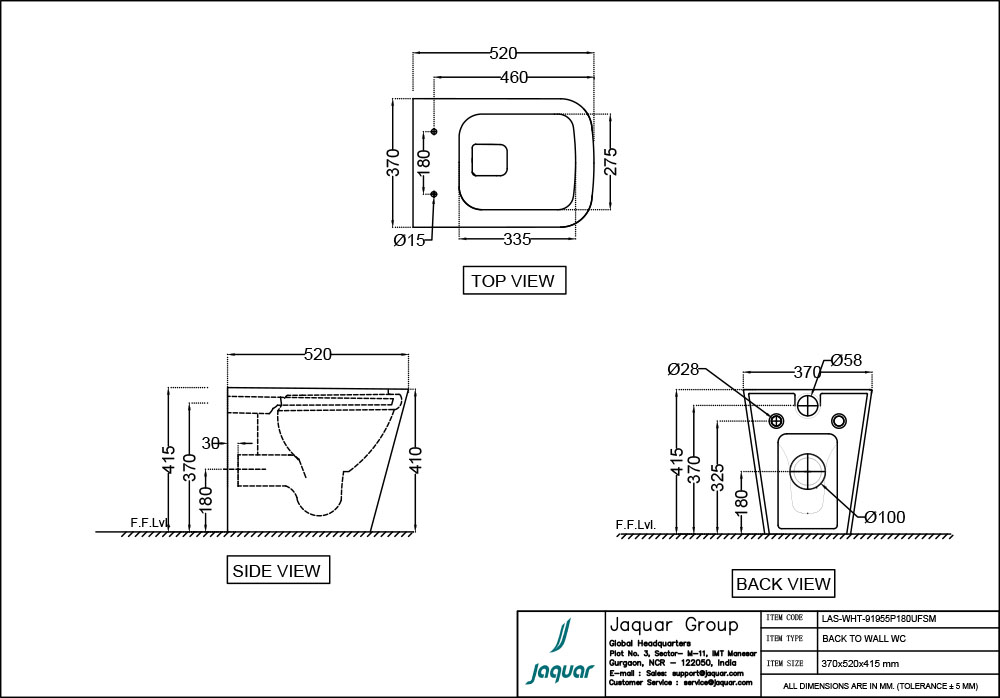

Technical drawings

The Jaquar Laguna Rimless Back-to-wall Toilet comes in White. A back-to-wall toilet brings the pan up against the wall or furniture unit.

Up to 10-year warrantyCover varies by productFree UK deliveryUK mainland: 48-hour delivery from the next working day (weekends are not counted)Returns & supportHelp with your orderShowroom advice0121 663 6878

Warranty varies by product, finish and component. Delivery conditions apply.

CompareSee it in the showroom

Description

Rimless back to wall WC with uf soft close slim seat cover, hinges, fixing accessories and accessories set, size: 370X520X415 MM, p trap- 180 MM

Features & specifications

Features

  • Type: Back-to-wall WC
  • Material: Vitreous china (ceramic)

Included

  • seat cover: LAS-WHT-91101UF
  • fixing kit: ZPS-WHT-FB13
  • gasket: ZPS-WHT-GK01

Specifications

Brand
Jaquar
Collection
Laguna
Product code
LAS-WHT-91955P180UFSM
Finish
White
Type
Back-to-wall WCSource ↗
Material
Vitreous china (ceramic)Source ↗
Overall size
370 × 520 × 415 mm (width × projection × overall height)Source ↗
Bowl opening
275 × 335 mm (inner dimensions)Source ↗
Net weight
33.2 kgSource ↗
Gross weight
39 kgSource ↗
Packaging dimensions
410 × 420 × 535 mm (manufacturer-listed)Source ↗
Outlet
HorizontalSource ↗
Trap distance
180 mm (P-trap)Source ↗
Inlet hole diameter
58 mm (±3 mm, internal)Source ↗
Outlet diameter
100 mm (±5 mm, external)Source ↗
Flush volumes
3 and 6 litresSource ↗
Pan design
RimlessSource ↗
Supplied seat cover
LAS-WHT-91101UFSource ↗
Supplied fixing kit
ZPS-WHT-FB13Source ↗
Supplied gasket
ZPS-WHT-GK01Source ↗
Recommended cisterns
JCS-WHT-2400, 2400P, 2400S, 2431, 2431P and 2431SSource ↗
Recommended rag bolt
ZPS-SNS-RB07NSource ↗
Glaze
Anti-germ (manufacturer description)Source ↗
Dimension tolerance
±5 mmSource ↗
Care
Use a soft damp cloth or sponge; rinse after cleaning. Avoid abrasive brushes and scouring pads.Source ↗
Product source ↗

Delivery & installation

For White, our showroom team can help with delivery dates, access requirements and installation planning.

Open technical drawing →
Compare this product →

SPECIFICATION & INSTALLATION

Drawings & technical files.

Keep the details for your selected product close to hand, from choosing a finish to planning the fitting.

Selected productLAS-WHT-91955P180UFSM

Dimension drawingPDF · selected product codeTechnical data sheetPDF · selected product code

For installation, use the manufacturer’s drawing and instructions. Check that the product code matches your selection.
