Automatic Flushing Pneumatic Cistern with Frame

Name: Automatic Flushing Pneumatic Cistern with Frame — White
Brand: Artize
SKU: APC-WHT-5012500FSAF
Price: 280.00 GBP
Availability: InStock

£280inc. VATRRP £373

White · APC-WHT-5012500FSAF

SizeNot yet confirmed

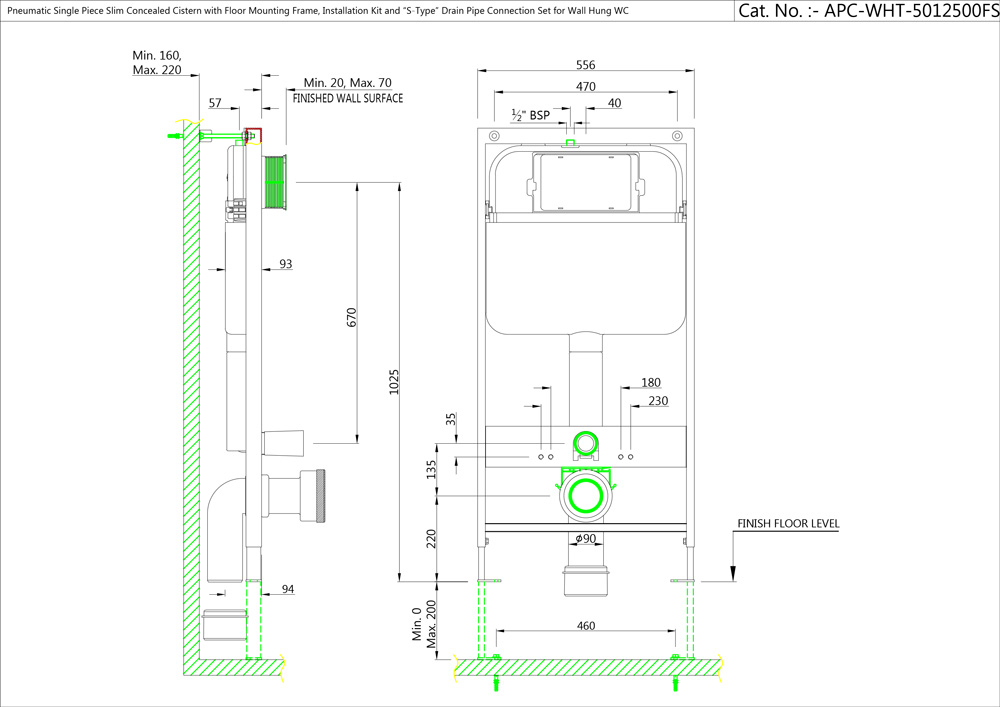

Technical drawings

A pneumatic cistern and frame with an automatic flushing system in White. Confirm the compatible WC and choose the control plate separately.

Up to 10-year warrantyCover varies by product Free UK deliveryUK mainland: 48-hour delivery from the next working day (weekends are not counted)Returns & supportHelp with your order Showroom advice0121 663 6878

Warranty varies by product, finish and component. Delivery conditions apply.

Compare See it in the showroom

For help choosing the right finish and specification, contact our Birmingham showroom.

Call 0121 663 6878 Email the showroom

Description

The Artize Automatic Flushing Pneumatic Cistern with Frame comes in White. This cistern and floor-mounting frame form the concealed flushing and support system for a compatible wall-hung WC. Plan the wall build-up, pan fixings, control plate and maintenance access with your installer.

Features & specifications

Features

Actuation: Pneumatic
Flush volumes: 3 and 6 litres
Leg adjustment: 0–200 mm
Flushing system: Automatic flushing system

Included

Floor-mounting frame, installation kit and S-type drain connection set

Not included

Flush control plate

Specifications

Brand: Artize
Product code: APC-WHT-5012500FSAF
Finish: White
Type: Pneumatic concealed cistern with floor-mounting frameSource ↗
Actuation: PneumaticSource ↗
Material: HDPE (tank body)Source ↗
Tank body thickness: 80 mmSource ↗
Flush volumes: 3 and 6 litresSource ↗
Operating water pressure: 0.3–10 barSource ↗
Recommended water pressure: 1–3 barSource ↗
WC fixing centres: 180 or 230 mmSource ↗
Leg adjustment: 0–200 mmSource ↗
Frame: Powder-coated steelSource ↗
Supplied parts: Floor-mounting frame, installation kit and S-type drain connection setSource ↗
Flush control plate: Not includedSource ↗
Flushing system: Automatic flushing systemSource ↗
Compatible WC: IAS-79953BIPP (manufacturer model reference; sold separately)Source ↗

Product source ↗

Delivery & installation

For White, our showroom team can help with delivery dates, access requirements and installation planning.

Open technical drawing →

Compare this product →

SPECIFICATION & INSTALLATION

Drawings & technical files.

Keep the details for your selected product close to hand, from choosing a finish to planning the fitting.

Selected productAPC-WHT-5012500FSAF

Technical data sheetPDF · selected product code

For installation, use the manufacturer’s drawing and instructions. Check that the product code matches your selection.
