Opal Prime Bath Spout

Jaquar

Opal Prime Bath Spout

£42inc. VATRRP £55

Chrome · SPJ-CHR-15429PM

Size180 mm spout reach

Technical drawings

Finish / option

The Jaquar Opal Prime Bath Spout comes in Chrome. A dedicated spout for filling the bath, with controls selected to suit your installation.

Up to 10-year warrantyCover varies by product Delivery informationUK mainland: 48-hour delivery from the next working day (weekends are not counted)Returns & supportHelp with your order Showroom advice0121 663 6878

Warranty varies by product, finish and component. Delivery conditions apply.

Compare See it in the showroom

For help choosing the right finish and specification, contact our Birmingham showroom.

Call 0121 663 6878 Email the showroom

Description

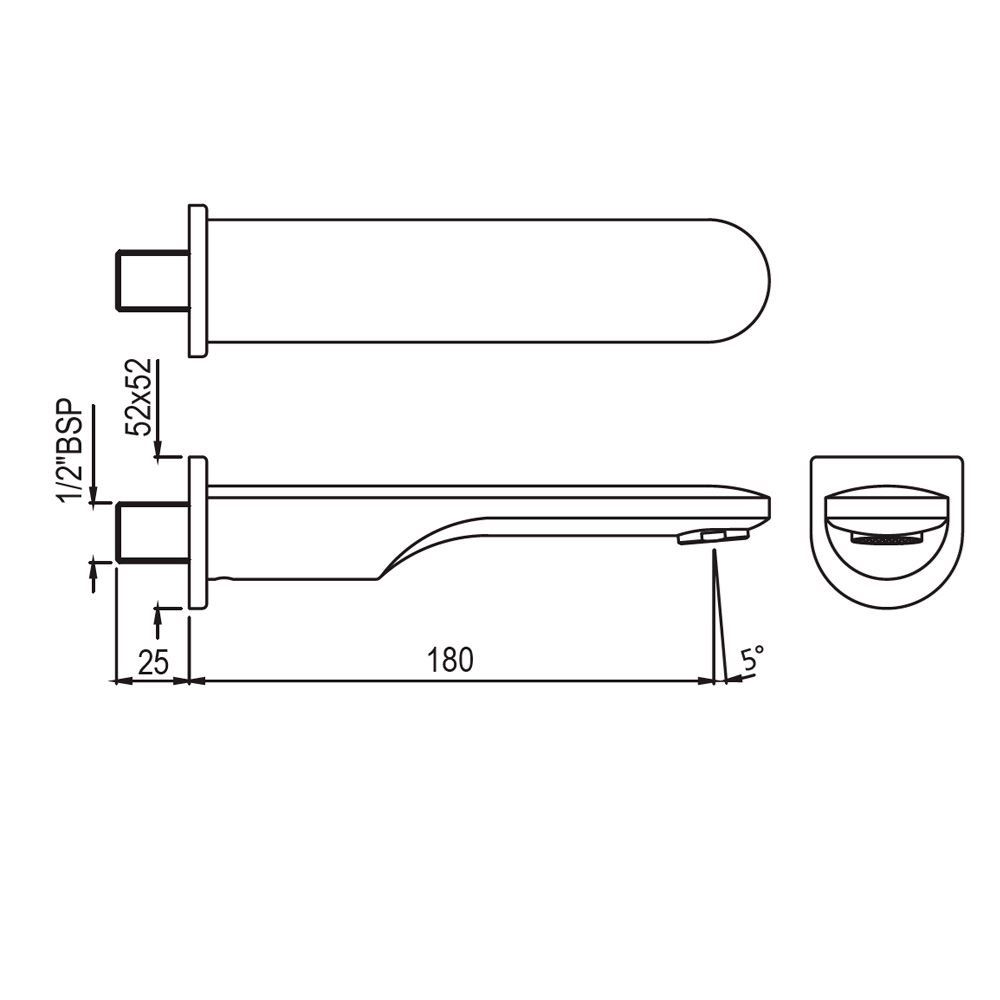

An Opal Prime bath spout with a wall flange and half-inch BSP inlet. The drawing marks 180 mm reach from the flange reference to the outlet centre.

Features & specifications

Features

Type: Bath Spout
Material: Brass components (manufacturer composition table)

Confirm supplied components for SPJ-CHR-15429PM with the showroom before ordering.

Installation & compatibility

Position the outlet over the bath and confirm compatible water controls. The 52 × 52 mm flange is distinct from the wall opening, and the threaded tail is outside the 180 mm reach. Confirm any regulated order suffix and installation instructions before setting the wall connection.

Specifications

Brand: Jaquar
Collection: Opal Prime
Product code: SPJ-CHR-15429PM
Finish: Chrome
Type: Bath SpoutSource ↗
Material: Brass components (manufacturer composition table)Source ↗
Flow rate: 15.69 litres/min at 3 barSource ↗
Operating pressure: 0.5–5 barSource ↗
Operating water pressure: 0.5–5 barSource ↗
Inlet connection: ½ inch BSP (15 mm)Source ↗
Spout reach: 180 mm (as drawn)Source ↗
Backplate size: 52 × 52 mmSource ↗
Aerator thread: M24 × 1Source ↗
Regulated versions: G 2.5; GA 6; GB 8; GC 13; GD 3.8; GE 1.3 litres/min at 3 bar (order suffix required)Source ↗
Flow variation: Manufacturer allows 10% variationSource ↗
Water-tightness test: 16 bar (manufacturer reports pass)Source ↗
Pressure-resistance test: 25 bar (manufacturer reports pass)Source ↗
Chrome plating: Nickel 10 µm; chromium 0.3 µm (manufacturer-listed)Source ↗
Salt-spray test: 500 hours+ (manufacturer reports validated)Source ↗
Coating adhesion: Pass (manufacturer-reported test)Source ↗

Manufacturer specification ↗Product source ↗

Delivery & installation

For Chrome, our showroom team can help with delivery dates, access requirements and installation planning.

Open technical drawing →

Compare this product →

SPECIFICATION & INSTALLATION

Drawings & technical files.

Keep the details for your selected product close to hand, from choosing a finish to planning the fitting.

Selected productSPJ-CHR-15429PM

Technical data sheetPDF · selected product code

For installation, use the manufacturer’s drawing and instructions. Check that the product code matches your selection.
