Pressmatic Non-Concussive Basin Tap

Jaquar

Pressmatic Non-Concussive Basin Tap

£48inc. VATRRP £64

Chrome · PRS-CHR-031

Size110 mm high · 120 mm spout reach

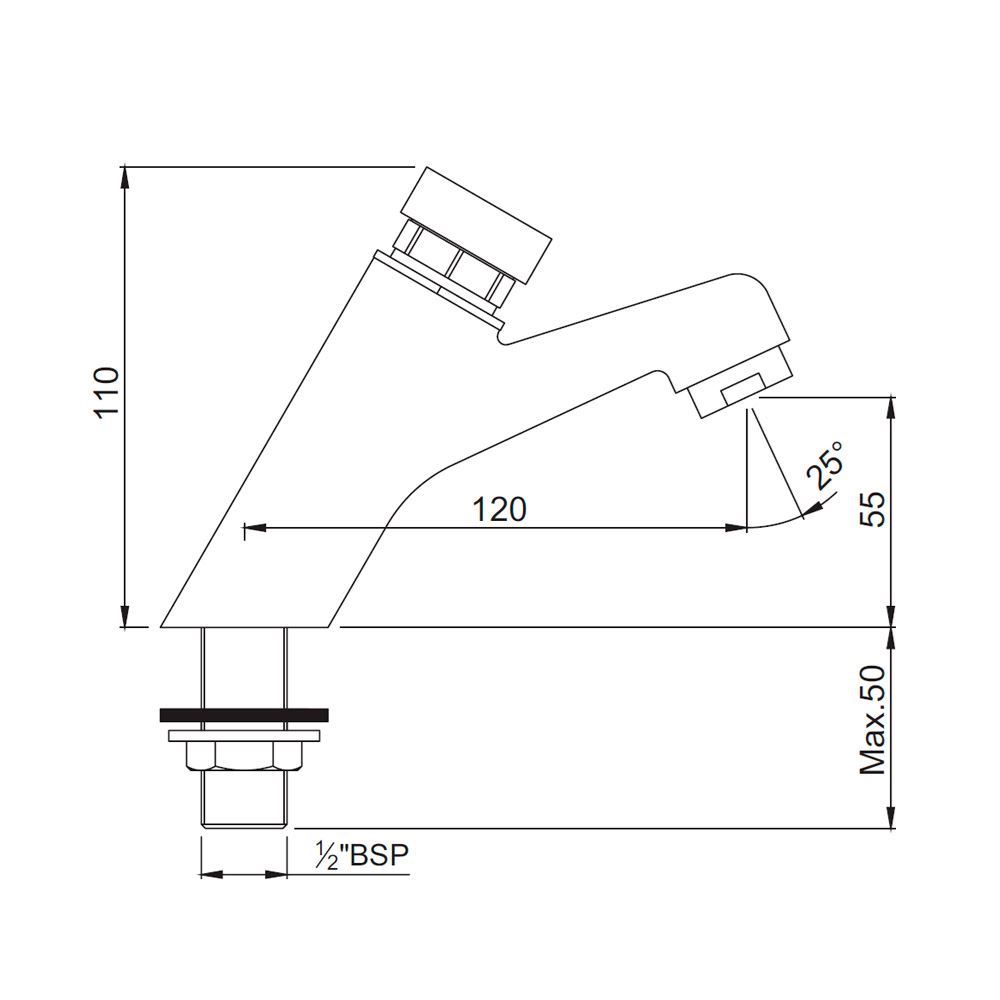

Technical drawings

The Jaquar Pressmatic Non-Concussive Basin Tap comes in Chrome. A timed push control operates the basin tap.

Up to 10-year warrantyCover varies by productDelivery informationUK mainland: 48-hour delivery from the next working day (weekends are not counted)Returns & supportHelp with your orderShowroom advice0121 663 6878

Warranty varies by product, finish and component. Delivery conditions apply.

CompareSee it in the showroom

Description

A Pressmatic push-operated basin tap with automatic timed closure. The manufacturer lists an average seven-second actuation time, with 110 mm height and 120 mm spout reach.

Features & specifications

Features

  • Type: Non-Concussive
  • Material: Brass components (manufacturer composition table)
  • Installation: Deck mounted
  • Operation: Hydro-mechanical push activation with automatic timed closure

Confirm supplied components for PRS-CHR-031 with the showroom before ordering.

Installation & compatibility

Plan the basin position around the 55 mm spout height and half-inch BSP inlet. Confirm deck thickness, fixings and a suitable water-temperature arrangement. The 70°C figure is the manufacturer’s maximum water temperature, not a delivery-temperature setting. Use the 0.2–4.0 bar operating range; regulated versions require the appropriate order suffix.

Specifications

Brand
Jaquar
Collection
Pressmatic
Product code
PRS-CHR-031
Finish
Chrome
Type
Non-ConcussiveSource ↗
Material
Brass components (manufacturer composition table)Source ↗
Height
110 mmSource ↗
Spout reach
120 mm (as drawn)Source ↗
Operating pressure
0.2–4.0 barSource ↗
Flow rate
16.72 litres/min at 3 barSource ↗
Operating water pressure
0.2–4.0 barSource ↗
Aerator thread
24 × 1Source ↗
Installation
Deck mountedSource ↗
Tap holes
1Source ↗
Spout height
55 mm (as drawn)Source ↗
Inlet connection
½ inch BSPSource ↗
Operation
Hydro-mechanical push activation with automatic timed closureSource ↗
Average closure time
7 secondsSource ↗
Maximum water temperature
70°C (manufacturer-listed)Source ↗
Cartridge endurance test
210,000 cycles to EN 816 at 4 ±0.5 bar (manufacturer-listed)Source ↗
Water-tightness test
16 bar (manufacturer reports pass)Source ↗
Regulated versions
G 2.5; GA 6; GB 8; GC 13; GD 3.8; GE 1.3 litres/min at 3 bar (order suffix required)Source ↗
Flow variation
Manufacturer allows 10% variationSource ↗
Chrome plating
Nickel 10 µm; chromium 0.3 µm (manufacturer-listed)Source ↗
Salt-spray test
500 hours+ (manufacturer reports validated)Source ↗
Coating adhesion
Pass (manufacturer-reported test)Source ↗
Manufacturer specification ↗Product source ↗

Delivery & installation

For Chrome, our showroom team can help with delivery dates, access requirements and installation planning.

Open technical drawing →
Compare this product →

SPECIFICATION & INSTALLATION

Drawings & technical files.

Keep the details for your selected product close to hand, from choosing a finish to planning the fitting.

Selected productPRS-CHR-031

Technical data sheetPDF · selected product codeDimension drawingPDF · model drawing

For installation, use the manufacturer’s drawing and instructions. Check that the product code matches your selection.
