Ornamix Prime Mono Basin Mixer

Jaquar

Ornamix Prime Mono Basin Mixer

£110inc. VATRRP £146

Chrome · ORP-CHR-10011BPMCLW

Size162 mm high · 115 mm spout reach

Technical drawings

Finish / option

The Jaquar Ornamix Prime Mono Basin Mixer comes in Chrome. Supplied with Click-clack basin waste (ALD-729).

Up to 10-year warrantyCover varies by product Delivery informationUK mainland: 48-hour delivery from the next working day (weekends are not counted)Returns & supportHelp with your order Showroom advice0121 663 6878

Warranty varies by product, finish and component. Delivery conditions apply.

Compare See it in the showroom

For help choosing the right finish and specification, contact our Birmingham showroom.

Call 0121 663 6878 Email the showroom

Description

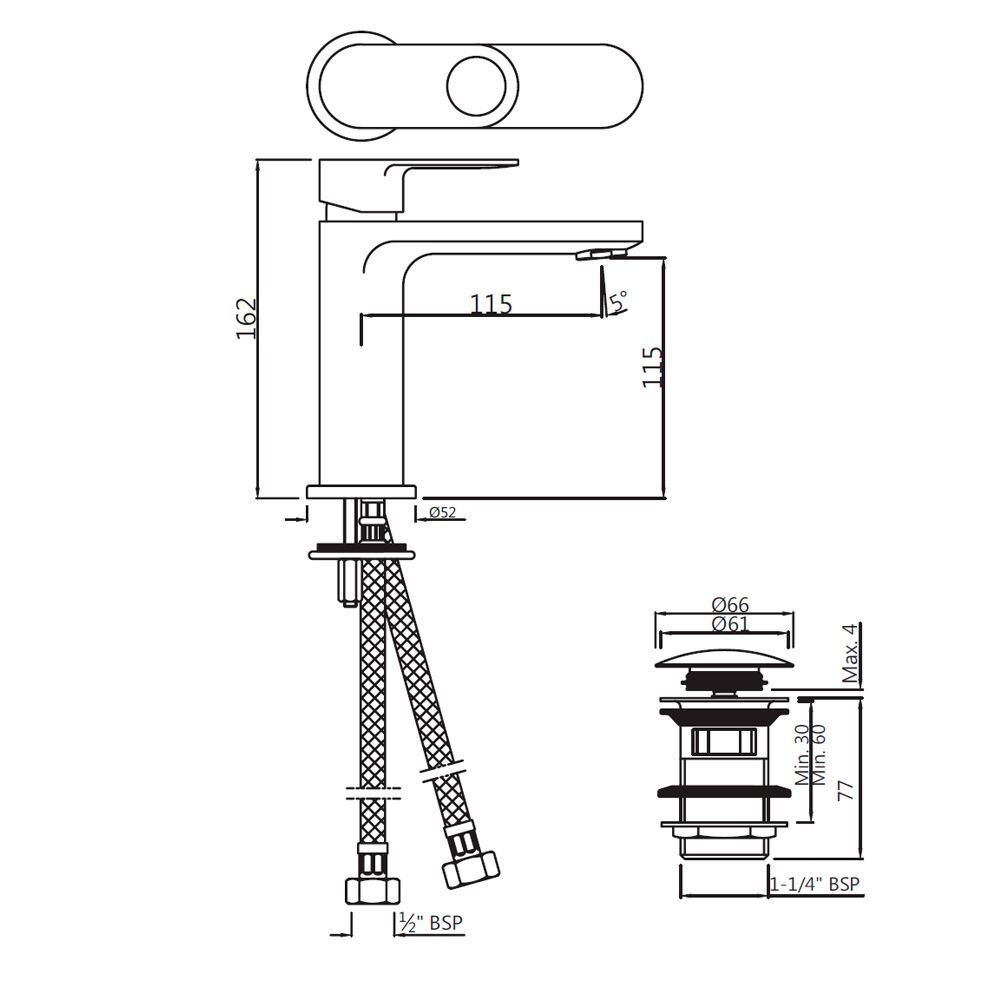

An Ornamix mono basin mixer supplied with an ALD-729 click-clack waste. Its 162 mm height and 115 mm spout reach are separately marked in the manufacturer drawing.

Features & specifications

Features

Type: Basin Mixer Tap
Material: Brass components (manufacturer composition table)
Installation: Deck mounted
Cartridge features: Temperature limiter and brass spindle

Included

Click-clack basin waste (ALD-729)

Installation & compatibility

Check the basin and mounting requirements, allowing access to the braided half-inch FIP connections. The waste has a 1¼-inch BSP thread; confirm basin-opening size and overflow compatibility. The 52 mm base diameter is not a cutout specification. Use the 0.5–5.0 bar operating range; the separate 10 bar figure applies to the braided-hose withstand test.

Specifications

Brand: Jaquar
Collection: Ornamix Prime
Product code: ORP-CHR-10011BPMCLW
Finish: Chrome
Type: Basin Mixer Tap
Material: Brass components (manufacturer composition table)Source ↗
Supplied parts: Click-clack basin waste (ALD-729)Source ↗
Installation: Deck mountedSource ↗
Tap holes: 1Source ↗
Height: 162 mmSource ↗
Spout reach: 115 mm (as drawn)Source ↗
Operating pressure: 0.5–5 barSource ↗
Flow rate: 15.98 litres/min at 3 barSource ↗
Operating water pressure: 0.5–5 barSource ↗
Connection: Braided hoses, 1/2” FIPSource ↗
Aerator thread: 24 × 1Source ↗
Spout height: 115 mm (as drawn)Source ↗
Base diameter: 52 mmSource ↗
Waste connection: 1¼ inch BSPSource ↗
Cartridge features: Temperature limiter and brass spindleSource ↗
Braided-hose test pressure: 10 bar (manufacturer-listed withstand pressure)Source ↗
Regulated versions: G 2.5; GA 6; GB 8; GC 13; GD 3.8; GE 1.3 litres/min at 3 bar (order suffix required)Source ↗
Flow variation: Manufacturer allows 10% variationSource ↗
Water-tightness test: 16 bar (manufacturer reports pass)Source ↗
Pressure-resistance test: 25 bar (manufacturer reports pass)Source ↗
Chrome plating: Nickel 10 µm; chromium 0.3 µm (manufacturer-listed)Source ↗
Salt-spray test: 500 hours+ (manufacturer reports validated)Source ↗
Coating adhesion: Pass (manufacturer-reported test)Source ↗

Manufacturer specification ↗Product source ↗

Delivery & installation

For Chrome, our showroom team can help with delivery dates, access requirements and installation planning.

Open technical drawing →

Compare this product →

SPECIFICATION & INSTALLATION

Drawings & technical files.

Keep the details for your selected product close to hand, from choosing a finish to planning the fitting.

Selected productORP-CHR-10011BPMCLW

Technical data sheetPDF · selected product code

For installation, use the manufacturer’s drawing and instructions. Check that the product code matches your selection.
