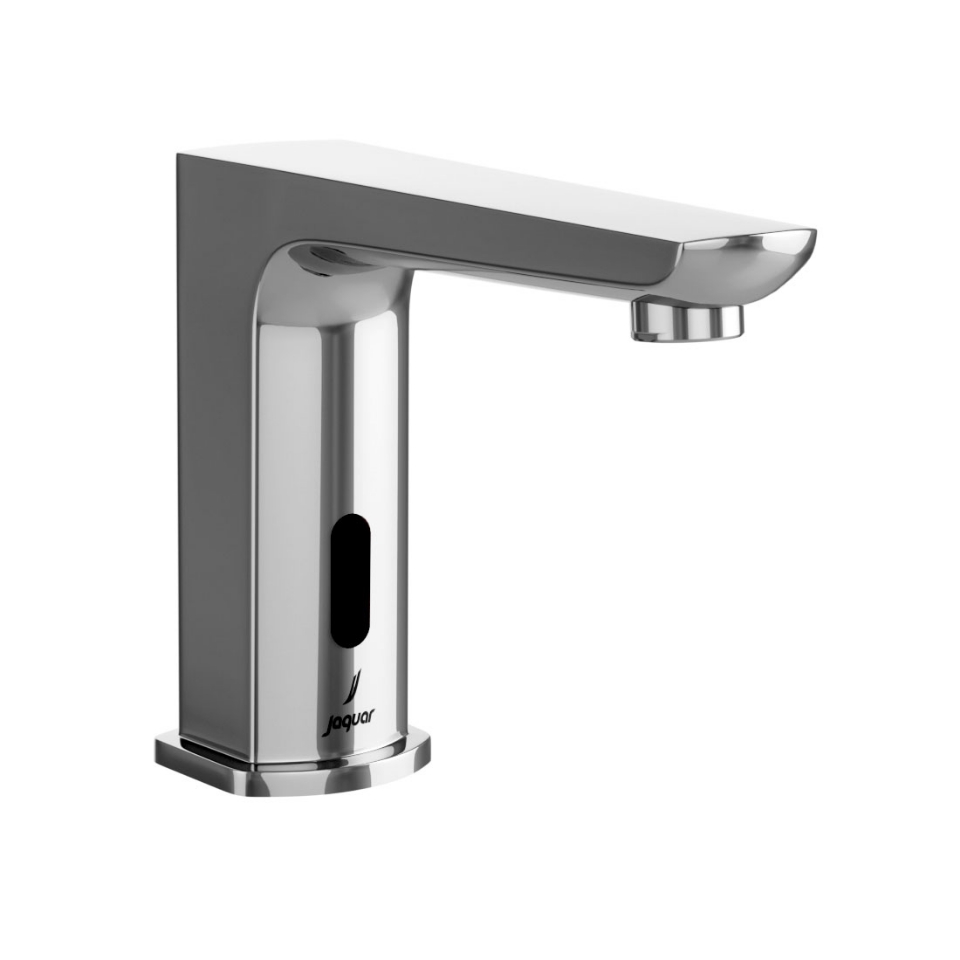

Kubix Prime Deck-Mounted Sensor Basin Tap

Jaquar

Kubix Prime Deck-Mounted Sensor Basin Tap

£209inc. VATRRP £278

Chrome · SNR-CHR-35019PMEBPK

Size132 mm high · 125 mm spout reach

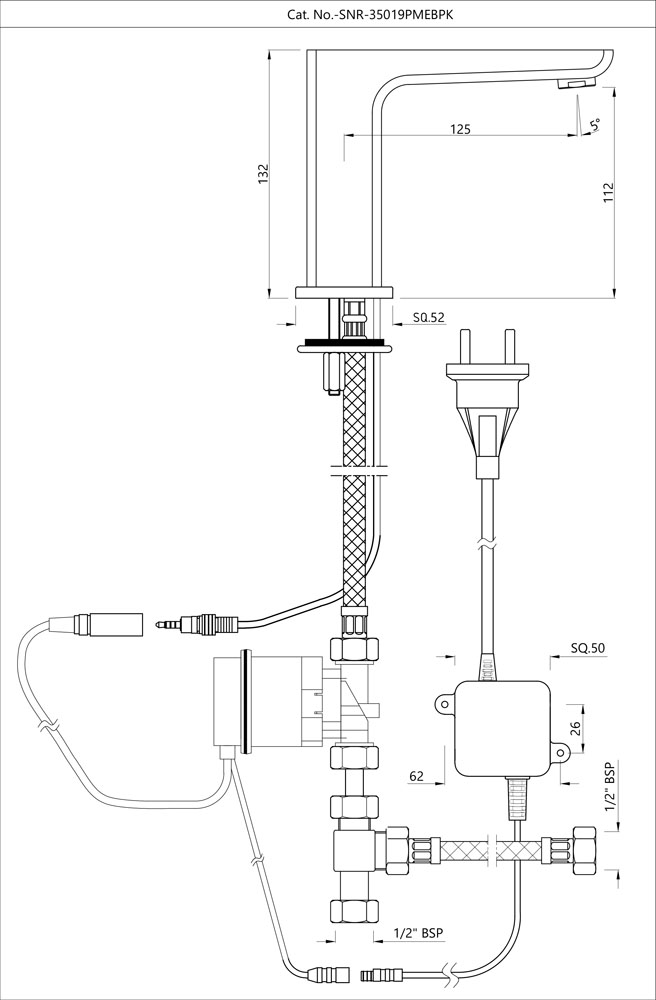

Technical drawings

Finish / option

The Jaquar Kubix Prime Deck-Mounted Sensor Basin Tap comes in Chrome. Sensor activation allows hands-free use at the basin.

Up to 10-year warrantyCover varies by product Delivery informationUK mainland: 48-hour delivery from the next working day (weekends are not counted)Returns & supportHelp with your order Showroom advice0121 663 6878

Warranty varies by product, finish and component. Delivery conditions apply.

Compare See it in the showroom

For help choosing the right finish and specification, contact our Birmingham showroom.

Call 0121 663 6878 Email the showroom

Description

A chrome Kubix Prime sensor basin tap with a pre-mixed water-supply kit and Jaquar 9V transformer. Sensor activation brings hands-free operation to the basin.

Features & specifications

Features

Type: Sensor basin tap
Material: Brass components (manufacturer-listed)
Installation: Deck mounted

Confirm supplied components for SNR-CHR-35019PMEBPK with the showroom before ordering.

Installation & compatibility

Plan accessible space for the supply and control kit beneath the basin. The exact sheet specifies hot and cold inlets, 1.0–5.0 bar operating pressure and a Jaquar 9V transformer. Confirm the current UK power kit and installation instructions before arranging the electrical supply.

Specifications

Brand: Jaquar
Collection: Kubix Prime
Product code: SNR-CHR-35019PMEBPK
Finish: Chrome
Type: Sensor basin tapSource ↗
Material: Brass components (manufacturer-listed)Source ↗
Installation: Deck mountedSource ↗
Tap holes: 1Source ↗
Operating pressure: 1.0–5.0 barSource ↗
Operating water pressure: 1.0–5.0 barSource ↗
Flow rate: 11.80 litres/min at 3 barSource ↗
Height: 132 mm (as drawn)Source ↗
Spout height: 112 mm (as drawn)Source ↗
Spout reach: 125 mm (as drawn)Source ↗
Base size: 52 × 52 mm (as drawn)Source ↗
Usage indicator: Red LEDSource ↗
Water supply: Hot and cold (2 inlets)Source ↗
Maximum supply temperature: 65°C (manufacturer-listed maximum)Source ↗
Ambient operating temperature: 0–40°CSource ↗
Inlet connection: ½ inch BSP (15 mm)Source ↗
Self-close override time: 12 secondsSource ↗
Control-box protection: IP66 (manufacturer-listed)Source ↗
Sensor-eye protection: IP66 (manufacturer-listed)Source ↗
Factory detection range: 10–22 cmSource ↗
Valve shut-off time: Less than 2 secondsSource ↗
Sensor response time: Less than 1 secondSource ↗
Power source: 9V transformer (Jaquar make only)Source ↗
Solenoid voltage: 9V DC (±10%)Source ↗
Solenoid operating pressure: 1.0–5.0 barSource ↗
Power figures: Standby <0.4 mW DC; “flushing” 0.4 W (manufacturer sheet labels)Source ↗
Regulated versions: G 2.5; GA 6; GB 8; GD 3.8; GE 1.3 litres/min at 3 bar (order suffix required)Source ↗
Flow variation: 10% variation may occur (manufacturer disclaimer)Source ↗
Aerator thread: M20 × 1Source ↗
Chrome plating: Nickel 10.0 µm; chromium 0.3 µm (manufacturer specification)Source ↗
Salt spray test: 500 hours (manufacturer reports validated)Source ↗
Adhesion test: Pass (manufacturer sheet)Source ↗
Manufacturer size: 132 mm high · 125 mm spout reachSource ↗

Manufacturer specification ↗Product source ↗

Delivery & installation

For Chrome, our showroom team can help with delivery dates, access requirements and installation planning.

Open technical drawing →

Compare this product →

SPECIFICATION & INSTALLATION

Drawings & technical files.

Keep the details for your selected product close to hand, from choosing a finish to planning the fitting.

Selected productSNR-CHR-35019PMEBPK

Technical data sheetPDF · selected product code

For installation, use the manufacturer’s drawing and instructions. Check that the product code matches your selection.
