Kubix Prime High Neck Deck-Mounted Sensor Basin Tap

Jaquar

Kubix Prime High Neck Deck-Mounted Sensor Basin Tap

£240inc. VATRRP £319

Chrome · SNR-CHR-35017PMEBPK

Size285 mm high · 150 mm spout reach

Technical drawings

Finish / option

The Jaquar Kubix Prime High Neck Deck-Mounted Sensor Basin Tap comes in Chrome. Sensor activation allows hands-free use at the basin.

Up to 10-year warrantyCover varies by product Delivery informationUK mainland: 48-hour delivery from the next working day (weekends are not counted)Returns & supportHelp with your order Showroom advice0121 663 6878

Warranty varies by product, finish and component. Delivery conditions apply.

Compare See it in the showroom

For help choosing the right finish and specification, contact our Birmingham showroom.

Call 0121 663 6878 Email the showroom

Description

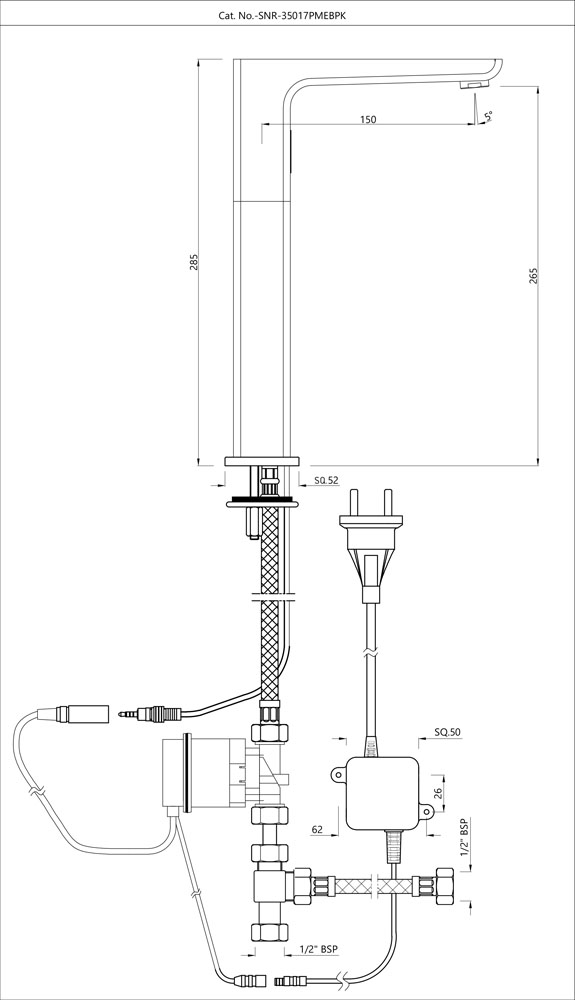

A Kubix Prime tall sensor basin tap with a pre-mixed water supply kit and a 9V Jaquar transformer. The drawing gives 285 mm overall height, 265 mm outlet height and 150 mm spout reach.

Features & specifications

Features

Type: High Neck Sensor Basin Faucet
Material: Brass components (manufacturer composition table)
Installation: Deck mounted

Confirm supplied components for SNR-CHR-35017PMEBPK with the showroom before ordering.

Installation & compatibility

Check the spout position over the basin and provide access to the supply kit and transformer. Match the hot and cold kit feeds and half-inch BSP connection to the installation. Use the 1–5 bar operating range and confirm current UK kit contents and installation instructions. The 65°C maximum inlet rating is not a delivery-temperature setting.

Specifications

Brand: Jaquar
Collection: Kubix Prime
Product code: SNR-CHR-35017PMEBPK
Finish: Chrome
Type: High Neck Sensor Basin FaucetSource ↗
Material: Brass components (manufacturer composition table)Source ↗
Installation: Deck mountedSource ↗
Tap holes: 1Source ↗
Operating pressure: 1.0–5.0 barSource ↗
Operating water pressure: 1.0–5.0 barSource ↗
Flow rate: 11.90 litres/min at 3 barSource ↗
Height: 285 mmSource ↗
Spout height: 265 mm (as drawn)Source ↗
Spout reach: 150 mm (as drawn)Source ↗
Base size: 52 × 52 mmSource ↗
Water supply: Hot and cold: 2 kit inletsSource ↗
Inlet connection: ½ inch BSPSource ↗
Power source: 9V transformer (Jaquar make only)Source ↗
Supply kit: Pre-mixed water supply kitSource ↗
Usage indicator: Red LEDSource ↗
Maximum inlet water temperature: 65°CSource ↗
Ambient operating temperature: 0–40°CSource ↗
Self-close override: 12 secondsSource ↗
Solenoid voltage: 9V DC ±10%Source ↗
Solenoid flow direction: One way: follow the arrowSource ↗
Solenoid gasket materials: EPDM / NBR / silicone (MVQ), manufacturer-listed alternativesSource ↗
Control-box protection: IP66Source ↗
Sensor-eye protection: IP66Source ↗
Factory detection range: 10–22 cmSource ↗
Valve shutoff time: Less than 2 secondsSource ↗
Sensor activation time: Less than 1 secondSource ↗
Standby power: Less than 0.4 mW DC (manufacturer-listed)Source ↗
Active power: 0.4 WSource ↗
Aerator thread: M20 × 1Source ↗
Regulated versions: G 2.5; GA 6; GB 8; GD 3.8; GE 1.3 litres/min at 3 bar (order suffix required)Source ↗
Flow variation: Manufacturer allows 10% variationSource ↗
Chrome plating: Nickel 10 µm; chromium 0.3 µm (manufacturer-listed)Source ↗
Salt-spray test: 500 hours+ (manufacturer reports validated)Source ↗
Coating adhesion: Pass (manufacturer-reported test)Source ↗

Manufacturer specification ↗Product source ↗

Delivery & installation

For Chrome, our showroom team can help with delivery dates, access requirements and installation planning.

Open technical drawing →

Compare this product →

SPECIFICATION & INSTALLATION

Drawings & technical files.

Keep the details for your selected product close to hand, from choosing a finish to planning the fitting.

Selected productSNR-CHR-35017PMEBPK

Technical data sheetPDF · selected product code

For installation, use the manufacturer’s drawing and instructions. Check that the product code matches your selection.
