Kubix Prime Bath Spout

Jaquar

Kubix Prime Bath Spout

£45inc. VATRRP £59

Chrome · SPJ-CHR-35429PM

Size183 mm spout reach

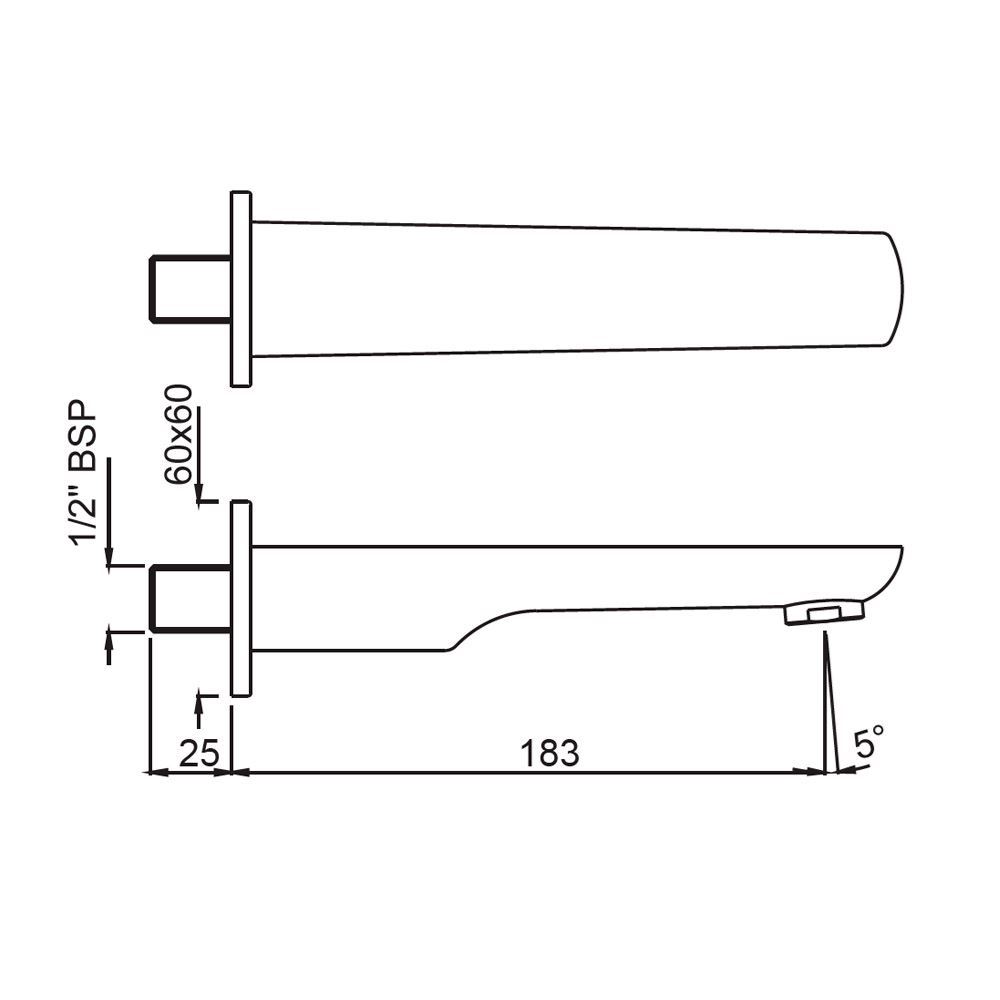

Technical drawings

Finish / option

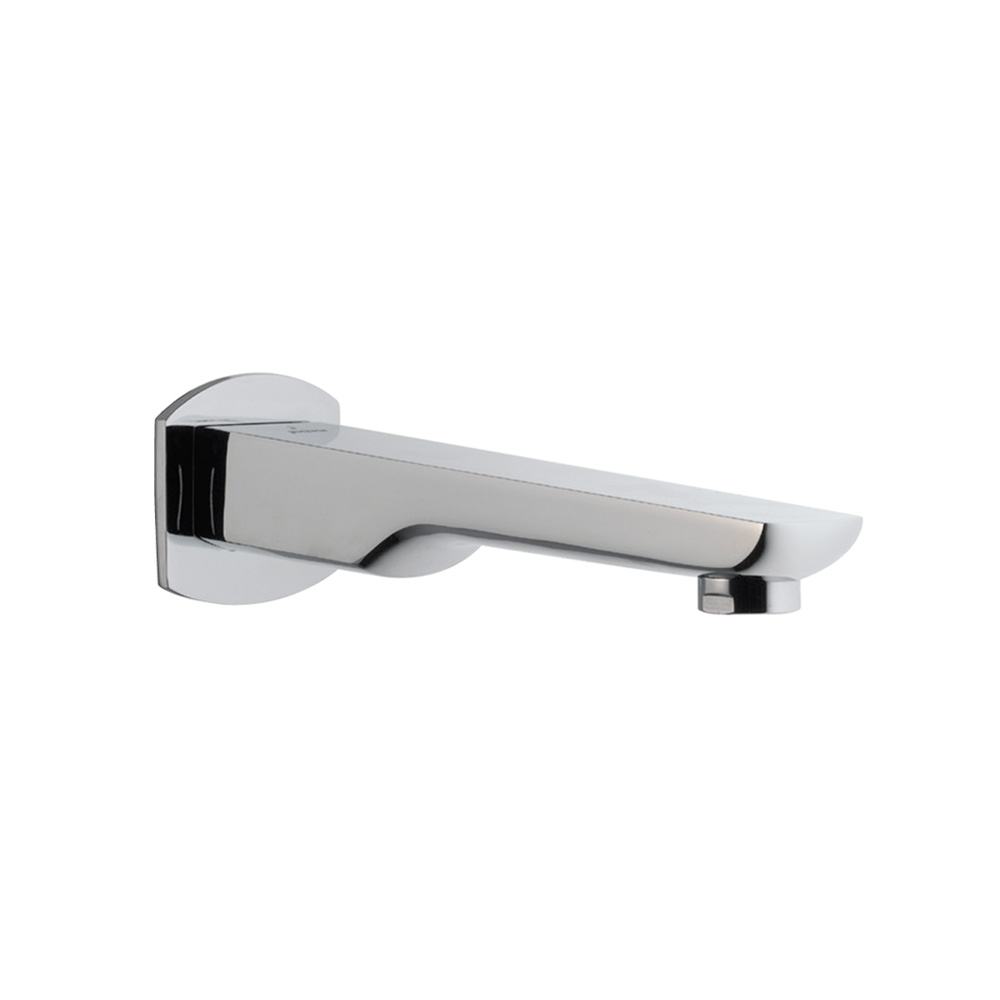

The Jaquar Kubix Prime Bath Spout comes in Chrome. A dedicated spout for filling the bath, with controls selected to suit your installation.

Up to 10-year warrantyCover varies by product Delivery informationUK mainland: 48-hour delivery from the next working day (weekends are not counted)Returns & supportHelp with your order Showroom advice0121 663 6878

Warranty varies by product, finish and component. Delivery conditions apply.

Compare See it in the showroom

For help choosing the right finish and specification, contact our Birmingham showroom.

Call 0121 663 6878 Email the showroom

Description

A Kubix Prime wall-mounted bath spout with a square 60 mm backplate and 183 mm spout reach. Separate controls let the bath-filling arrangement follow the surrounding brassware.

Features & specifications

Features

Type: Bath Spout
Material: Brass components (manufacturer composition table)
Installation: Wall mounted

Confirm supplied components for SPJ-CHR-35429PM with the showroom before ordering.

Installation & compatibility

Position the outlet over the bath bowl using the 183 mm reach datum. The half-inch BSP threaded tail extends 25 mm behind the flange and is outside that reach. Confirm supplied fixings and the current installation manual. Use the 0.5–5 bar operating range.

Specifications

Brand: Jaquar
Collection: Kubix Prime
Product code: SPJ-CHR-35429PM
Finish: Chrome
Type: Bath SpoutSource ↗
Material: Brass components (manufacturer composition table)Source ↗
Flow rate: 17.18 litres/min at 3 barSource ↗
Operating pressure: 0.5–5 barSource ↗
Operating water pressure: 0.5–5 barSource ↗
Installation: Wall mountedSource ↗
Inlet connection: ½ inch BSPSource ↗
Regulated versions: G 2.5; GA 6; GB 8; GC 13; GD 3.8; GE 1.3 litres/min at 3 bar (order suffix required)Source ↗
Flow variation: Manufacturer allows 10% variationSource ↗
Water-tightness test: 16 bar (manufacturer reports pass)Source ↗
Pressure-resistance test: 25 bar (manufacturer reports pass)Source ↗
Chrome plating: Nickel 10 µm; chromium 0.3 µm (manufacturer-listed)Source ↗
Salt-spray test: 500 hours+ (manufacturer reports validated)Source ↗
Coating adhesion: Pass (manufacturer-reported test)Source ↗
Spout reach: 183 mm (as drawn)Source ↗
Backplate size: 60 × 60 mmSource ↗
Aerator thread: M24 × 1Source ↗

Manufacturer specification ↗Product source ↗

Delivery & installation

For Chrome, our showroom team can help with delivery dates, access requirements and installation planning.

Open technical drawing →

Compare this product →

SPECIFICATION & INSTALLATION

Drawings & technical files.

Keep the details for your selected product close to hand, from choosing a finish to planning the fitting.

Selected productSPJ-CHR-35429PM

Technical data sheetPDF · selected product code

For installation, use the manufacturer’s drawing and instructions. Check that the product code matches your selection.
