Jaquar Midlands by EWL · Product sheet
£123inc. VATRRP £163
The Artize Confluence In-Wall Joystick 2-way Diverter Body comes in Chrome. This concealed body is fitted behind the wall and paired with compatible exposed controls.
Warranty varies by product, finish and component. Delivery conditions apply.
An Artize Confluence in-wall joystick diverter body for bath and shower, with brass components and ½ inch BSP hot/cold inlets. The exact sheet recommends 1–5 bar and lists 32.28 litres/min at 3 bar.
Confirm supplied components for CNF-CHR-69065C with the showroom before ordering.

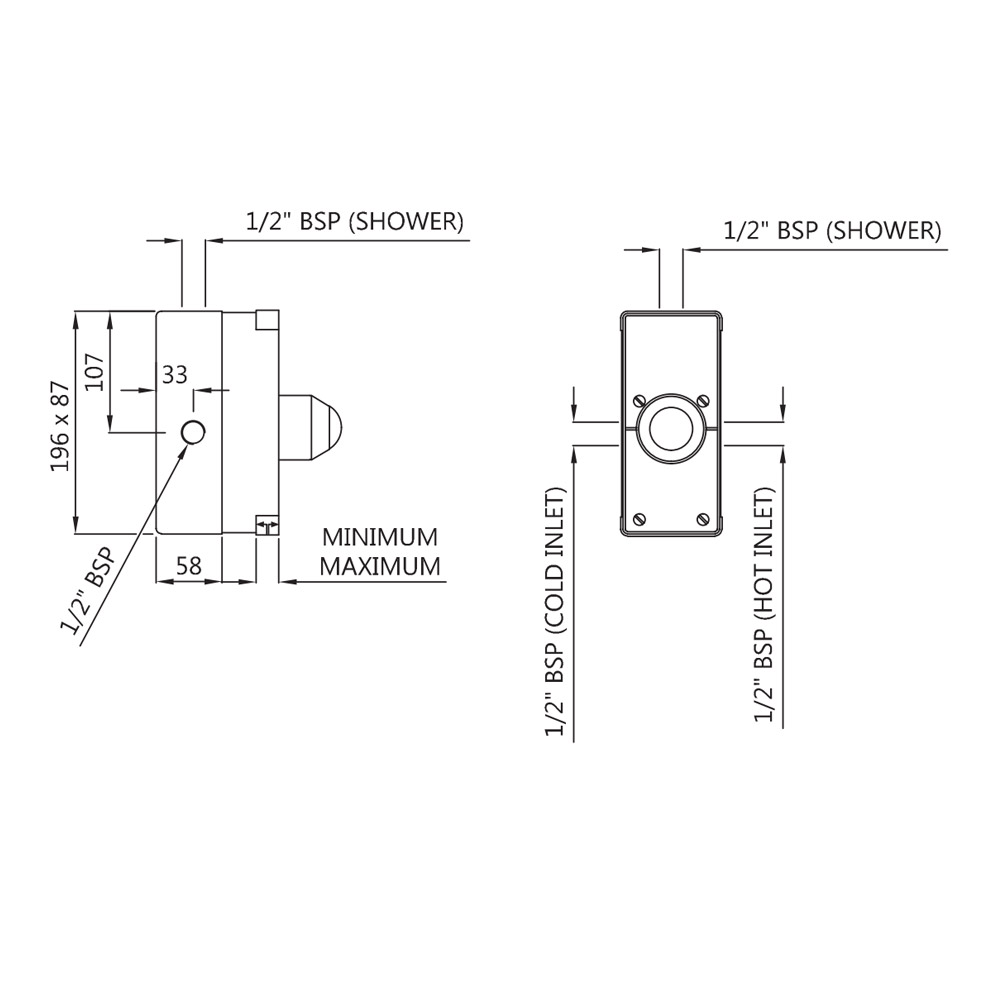

Confirm the matching UK exposed waterfall-filler kit and separately supplied parts before ordering. Plan service access and obtain the numeric finished-wall settings: the drawing marks minimum and maximum without values. The retailer’s 192 mm assembly projection does not describe this body. Cartridge approval and in-house endurance statements do not establish whole-product approval or promised service life.
For Chrome, our showroom team can help with delivery dates, access requirements and installation planning.
Open technical drawing →SPECIFICATION & INSTALLATION
Keep the details for your selected product close to hand, from choosing a finish to planning the fitting.
Selected productCNF-CHR-69065C
For installation, use the manufacturer’s drawing and instructions. Check that the product code matches your selection.
