Jaquar Midlands by EWL · Product sheet

Ornamix Prime Extended Mono Basin Mixer

Jaquar

Ornamix Prime Extended Mono Basin Mixer

£128inc. VATRRP £170

Chrome · ORP-CHR-10005BPM

Size266 mm high · 150 mm spout reach

Technical drawings

Finish / option

The Jaquar Ornamix Prime Extended Mono Basin Mixer comes in Chrome. The taller form gives more height above the basin mounting surface.

Up to 10-year warrantyCover varies by product Delivery informationUK mainland: 48-hour delivery from the next working day (weekends are not counted)Returns & supportHelp with your order Showroom advice0121 663 6878

Warranty varies by product, finish and component. Delivery conditions apply.

Compare See it in the showroom

For help choosing the right finish and specification, contact our Birmingham showroom.

Call 0121 663 6878 Email the showroom

Description

An extended Ornamix Prime mono basin mixer in chrome, with a temperature-limiter cartridge. Its taller form provides room beside a countertop basin.

Features & specifications

Features

Type: Tall Basin Mixer Tap
Material: Brass components (manufacturer-listed)
Installation: Deck mounted
Cartridge features: Temperature limiter and brass spindle (manufacturer-listed)

Confirm supplied components for ORP-CHR-10005BPM with the showroom before ordering.

Installation & compatibility

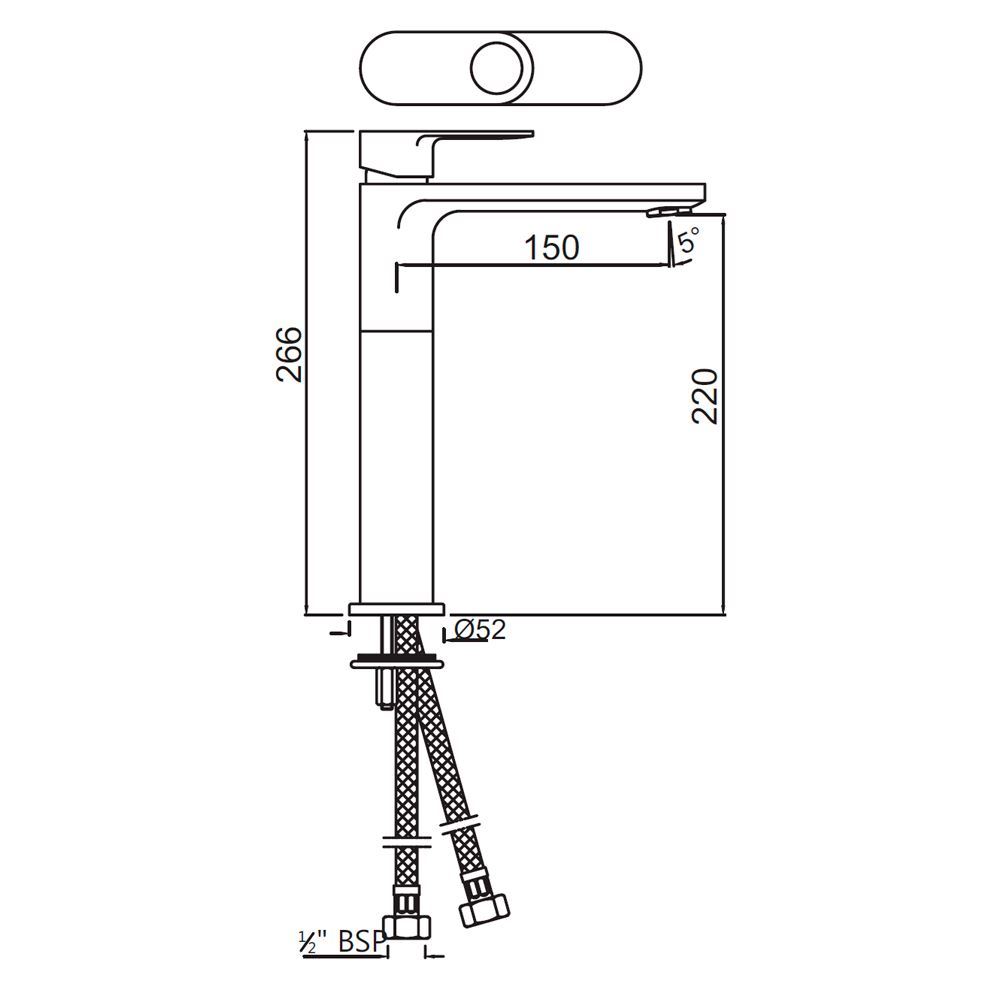

Match the tap position to the basin rim and outlet. The drawing marks 266 mm overall height, 220 mm spout height and 150 mm reach. Check the 52 mm base, mounting-hole requirements and access to the braided supply hoses.

Specifications

Brand: Jaquar
Collection: Ornamix Prime
Product code: ORP-CHR-10005BPM
Finish: Chrome
Type: Tall Basin Mixer Tap
Material: Brass components (manufacturer-listed)Source ↗
Installation: Deck mountedSource ↗
Tap holes: 1Source ↗
Height: 266 mm (as drawn)Source ↗
Spout reach: 150 mm (as drawn)Source ↗
Operating pressure: 0.5–5 barSource ↗
Flow rate: 16.64 litres/min at 3 barSource ↗
Operating water pressure: 0.5–5 barSource ↗
Connection: Braided hoses, 1/2” FIPSource ↗
Aerator thread: 24 × 1Source ↗
Spout height: 220 mm (as drawn)Source ↗
Base diameter: 52 mmSource ↗
Cartridge features: Temperature limiter and brass spindle (manufacturer-listed)Source ↗
Hose pressure rating: 10 bar withstand pressure (manufacturer-listed)Source ↗
Regulated versions: G 2.5; GA 6; GB 8; GC 13; GD 3.8; GE 1.3 litres/min at 3 bar (order suffix required)Source ↗
Flow variation: 10% variation may occur (manufacturer disclaimer)Source ↗
Water-tightness test: 16 bar (manufacturer reports pass)Source ↗
Pressure-resistance test: 25 bar (manufacturer reports pass)Source ↗
Chrome plating: Nickel 10.0 µm; chromium 0.3 µm (manufacturer specification)Source ↗
Salt spray test: 500 hours (manufacturer reports validated)Source ↗
Adhesion test: Pass (manufacturer sheet)Source ↗

Manufacturer specification ↗Product source ↗

Delivery & installation

For Chrome, our showroom team can help with delivery dates, access requirements and installation planning.

Open technical drawing →

Compare this product →

SPECIFICATION & INSTALLATION

Drawings & technical files.

Keep the details for your selected product close to hand, from choosing a finish to planning the fitting.

Selected productORP-CHR-10005BPM

Technical data sheetPDF · selected product code

For installation, use the manufacturer’s drawing and instructions. Check that the product code matches your selection.
