Jaquar Midlands by EWL · Product sheet

Kubix Prime Extended Mono Basin Mixer

Jaquar

Kubix Prime Tall Basin Mixer

£165inc. VATRRP £220

Chrome · KUP-CHR-35005BPM

Size267 mm high · 152 mm spout reach · 217 mm outlet height

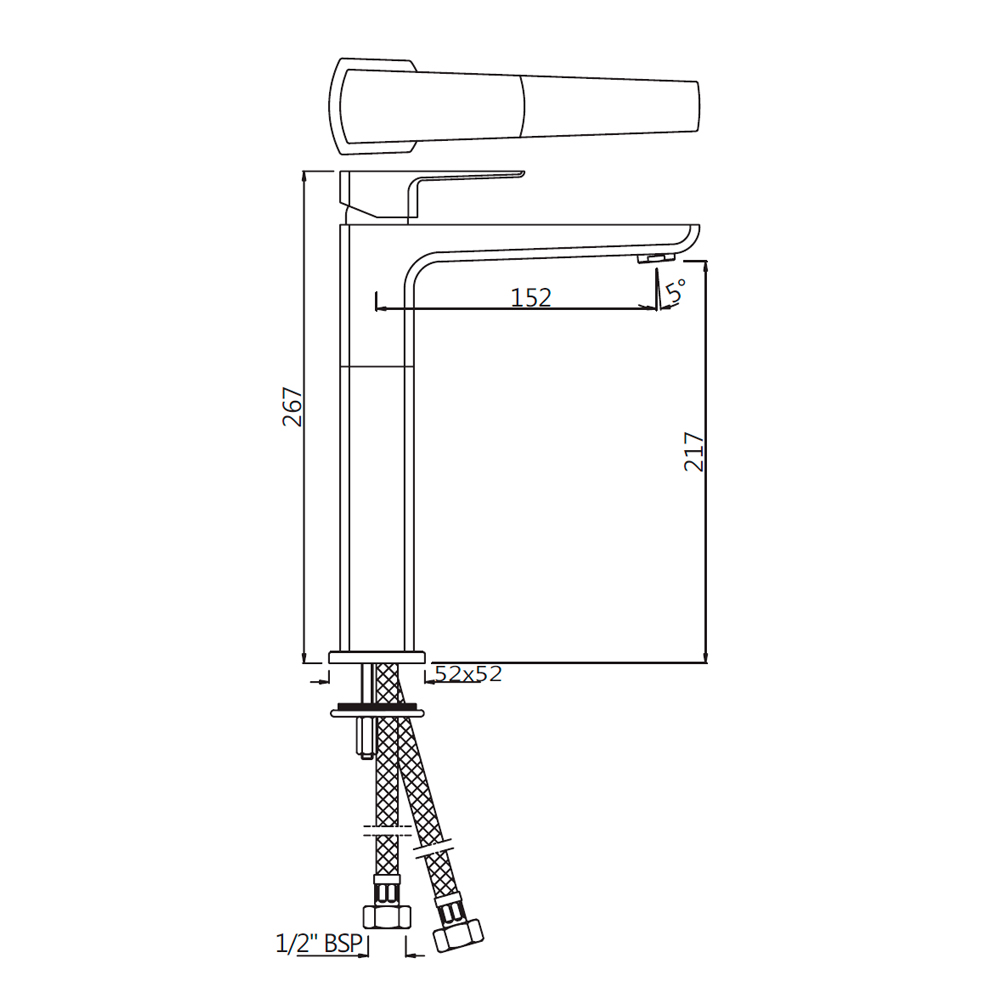

Technical drawings

Finish / option

The Jaquar Kubix Prime Extended Mono Basin Mixer comes in Chrome. The taller form gives more height above the basin mounting surface.

Up to 10-year warrantyCover varies by product Delivery informationUK mainland: 48-hour delivery from the next working day (weekends are not counted)Returns & supportHelp with your order Showroom advice0121 663 6878

Warranty varies by product, finish and component. Delivery conditions apply.

Compare See it in the showroom

For help choosing the right finish and specification, contact our Birmingham showroom.

Call 0121 663 6878 Email the showroom

Description

A little more height. A beautifully simple silhouette. Kubix Prime pairs a slender square body with a straight spout, bringing a calm, architectural feel to a countertop basin. One lever keeps everyday adjustment straightforward.

Features & specifications

Features

Type: Tall Basin Mixer Tap
Material: Brass components (manufacturer composition table)
Installation: Deck mounted
Cartridge features: Temperature limiter and brass spindle

Confirm supplied components for KUP-CHR-35005BPM with the showroom before ordering.

Installation & compatibility

Check the spout position against your basin. Confirm the waste and connection requirements for this exact mixer before installation.

Specifications

Brand: Jaquar
Collection: Kubix Prime
Product code: KUP-CHR-35005BPM
Finish: Chrome
Type: Tall Basin Mixer Tap
Material: Brass components (manufacturer composition table)Source ↗
Height: 267 mmSource ↗
Spout reach: 152 mm (as drawn)Source ↗
Flow rate: 13.07 litres/min at 3 barSource ↗
Operating pressure: 0.5–5 barSource ↗
Connection: Braided hoses, 1/2” FIPSource ↗
Operating water pressure: 0.5–5 barSource ↗
Aerator thread: M20 × 1Source ↗
Installation: Deck mountedSource ↗
Tap holes: 1Source ↗
Spout height: 217 mm (as drawn)Source ↗
Base size: 52 × 52 mmSource ↗
Cartridge features: Temperature limiter and brass spindleSource ↗
Braided-hose test pressure: 10 bar (manufacturer-listed withstand pressure)Source ↗
Cartridge endurance test: 210,000 cycles to EN 817 in-house; standard reference 70,000 (manufacturer-listed)Source ↗
Cartridge on/off test: 1,050,000 cycles in-house (manufacturer-listed)Source ↗
Regulated versions: G 2.5; GA 6; GB 8; GC 13; GD 3.8; GE 1.3 litres/min at 3 bar (order suffix required)Source ↗
Flow variation: Manufacturer allows 10% variationSource ↗
Water-tightness test: 16 bar (manufacturer reports pass)Source ↗
Pressure-resistance test: 25 bar (manufacturer reports pass)Source ↗
Chrome plating: Nickel 10 µm; chromium 0.3 µm (manufacturer-listed)Source ↗
Salt-spray test: 500 hours+ (manufacturer reports validated)Source ↗
Coating adhesion: Pass (manufacturer-reported test)Source ↗

Manufacturer specification ↗Product source ↗

Delivery & installation

For Chrome, our showroom team can help with delivery dates, access requirements and installation planning.

Open technical drawing →

Compare this product →

SPECIFICATION & INSTALLATION

Drawings & technical files.

Keep the details for your selected product close to hand, from choosing a finish to planning the fitting.

Selected productKUP-CHR-35005BPM

Technical data sheetPDF · selected product code

For installation, use the manufacturer’s drawing and instructions. Check that the product code matches your selection.
