Navia Three-way Thermostatic Shower Kit

£323inc. VATRRP £430

Chrome · NAV-CHR-515893K

SizeNot yet confirmed

Finish / option

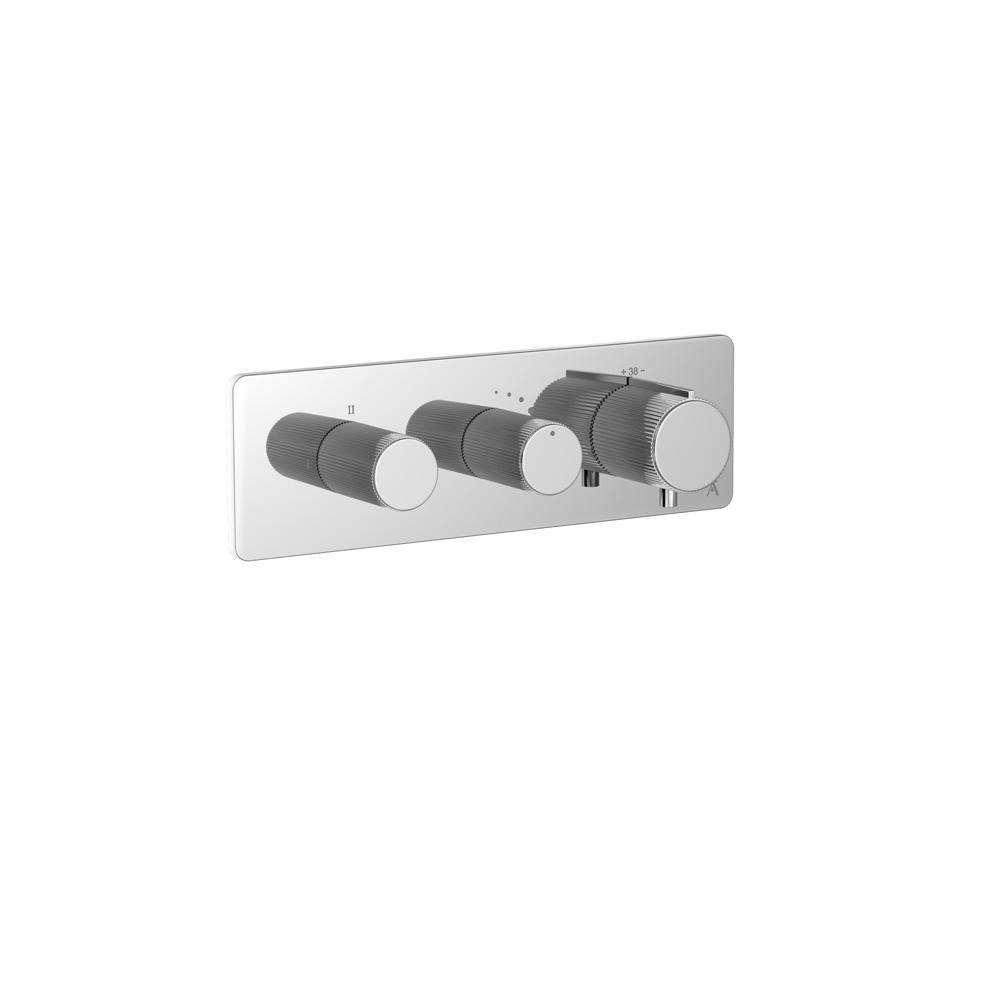

The Artize Navia Thermostatic Shower Mixer 3-way, Rectangular Flange Trim Kit comes in Chrome. This is the visible control trim for the shower system.

Up to 10-year warrantyCover varies by product Free UK deliveryUK mainland: 48-hour delivery from the next working day (weekends are not counted)Returns & supportHelp with your order Showroom advice0121 663 6878

Warranty varies by product, finish and component. Delivery conditions apply.

Compare See it in the showroom

For help choosing the right finish and specification, contact our Birmingham showroom.

Call 0121 663 6878 Email the showroom

Description

Three controls sit on a 320 × 100 mm rectangular plate. This is the exposed thermostatic shower kit with a three-way diverter; the manufacturer lists the ALA-509893 in-wall body separately.

Features & specifications

Features

Exposed Part Kit of Thermostatic Shower Mixer with 3- way diverter, Rectangular Flange (Compatible In-wall Part ALA-509893 is sold separately)

Confirm supplied components for NAV-CHR-515893K with the showroom before ordering.

Installation & compatibility

Confirm whether your order includes the in-wall body or is trim only. Use the matching installation manual to establish wall build-up, control projection, pipework and service access.

Specifications

Brand: Artize
Collection: Navia
Product code: NAV-CHR-515893K
Finish: Chrome
Type: Navia three-way thermostatic shower exposed kitSource ↗
Material: Brass componentsSource ↗
Installation: Concealed wall installation; exposed trim kitSource ↗
Operating water pressure: 1.0–5 barSource ↗
Separate in-wall part: ALA-509893 (sold separately)Source ↗
Backplate width: 320 mmSource ↗
Backplate height: 100 mmSource ↗
Control projection datum: 70 mm (as drawn)Source ↗
Flange-to-inlet setting datum: 80–100 mm (as drawn)Source ↗
Illustrated in-wall connection: ¾ inch BSP (body shown in drawing)Source ↗
Temperature marking: 38° marked on controlSource ↗
Chrome plating: Nickel 13 µm; chromium 0.40 µm (manufacturer-listed)Source ↗
Salt-spray test: 700 hours+ (manufacturer reports validated)Source ↗
Coating adhesion: Pass (manufacturer-reported test)Source ↗

Manufacturer specification ↗Product source ↗

Delivery & installation

For Chrome, our showroom team can help with delivery dates, access requirements and installation planning.

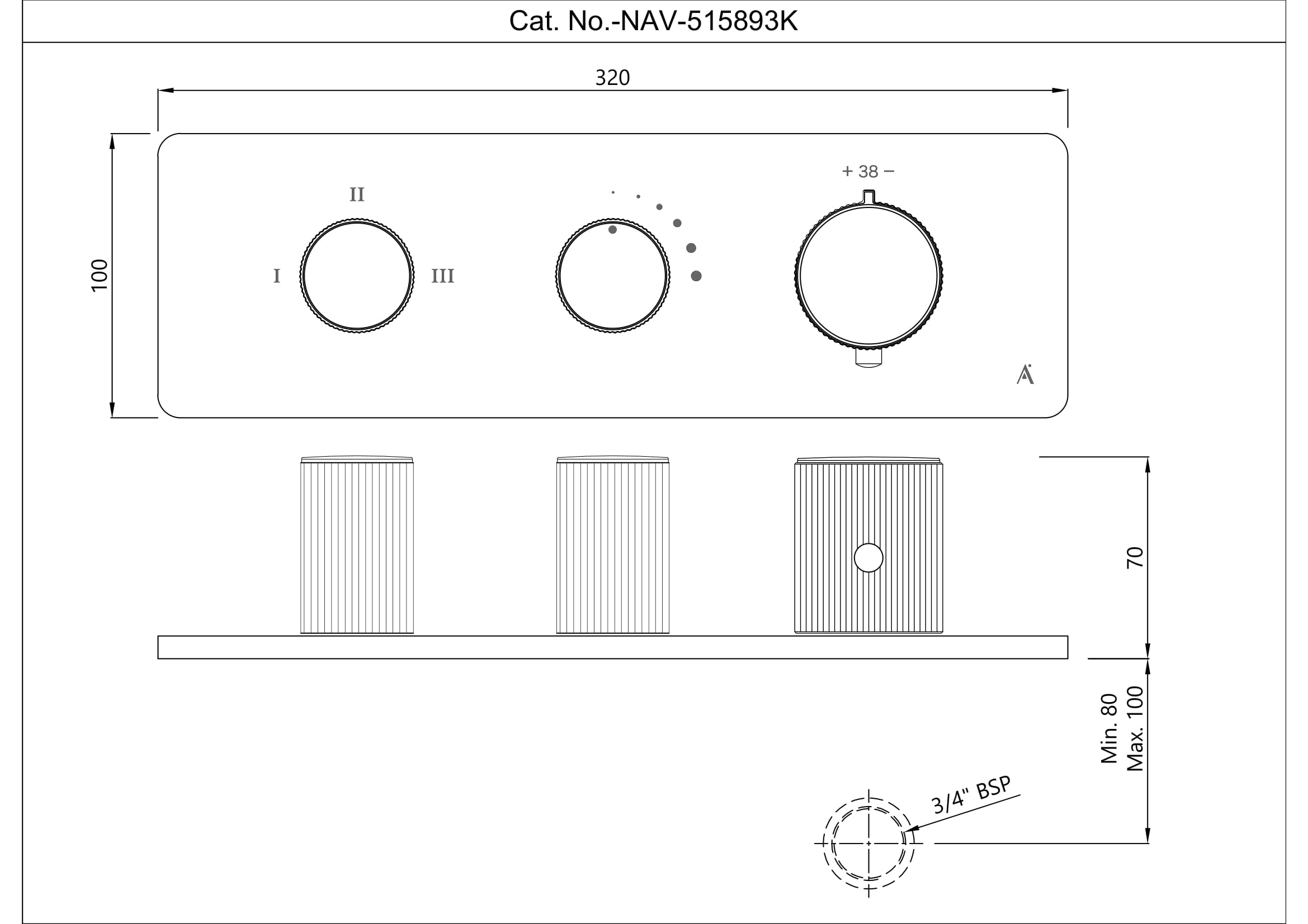

Open technical drawing →

Compare this product →

SPECIFICATION & INSTALLATION

Drawings & technical files.

Keep the details for your selected product close to hand, from choosing a finish to planning the fitting.

Selected productNAV-CHR-515893K

Dimension drawingPDF · model drawing Technical data sheetPDF · selected product code

For installation, use the manufacturer’s drawing and instructions. Check that the product code matches your selection.
