QLOUD Two-outlet Touch Shower Kit

Jaquar

QLOUD Two-outlet Touch Shower Kit

£639inc. VATRRP £851

Chrome · QLD-CHR-309681KRH

SizeNot yet confirmed
Technical drawings

Finish / option

The Jaquar QLOUD Touch Shower System 2-outlet Trim Kit comes in Chrome. This is the visible control trim for the shower system.

Up to 10-year warrantyCover varies by productFree UK deliveryUK mainland: 48-hour delivery from the next working day (weekends are not counted)Returns & supportHelp with your orderShowroom advice0121 663 6878

Warranty varies by product, finish and component. Delivery conditions apply.

CompareSee it in the showroom

Description

A QLOUD exposed touch-shower kit for rain and hand shower connections, with two 280 × 95 mm plates. The compatible QLD-309661C or QLD-309661CE in-wall part is sold separately. The sheet specifies 1–6 bar dynamic pressure, with 3 bar recommended.

Features & specifications

Features

  • Exposed Part Kit of QLOUD Touch Shower System with 2 outlets for connection to Rain & Hand Shower (Compatible In-wall Part QLD-309661C or QLD-309661CE are sold separately)

Confirm supplied components for QLD-CHR-309681KRH with the showroom before ordering.

Installation & compatibility

Confirm the current UK power adapter and supplied pack before ordering: the sheet lists a D-type plug and a separate in-wall part. Plan accessible positions for the valve box, adapter, filter and cables with the installer, using the installation manual. IP53 applies to the valve box and IP65 to the touch panel. The 44 litres/min figure is combined free flow through two outlets; fitted heads and supplies determine actual flow.

Specifications

Brand
Jaquar
Collection
Qloud
Product code
QLD-CHR-309681KRH
Finish
Chrome
Type
QLOUD exposed touch-shower kit with two outletsSource ↗
Material
Brass componentsSource ↗
Dynamic operating pressure
1–6 barSource ↗
Separate in-wall parts
QLD-309661C or QLD-309661CE (sold separately)Source ↗
Outlet functions
Rain shower and hand showerSource ↗
Plate width
280 mm eachSource ↗
Plate height
95 mm eachSource ↗
Control adjustment
Flow rate, temperature and two outletsSource ↗
Recommended dynamic pressure
3 barSource ↗
Water inlet temperature
5–65 °CSource ↗
Single-outlet free flow
33 litres/min at 3 bar (valve box + thermostat)Source ↗
Two-outlet free flow
44 litres/min total at 3 bar (valve box + thermostat)Source ↗
Power-adapter input
100–240 V AC; 0.4 A; 50/60 HzSource ↗
Power-adapter output
6 V DC; 0.6 A; 3.6 W maximumSource ↗
Listed plug type
3-pin D-type (UK supply confirmation required)Source ↗
Valve-box ingress rating
IP53 (manufacturer-listed)Source ↗
Touch-panel ingress rating
IP65 (manufacturer-listed)Source ↗
Thermostatic-body connections
¾ inch BSP / 20 mm inlet and outletSource ↗
Solenoid-box inlet
¾ inch BSP / 20 mmSource ↗
Solenoid-box outlets
½ inch BSP / 15 mmSource ↗
Ambient working temperature
5–60 °CSource ↗
Working relative humidity
30–95%Source ↗
Factory automatic shut-off
20 minutesSource ↗
Simultaneous outlets
Maximum 2Source ↗
Static pressure test
Greater than 16 bar (manufacturer-listed)Source ↗
CPU connections
1 inlet and 2 outletsSource ↗
Control-panel to CPU cable
1 × 3 mSource ↗
Adapter to control-panel cable
1 × 3 mSource ↗
Battery box
With connecting cable to touch panelSource ↗
Braided hoses
2 × 800 mm / 15 mm; 1 × 800 mm / 20 mmSource ↗
Filter
1 suppliedSource ↗
Clamp and screws
1 setSource ↗
Thermostatic wall flange
Listed in exposed kitSource ↗
Touch-panel wall flange
Panel for two outlets and in-wall plastic boxSource ↗
Chrome plating
Nickel 10 µm; chromium 0.3 µm (manufacturer-listed)Source ↗
Salt-spray test
500 hours+ (manufacturer reports validated)Source ↗
Coating adhesion
Pass (manufacturer-reported test)Source ↗
Flow variation
Manufacturer allows 10% variationSource ↗
Manufacturer specification ↗Product source ↗

Delivery & installation

For Chrome, our showroom team can help with delivery dates, access requirements and installation planning.

Open technical drawing →
Compare this product →

SPECIFICATION & INSTALLATION

Drawings & technical files.

Keep the details for your selected product close to hand, from choosing a finish to planning the fitting.

Selected productQLD-CHR-309681KRH

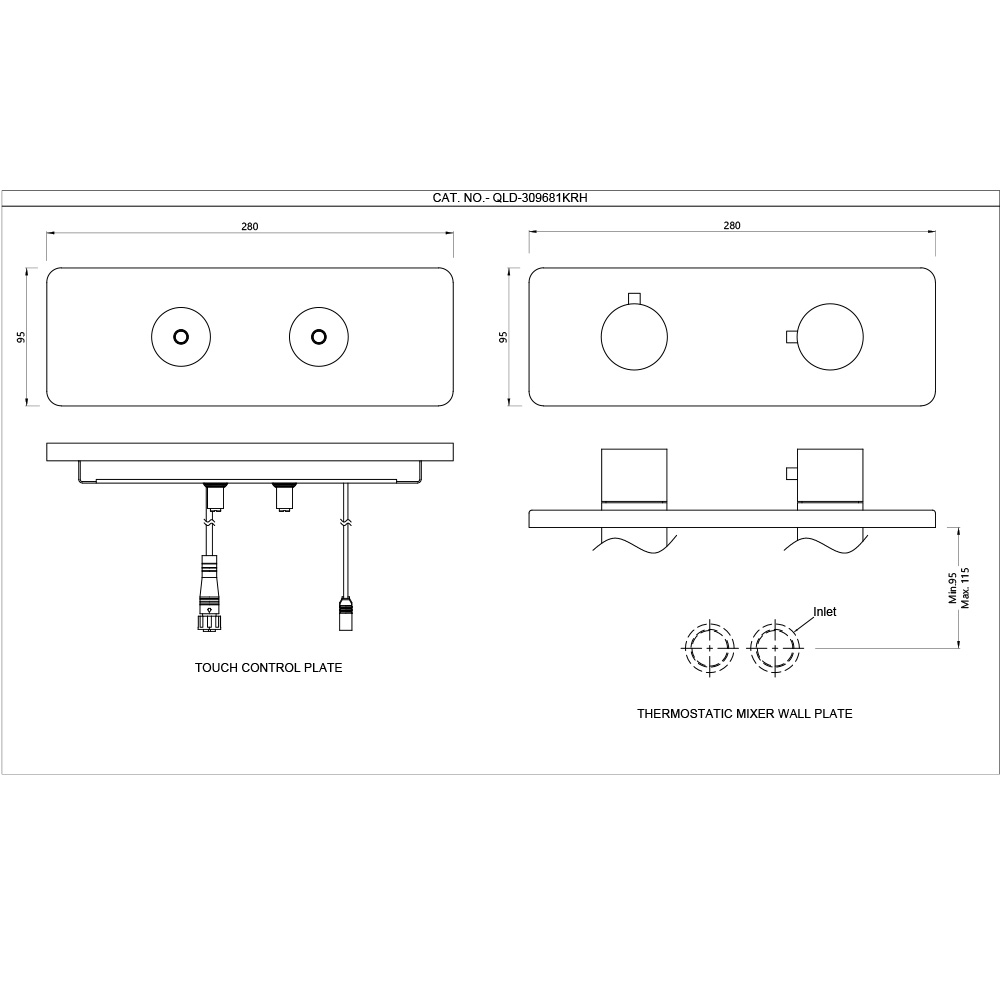

Dimension drawing 1PDF · model drawingDimension drawing 2PDF · selected product code

For installation, use the manufacturer’s drawing and instructions. Check that the product code matches your selection.
