Jaquar Midlands by EWL · Product sheet

Douche Kit

Jaquar

Douche Kit

£31inc. VATRRP £41

Chrome · ALD-CHR-573

SizeNot yet confirmed

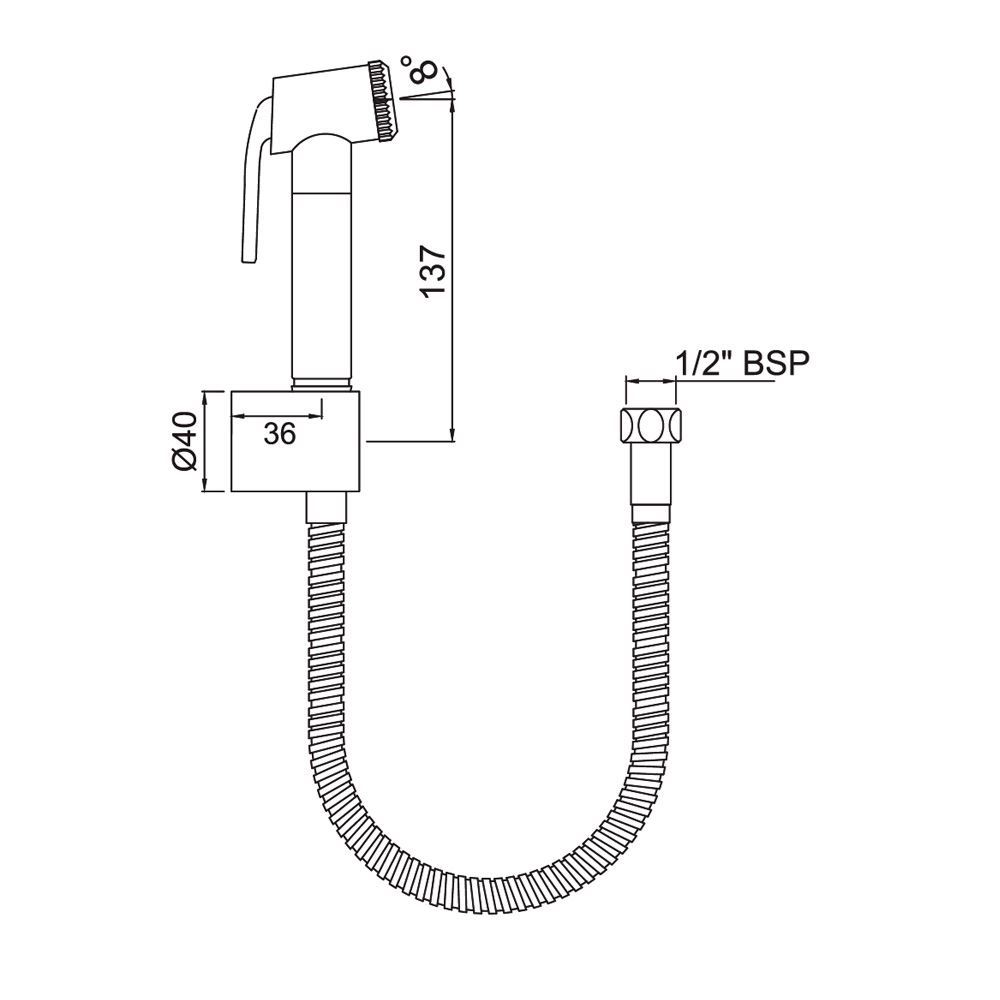

Technical drawings

Finish / option

The Jaquar Douche Kit comes in Chrome. Supplied with Flexible chrome hose, handset and bracket (manufacturer-listed kit).

Up to 10-year warrantyCover varies by productDelivery informationUK mainland: 48-hour delivery from the next working day (weekends are not counted)Returns & supportHelp with your orderShowroom advice0121 663 6878

Warranty varies by product, finish and component. Delivery conditions apply.

CompareSee it in the showroom

Description

An Allied chrome douche kit with a flexible hose, handset and wall bracket. The manufacturer lists both brass and ABS components.

Features & specifications

Features

  • Type: Douche Spray
  • Material: Brass and ABS components

Included

  • Flexible chrome hose, handset and bracket (manufacturer-listed kit)

Installation & compatibility

Confirm the exact supplied UK kit, hose length, compatible control valve and installation instructions. The sheet specifies 1.0–3.0 bar operating pressure. NRV inclusion and the retailer’s 573M wording remain clarification items.

Specifications

Brand
Jaquar
Product code
ALD-CHR-573
Finish
Chrome
Type
Douche Spray
Material
Brass and ABS componentsSource ↗
Flow rate
11.65 litres/min at 3 barSource ↗
Operating pressure
1.0–3.0 barSource ↗
Operating water pressure
1.0–3.0 barSource ↗
Supplied components
Flexible chrome hose, handset and bracket (manufacturer-listed kit)Source ↗
Hose connection
½ inch BSPSource ↗
Bracket diameter
40 mm (as drawn)Source ↗
Regulated versions
GA 6; GB 8; GD 3.8 litres/min at 3 bar (order suffix required)Source ↗
Flow variation
10% variation may occur (manufacturer disclaimer)Source ↗
Water-tightness test
4 bar (manufacturer reports pass)Source ↗
Pressure-resistance test
5 bar (manufacturer reports pass)Source ↗
Chrome plating
Nickel 10.0 µm; chromium 0.3 µm (manufacturer specification)Source ↗
Salt spray test
500 hours (manufacturer reports validated)Source ↗
Adhesion test
Pass (manufacturer sheet)Source ↗
Manufacturer specification ↗Product source ↗

Delivery & installation

For Chrome, our showroom team can help with delivery dates, access requirements and installation planning.

Open technical drawing →
Compare this product →

SPECIFICATION & INSTALLATION

Drawings & technical files.

Keep the details for your selected product close to hand, from choosing a finish to planning the fitting.

Selected productALD-CHR-573

Dimension drawingPDF · model drawingTechnical data sheetPDF · selected product code

For installation, use the manufacturer’s drawing and instructions. Check that the product code matches your selection.
