Jaquar Midlands by EWL · Product sheet

Ornamix Countertop Basin

Jaquar

Ornamix Countertop Basin

£81inc. VATRRP £107

White · ONS-WHT-10901

Size430 × 430 × 130 mm (width × depth × height, datasheet; UK page differs)

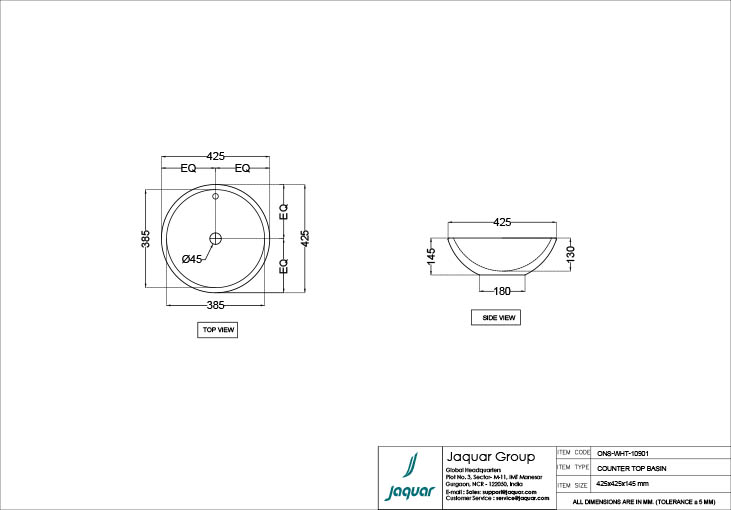

Technical drawings

The Jaquar Ornamix Countertop Basin comes in White. A countertop washbasin sits above the worktop and defines the wash area.

Up to 10-year warrantyCover varies by productDelivery informationUK mainland: 48-hour delivery from the next working day (weekends are not counted)Returns & supportHelp with your orderShowroom advice0121 663 6878

Warranty varies by product, finish and component. Delivery conditions apply.

CompareSee it in the showroom

Description

Counter Top Basin, Size: 425x425x145 mm

Features & specifications

Features

  • Type: Countertop basin
  • Material: Vitreous china (ceramic)

Included

  • overflow cap: ZPS-WHT-9012B

Installation & compatibility

Use the installation drawing to check support, tap position and waste compatibility. Confirm any worktop cut-out before fabrication.

Specifications

Brand
Jaquar
Collection
Ornamix
Product code
ONS-WHT-10901
Finish
White
Type
Countertop basinSource ↗
Choose separately †
Basin waste
Material
Vitreous china (ceramic)Source ↗
Dimension tolerance
±5 mmSource ↗
Manufacturer size
430 × 430 × 130 mm
Basin inner dimensions
385 × 385 × 115 mmSource ↗
Overall size
430 × 430 × 130 mm (width × depth × height, datasheet; UK page differs)Source ↗
Width
430 mm (datasheet)Source ↗
Depth
430 mm (datasheet)Source ↗
Height
130 mm (datasheet)Source ↗
Net weight
7.5 kgSource ↗
Gross weight
8 kgSource ↗
Packaging dimensions
435 × 435 × 150 mm (manufacturer-listed)Source ↗
Outlet
VerticalSource ↗
Waste hole diameter
45 mm (+2/−1 mm)Source ↗
Shape
RoundSource ↗
Overflow
PresentSource ↗
Supplied overflow cap
ZPS-WHT-9012BSource ↗
Care
Use a soft damp cloth or sponge, rinse promptly after cleaning and avoid abrasive brushes or scouring pads.Source ↗

† Retailer-listed detail. Confirm against the drawing for your selected product code.

Manufacturer specification ↗Product source ↗

Delivery & installation

For White, our showroom team can help with delivery dates, access requirements and installation planning.

Open technical drawing →
Compare this product →

SPECIFICATION & INSTALLATION

Drawings & technical files.

Keep the details for your selected product close to hand, from choosing a finish to planning the fitting.

Selected productONS-WHT-10901

Dimension drawingPDF · selected product codeTechnical data sheetPDF · selected product code

For installation, use the manufacturer’s drawing and instructions. Check that the product code matches your selection.
