Jaquar Midlands by EWL · Product sheet

Jaquar

Countertop basin · JDS-WHT-25943

Name: Countertop basin · JDS-WHT-25943 — White
Brand: Jaquar
SKU: JDS-WHT-25943
Price: 179.00 GBP
Availability: InStock

£179inc. VATRRP £238

White · JDS-WHT-25943

Size640 × 500 × 130 mm

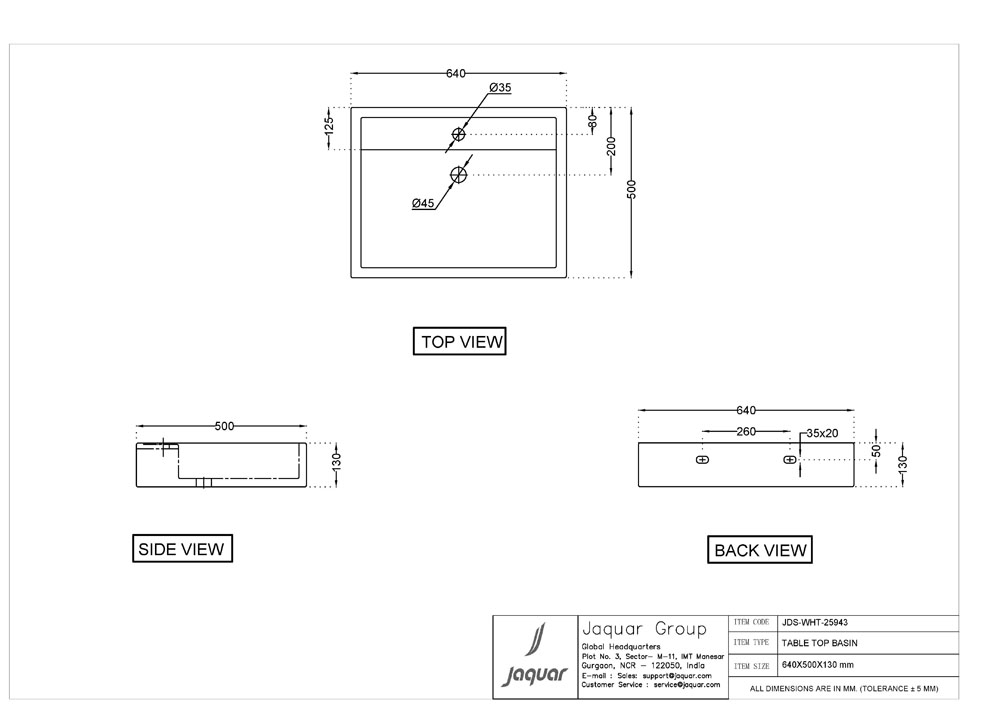

Technical drawings

The Jaquar Countertop Basin comes in White. A countertop washbasin sits above the worktop and defines the wash area.

Up to 10-year warrantyCover varies by product Delivery informationUK mainland: 48-hour delivery from the next working day (weekends are not counted)Returns & supportHelp with your order Showroom advice0121 663 6878

Warranty varies by product, finish and component. Delivery conditions apply.

Compare See it in the showroom

For help choosing the right finish and specification, contact our Birmingham showroom.

Call 0121 663 6878 Email the showroom

Description

Counter Top Basin Size: 640x500x130 mm

Features & specifications

Features

Type: Countertop basin
Material: Vitreous china (ceramic)

Confirm supplied components for JDS-WHT-25943 with the showroom before ordering.

Installation & compatibility

Use the installation drawing to check support, tap position and waste compatibility. Confirm any worktop cut-out before fabrication.

Specifications

Brand: Jaquar
Product code: JDS-WHT-25943
Finish: White
Type: Countertop basinSource ↗
Choose separately †: Basin waste
Material: Vitreous china (ceramic)Source ↗
Tap holes: 1Source ↗
Dimension tolerance: ±5 mmSource ↗
Manufacturer size: 640 × 500 × 130 mmSource ↗
Basin inner dimensions: 580 × 350 × 105 mmSource ↗
Width: 640 mmSource ↗
Height: 130 mmSource ↗
Net weight: 19.8 kgSource ↗
Gross weight: 21.3 kgSource ↗
Packaging dimensions: 650 × 520 × 160 mm (manufacturer-listed)Source ↗
Outlet: VerticalSource ↗
Waste hole diameter: 45 mm (+2/−1 mm)Source ↗
Tap hole diameter: 35 mmSource ↗
Glaze: Anti-germ (manufacturer description)Source ↗
Care: Use a soft damp cloth or sponge; rinse after cleaning. Avoid abrasive brushes and scouring pads.Source ↗

† Retailer-listed detail. Confirm against the drawing for your selected product code.

Manufacturer specification ↗Product source ↗

Delivery & installation

For White, our showroom team can help with delivery dates, access requirements and installation planning.

Open technical drawing →

Compare this product →

SPECIFICATION & INSTALLATION

Drawings & technical files.

Keep the details for your selected product close to hand, from choosing a finish to planning the fitting.

Selected productJDS-WHT-25943

Technical data sheetPDF · selected product code Dimension drawingPDF · selected product code

For installation, use the manufacturer’s drawing and instructions. Check that the product code matches your selection.
