Blush Battery Sensor Basin Tap

Jaquar

Blush Battery Sensor Basin Tap

£207inc. VATRRP £275

Chrome · SNR-CHR-51445PK

Size215 mm high · 135 mm spout reach

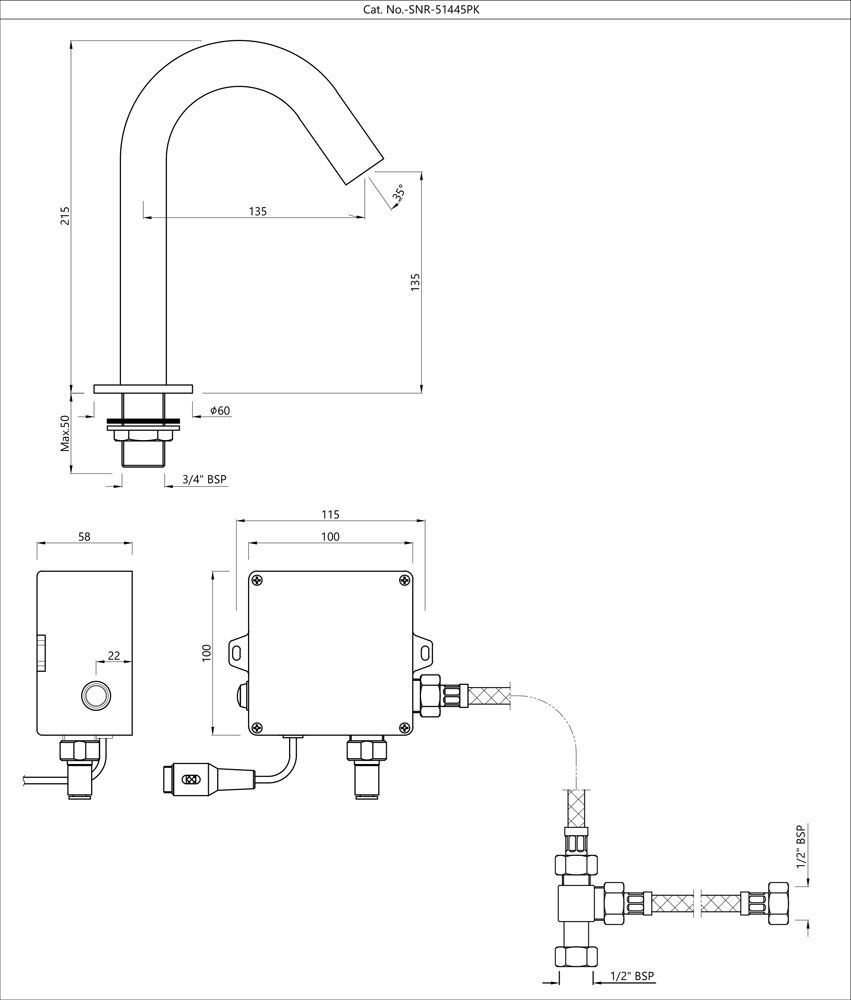

Technical drawings

Finish / option

The Jaquar Blush Deck Mounted Sensor Basin Tap comes in Chrome. Sensor activation allows hands-free use at the basin.

Up to 10-year warrantyCover varies by productDelivery informationUK mainland: 48-hour delivery from the next working day (weekends are not counted)Returns & supportHelp with your orderShowroom advice0121 663 6878

Warranty varies by product, finish and component. Delivery conditions apply.

CompareSee it in the showroom

Description

A touch-free basin tap with a control box and pre-mixed water supply kit. The spout is 215 mm high with 135 mm reach and outlet height; a 6 V battery supply uses four AA cells.

Features & specifications

Features

  • Type: Blush deck-mounted battery sensor faucet
  • Material: Brass components
  • Installation: Deck-mounted sensor tap

Included

  • control and mixing kit: Control box and pre-mixed water supply kit

Installation & compatibility

Plan accessible space for the control box, batteries and mixing kit. The supplied kit accepts separate hot and cold feeds; confirm temperature adjustment, safeguards, battery inclusion and deck capacity from the current installation manual.

Specifications

Brand
Jaquar
Product code
SNR-CHR-51445PK
Finish
Chrome
Type
Blush deck-mounted battery sensor faucetSource ↗
Material
Brass componentsSource ↗
Installation
Deck-mounted sensor tapSource ↗
Operating water pressure
1.0–5.0 barSource ↗
Flow rate
9.50 litres/min at 3 barSource ↗
Water supply
Hot and cold; two inletsSource ↗
Power supply
6 V battery supply: four 1.5 V AA cellsSource ↗
Overall height
215 mmSource ↗
Spout outlet height
135 mmSource ↗
Spout reach
135 mmSource ↗
Base diameter
60 mmSource ↗
Below-deck fixing datum
Maximum 50 mm (as drawn)Source ↗
Outlet angle
45° (as drawn)Source ↗
Control-box drawing size
115 × 100 × 58 mmSource ↗
Control-box fixing centres
100 × 100 mmSource ↗
Supplied control and mixing kit
Control box and pre-mixed water supply kitSource ↗
Inlet water connection
½ inch BSP / 15 mmSource ↗
Tap-tail connection
¾ inch BSP (as drawn)Source ↗
Maximum inlet water temperature
65 °C (manufacturer-listed)Source ↗
Solenoid voltage
6 V DCSource ↗
Solenoid operation
Bi-stable pulse controlledSource ↗
Solenoid operating pressure
1–5 barSource ↗
Control-box ingress protection
IP65Source ↗
Sensor-eye ingress protection
IP67Source ↗
Detection range
100–300 mm; default 150–180 mmSource ↗
Electronic adjustment
Detection range only; red button on control boxSource ↗
Aerator thread
M16.5 × 1Source ↗
Aerator approval statement
WRAS and ACS approved aerator (manufacturer-listed)Source ↗
Chrome plating
Nickel 10 µm; chromium 0.3 µm (manufacturer-listed)Source ↗
Salt-spray test
500 hours+ (manufacturer reports validated)Source ↗
Coating adhesion
Pass (manufacturer-reported test)Source ↗
Flow variation
Manufacturer allows 10% variationSource ↗
Manufacturer specification ↗Product source ↗

Delivery & installation

For Chrome, our showroom team can help with delivery dates, access requirements and installation planning.

Open technical drawing →
Compare this product →

SPECIFICATION & INSTALLATION

Drawings & technical files.

Keep the details for your selected product close to hand, from choosing a finish to planning the fitting.

Selected productSNR-CHR-51445PK

Technical data sheetPDF · selected product code

For installation, use the manufacturer’s drawing and instructions. Check that the product code matches your selection.
