Jaquar Midlands by EWL · Product sheet

Florentine Prime Bath Spout

Jaquar

Florentine Prime Bath Spout

£42inc. VATRRP £55

Chrome · SPJ-CHR-5463PM

Size180 mm spout reach

Technical drawings

Finish / option

The Jaquar Florentine Prime Bath Spout comes in Chrome. A dedicated spout for filling the bath, with controls selected to suit your installation.

Up to 10-year warrantyCover varies by product Delivery informationUK mainland: 48-hour delivery from the next working day (weekends are not counted)Returns & supportHelp with your order Showroom advice0121 663 6878

Warranty varies by product, finish and component. Delivery conditions apply.

Compare See it in the showroom

For help choosing the right finish and specification, contact our Birmingham showroom.

Call 0121 663 6878 Email the showroom

Description

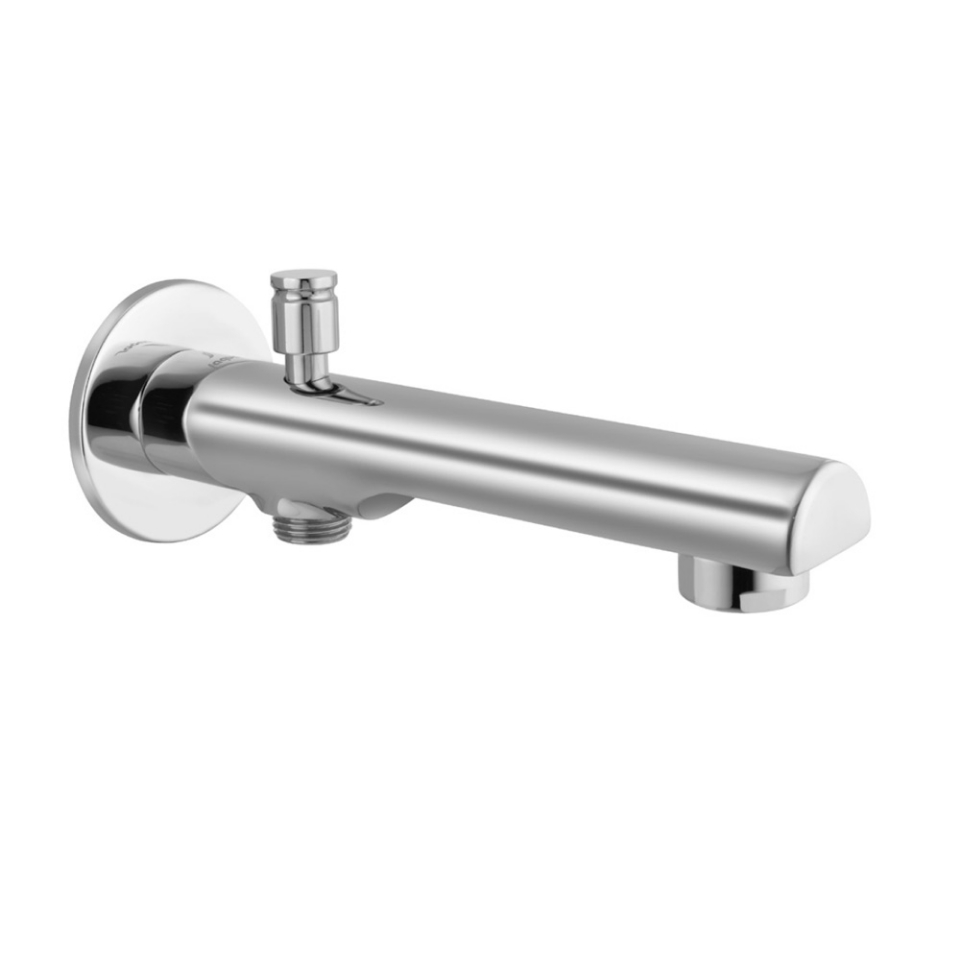

A chrome Florentine Prime bath spout with a diverter and wall flange. A separate underside connection serves the hand-shower arrangement.

Features & specifications

Features

Bath Spout with Diverter 15mm inlet, Florentine Prime

Confirm supplied components for SPJ-CHR-5463PM with the showroom before ordering.

Installation & compatibility

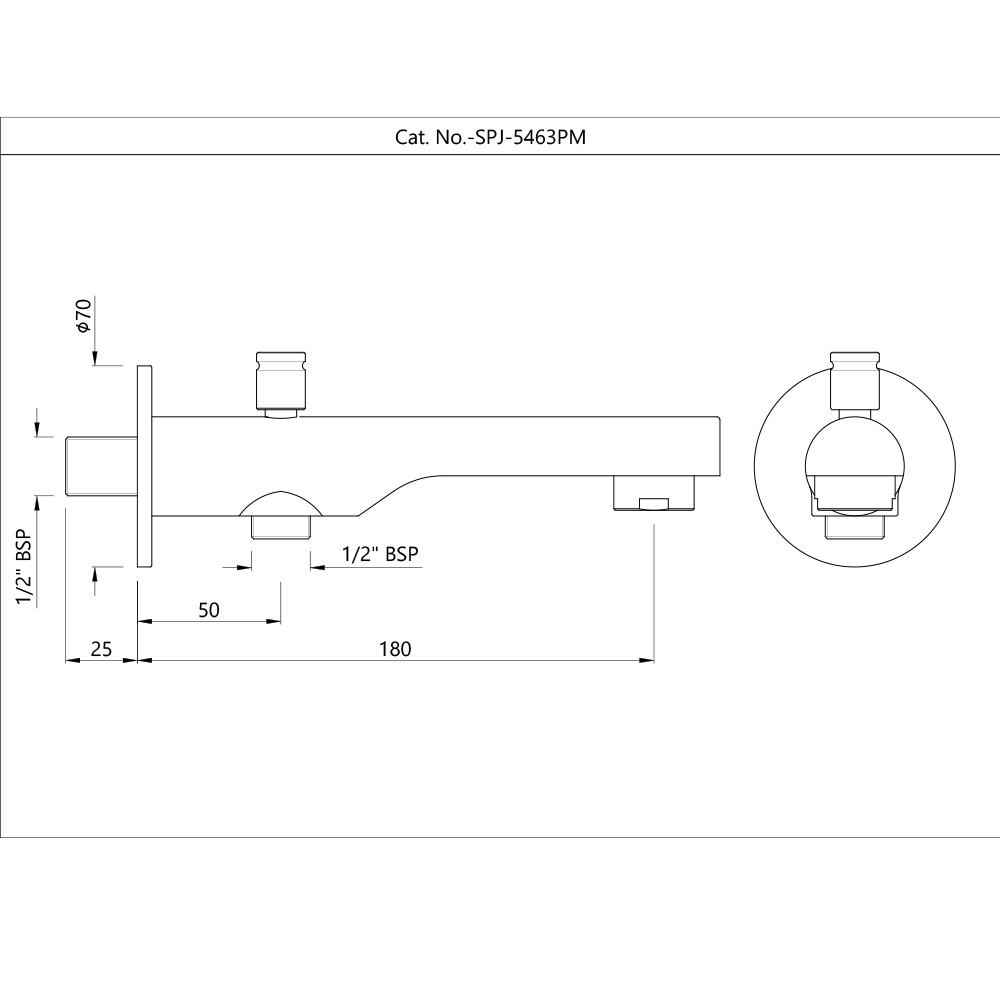

Check the spout position over the bath edge and the compatible controls, hose and handset. The drawing marks 180 mm reach, a 70 mm flange and half-inch BSP connections. Confirm the current UK finish options and supplied accessories.

Specifications

Brand: Jaquar
Collection: Florentine Prime
Product code: SPJ-CHR-5463PM
Finish: Chrome
Type: Bath SpoutSource ↗
Material: Brass components (manufacturer-listed)Source ↗
Operating pressure: 0.5–5 barSource ↗
Operating water pressure: 0.5–5 barSource ↗
Flow rate: 28.71 litres/min at 3 barSource ↗
Spout reach: 180 mm (as drawn)Source ↗
Backplate diameter: 70 mmSource ↗
Inlet connection: ½ inch BSPSource ↗
Hand-shower connection: ½ inch BSPSource ↗
Diverter: Hand-shower diversion (manufacturer description)Source ↗
Regulated versions: G 2.5; GA 6; GB 8; GC 13; GD 3.8; GE 1.3 litres/min at 3 bar (order suffix required)Source ↗
Flow variation: 10% variation may occur (manufacturer disclaimer)Source ↗
Water-tightness test: 16 bar (manufacturer reports pass)Source ↗
Pressure-resistance test: 25 bar (manufacturer reports pass)Source ↗
Chrome plating: Nickel 10.0 µm; chromium 0.3 µm (manufacturer specification)Source ↗
Salt spray test: 500 hours (manufacturer reports validated)Source ↗
Adhesion test: Pass (manufacturer sheet)Source ↗
Size †: 180 mm spout reach

† Retailer-listed detail. Confirm against the drawing for your selected product code.

Manufacturer specification ↗Product source ↗

Delivery & installation

For Chrome, our showroom team can help with delivery dates, access requirements and installation planning.

Open technical drawing →

Compare this product →

SPECIFICATION & INSTALLATION

Drawings & technical files.

Keep the details for your selected product close to hand, from choosing a finish to planning the fitting.

Selected productSPJ-CHR-5463PM

Technical data sheetPDF · selected product code Dimension drawingPDF · model drawing

For installation, use the manufacturer’s drawing and instructions. Check that the product code matches your selection.
