Opal Prime 2-Hole H Type Bath Filler

Jaquar

Opal Prime 2-Hole H Type Bath Filler

£167inc. VATRRP £222

Chrome · OPP-CHR-15223PM

Size142 mm high · 162 mm spout reach

Technical drawings

Finish / option

The Jaquar Opal Prime 2-Hole H Type Bath Filler comes in Chrome. Choose the bath-filling arrangement around your bath and its mounting points.

Up to 10-year warrantyCover varies by product Delivery informationUK mainland: 48-hour delivery from the next working day (weekends are not counted)Returns & supportHelp with your order Showroom advice0121 663 6878

Warranty varies by product, finish and component. Delivery conditions apply.

Compare See it in the showroom

For help choosing the right finish and specification, contact our Birmingham showroom.

Call 0121 663 6878 Email the showroom

Description

An Opal Prime H-type bath filler with two deck-mounted fixing points. The manufacturer lists brass components and a brass cartridge housing and spindle.

Features & specifications

Features

Material: Brass components (manufacturer composition table)
Installation: Deck mounted
Type: H-type bath filler

Confirm supplied components for OPP-CHR-15223PM with the showroom before ordering.

Installation & compatibility

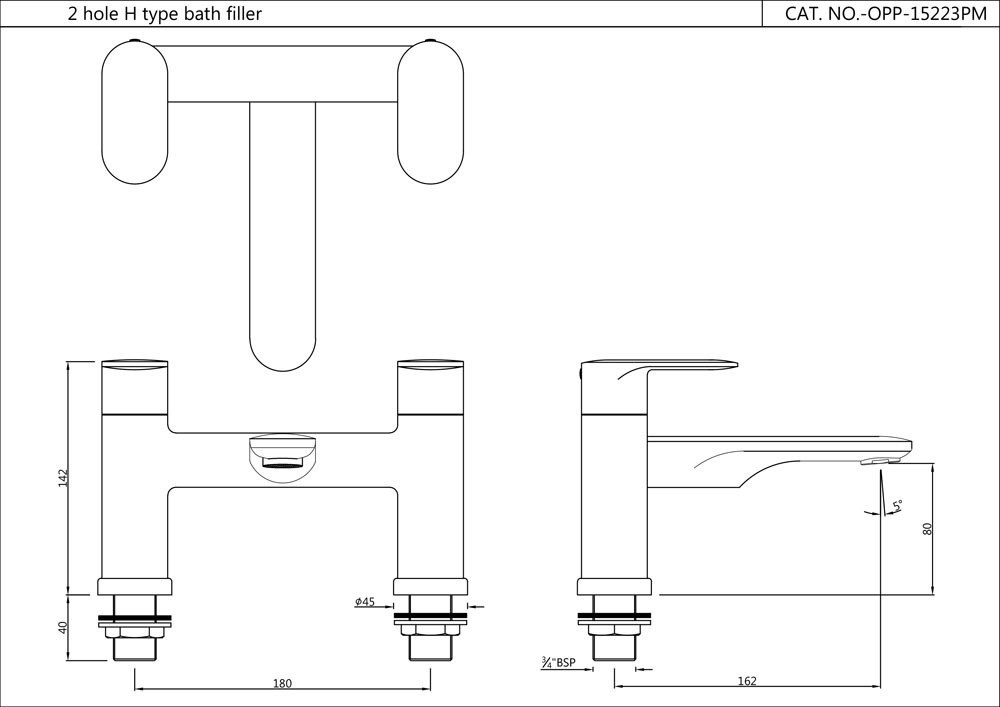

Check the bath deck, mounting holes and access to the three-quarter-inch BSP tails. The drawing marks 180 mm fixing centres, 142 mm height, 80 mm spout height and 162 mm reach. The 45 mm feet do not establish the mounting cutout or permitted deck thickness.

Specifications

Brand: Jaquar
Collection: Opal Prime
Product code: OPP-CHR-15223PM
Finish: Chrome
Material: Brass components (manufacturer composition table)Source ↗
Installation: Deck mountedSource ↗
Tap holes: 2Source ↗
Height: 142 mm (as drawn)Source ↗
Spout reach: 162 mm (as drawn)Source ↗
Operating water pressure: 0.5–5 barSource ↗
Flow rate: 36.44 litres/min at 3 barSource ↗
Aerator thread: 28 × 1Source ↗
Type: H-type bath fillerSource ↗
Spout height: 80 mm (as drawn)Source ↗
Fixing centres: 180 mmSource ↗
Foot diameter: 45 mmSource ↗
Inlet connections: ¾ inch BSPSource ↗
Cartridge components: Brass housing and spindle (manufacturer-listed)Source ↗
Water-tightness test: 16 bar (manufacturer reports pass)Source ↗
Pressure-resistance test: 25 bar (manufacturer reports pass)Source ↗
Flow variation: Manufacturer allows 10% variationSource ↗
Chrome plating: Nickel 10 µm; chromium 0.3 µm (manufacturer-listed)Source ↗
Salt-spray test: 500 hours+ (manufacturer reports validated)Source ↗
Coating adhesion: Pass (manufacturer-reported test)Source ↗

Manufacturer specification ↗Product source ↗

Delivery & installation

For Chrome, our showroom team can help with delivery dates, access requirements and installation planning.

Open technical drawing →

Compare this product →

SPECIFICATION & INSTALLATION

Drawings & technical files.

Keep the details for your selected product close to hand, from choosing a finish to planning the fitting.

Selected productOPP-CHR-15223PM

Dimension drawingPDF · model drawing Technical data sheetPDF · selected product code

For installation, use the manufacturer’s drawing and instructions. Check that the product code matches your selection.
