Jaquar Midlands by EWL · Product sheet

Queen's Prime 2-Hole Bath And Shower Mixer

Jaquar

Queen's Prime 2-Hole Bath And Shower Mixer

£392inc. VATRRP £522

Chrome · QQP-CHR-7271PMHL

SizeNot yet confirmed

Technical drawings

Finish / option

The Jaquar Queen's Prime 2-Hole Bath And Shower Mixer comes in Chrome. Supplied with Standpipes included.

Up to 10-year warrantyCover varies by product Free UK deliveryUK mainland: 48-hour delivery from the next working day (weekends are not counted)Returns & supportHelp with your order Showroom advice0121 663 6878

Warranty varies by product, finish and component. Delivery conditions apply.

Compare See it in the showroom

For help choosing the right finish and specification, contact our Birmingham showroom.

Call 0121 663 6878 Email the showroom

Description

A Queens Prime freestanding bath and shower mixer supplied with standpipes. Its crosshead controls and curved spout bring a traditional form beside the bath. The shower kit is chosen separately.

Features & specifications

Features

Type: Freestanding Bath Shower Mixer
Material: Brass components (manufacturer composition table)
Installation: Freestanding

Included

Standpipes included

Not included

Shower kit

Installation & compatibility

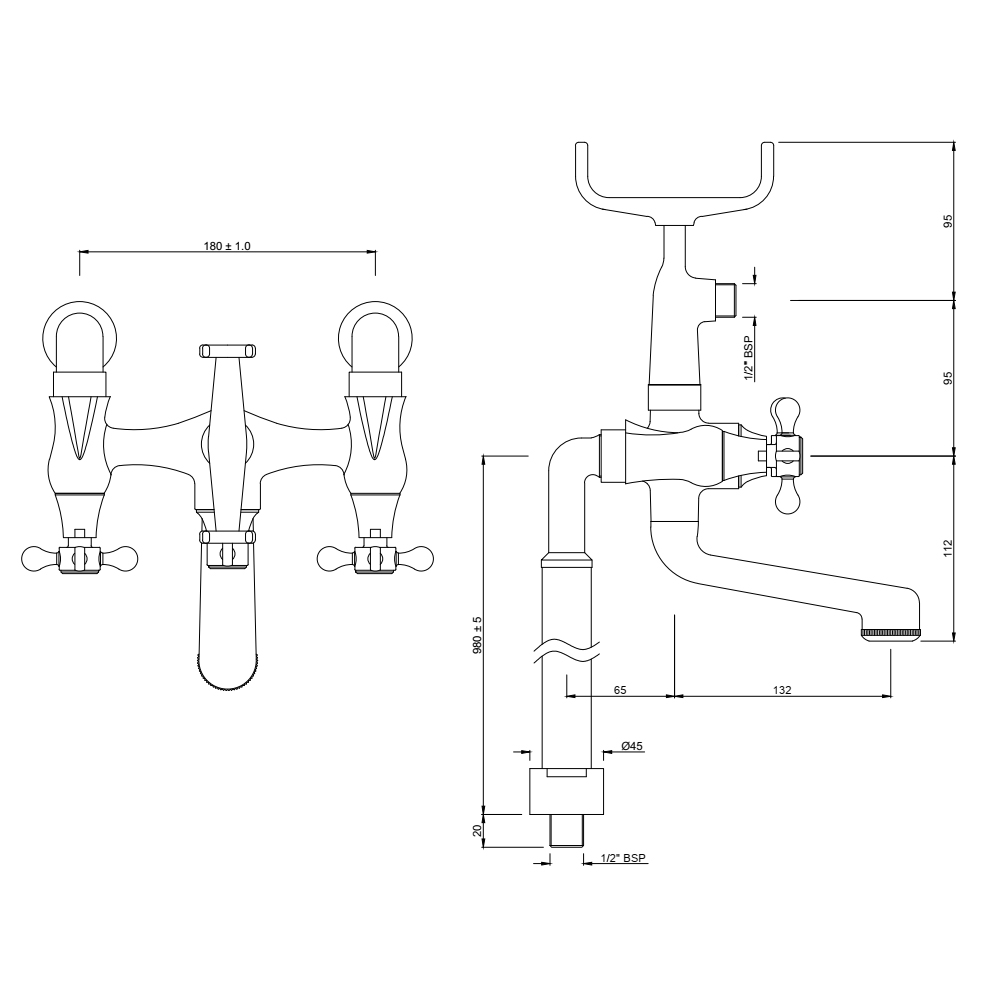

Plan floor connections and fixing access before completing the floor. The drawing marks 180 ±1 mm fixing centres and a 980 ±5 mm standpipe-to-mixer datum, not the complete installed height. Confirm the full projection, mounting instructions and matching shower kit. Use the 0.5–5 bar operating range; regulated versions require the specified order suffix.

Specifications

Brand: Jaquar
Collection: Queen's Prime
Product code: QQP-CHR-7271PMHL
Finish: Chrome
Type: Freestanding Bath Shower Mixer
Material: Brass components (manufacturer composition table)Source ↗
Installation: FreestandingSource ↗
Flow rate: 31.00 litres/min at 3 barSource ↗
Operating pressure: 0.5–5 barSource ↗
Operating water pressure: 0.5–5 barSource ↗
Aerator thread: 24 × 1Source ↗
Tap holes: 2Source ↗
Fixing centres: 180 ±1 mmSource ↗
Standpipe assembly datum: 980 ±5 mm (as drawn)Source ↗
Standpipe diameter: 45 mmSource ↗
Inlet connections: ½ inch BSPSource ↗
Shower connection: ½ inch BSPSource ↗
Supplied parts: Standpipes includedSource ↗
Choose separately: Shower kitSource ↗
Cartridge components: Brass housing and spindleSource ↗
Cartridge endurance test: 500,000 cycles to EN 200 in-house; standard reference 200,000 (manufacturer-listed)Source ↗
Regulated versions: G 2.5; GA 6; GB 8; GC 13; GD 3.8; GE 1.3 litres/min at 3 bar (order suffix required)Source ↗
Flow variation: Manufacturer allows 10% variationSource ↗
Water-tightness test: 16 bar (manufacturer reports pass)Source ↗
Pressure-resistance test: 25 bar (manufacturer reports pass)Source ↗
Chrome plating: Nickel 10 µm; chromium 0.3 µm (manufacturer-listed)Source ↗
Salt-spray test: 500 hours+ (manufacturer reports validated)Source ↗
Coating adhesion: Pass (manufacturer-reported test)Source ↗

Manufacturer specification ↗Product source ↗

Delivery & installation

For Chrome, our showroom team can help with delivery dates, access requirements and installation planning.

Open technical drawing →

Compare this product →

SPECIFICATION & INSTALLATION

Drawings & technical files.

Keep the details for your selected product close to hand, from choosing a finish to planning the fitting.

Selected productQQP-CHR-7271PMHL

Technical data sheetPDF · selected product code

For installation, use the manufacturer’s drawing and instructions. Check that the product code matches your selection.
