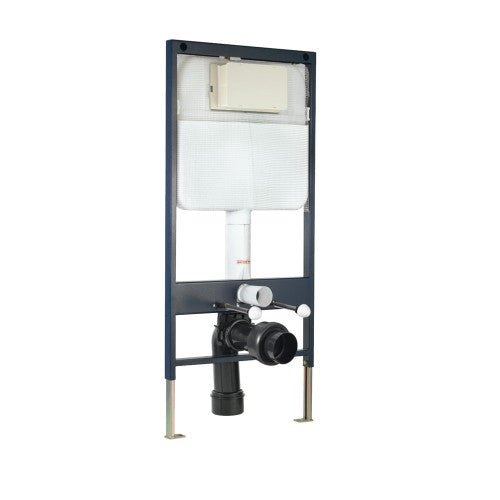

Pneumatic Single Piece Slim In-wall Cistern

Product Code APC-WHT-5012500FS
Description Pneumatic Single Piece Slim In-wall Cistern with Floor Mounting Frame, Installation Kit and “SType” Drain Pipe Connection Set for Wall Hung WC (without Flush Control Plate)
Flow Rate 3.0/6.0 LPF
Features
• Tank body: Strong 80 mm thick High-density polyethylene (HDPE) ‘Single-piece’ body.
• Anti-Condensation Lining: Anti condensation lining of 6mm thick wall takes care of
temperature change.
• Inlet & Outlet Valves: Inlet valve has a special rotary structure which gives out low noise &
anti siphon function. Both valves (Inlet & outlet) are WARS approved.
• Working Pressure: 0.3-10 bar (1.0 to 3.0 bar is recommended with clear, non-aggressive
water supply)
• Life Cycles of Mechanism: The lifetime of sea water test and dirty water test have passed
100,000 cycles
• Flush Control Plates: Toughened glass with ABS made chome plated push buttons of control
plates which is compatible for Single Piece Slim in-wall Cistern (APC-WHT-5012500FS)
• Adjustable Height: Adjustable legs (0-200 mm) to allow for variation in heights of WC, as
required
• Floor Mounted Frame: oxford blue Powder coated steel frame, self-supporting test on 400Kg
Application
• For installation of a wall-hung WC with bolt fixing set at 180 or 230 mm centres
• For installation in a room high system well in front of a solid or drywall construction.
• For installation in a load bearing stud wall.
www.artize.com
DISCLAIMER: Our every effort has been made to ensure factual accuracy, the information presented subject to changes
due to requirements in different sites, markets and/ or countries. 10% variation in flow rate may be possible. Jaquar
reserves the right to make the necessary amendments at any time without prior notice
