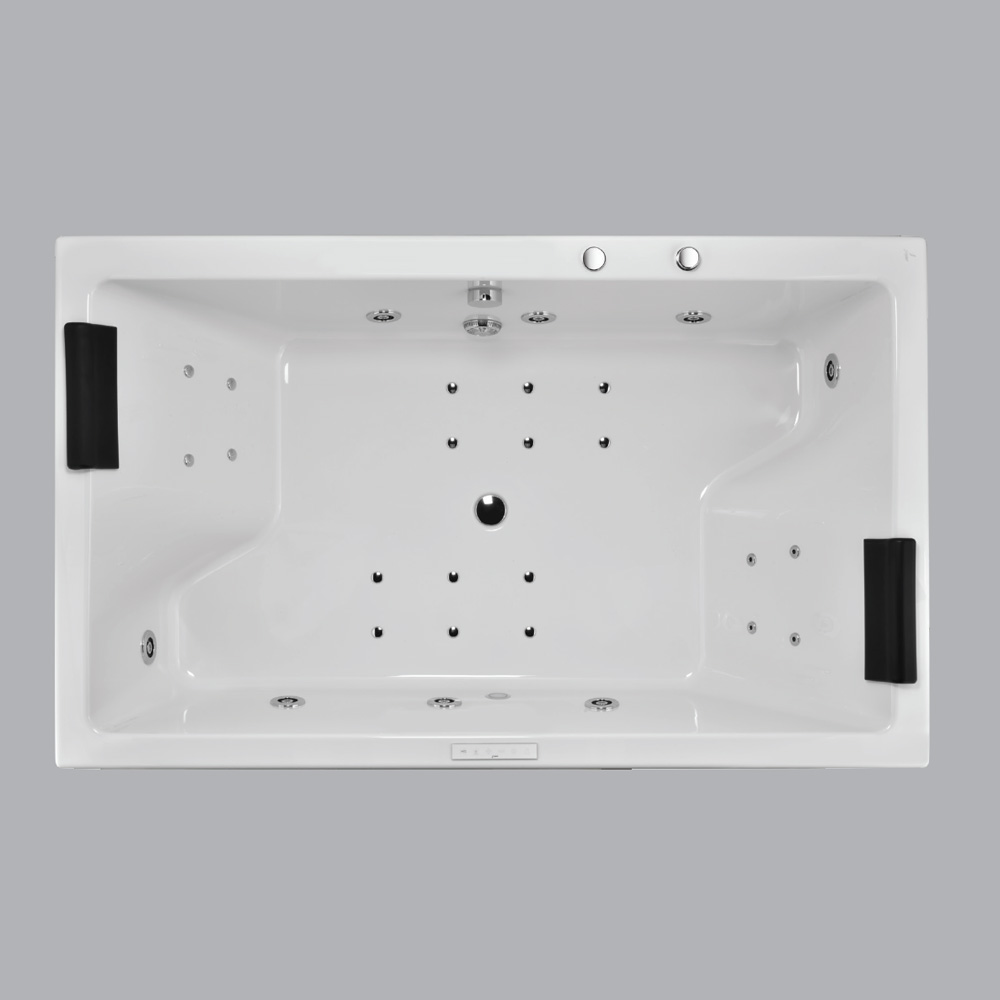

Kubix Prime Whirlpool & Airpool Combi Bath

Jaquar

Kubix Prime Whirlpool & Airpool Combi Bath

£2,872inc. VATRRP £3,829

White · JWP-WHT-KUBIXPM180CX

Size1800 × 1100 × 600 mm (length × width × height with frame, as drawn)

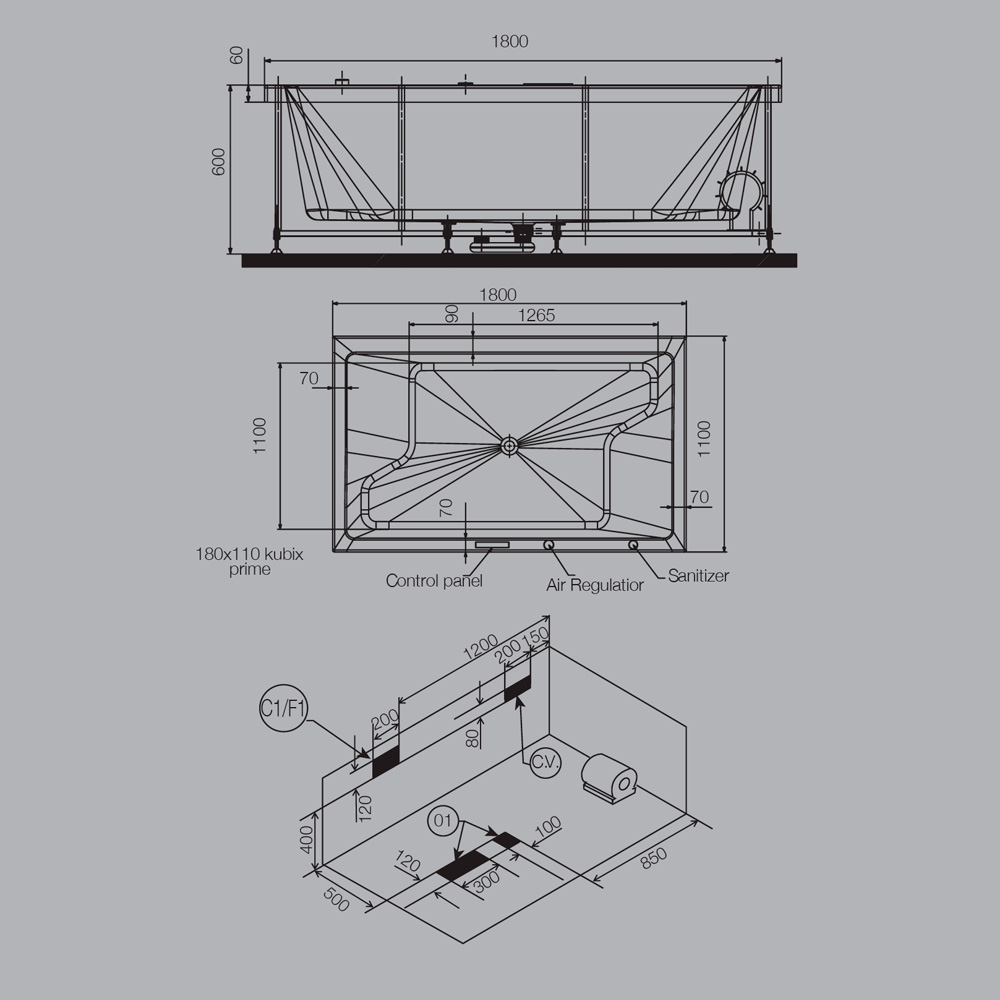

Technical drawings

The Jaquar Kubix Prime Whirlpool & Airpool Combi Bath comes in White. Supplied with drain and overflow with filler, SS202 frame and headrest.

Speak to a specialist 0121 663 6878
Up to 10-year warrantyCover varies by productFree UK deliveryUK mainland: 48-hour delivery from the next working day (weekends are not counted)Returns & supportHelp with your orderShowroom advice0121 663 6878

Warranty varies by product, finish and component. Delivery conditions apply.

CompareSee it in the showroom

Description

Kubix Prime 180X110X47 whirlpool and airpool combi system

Features & specifications

Features

  • Water jets: 8
  • Back jets: 4
  • Air jets: 16
  • Controls: Keypad control and air regulator
  • Lighting: Chromotherapy

Included

  • Drain and overflow with filler, SS202 frame and headrest

Not included

  • front panel: JWA-WHT-FP180X
  • side panel: JWA-WHT-SP110X

Specifications

Brand
Jaquar
Collection
Kubix Prime
Product code
JWP-WHT-KUBIXPM180CX
Finish
White
Type
Whirlpool and airpool combi bathSource ↗
Material
PMMA acrylicSource ↗
Construction
ReinforcedSource ↗
Reinforcement
PU GREEN (manufacturer designation)Source ↗
Bath size
1800 × 1100 × 470 mm (manufacturer-listed tub size)Source ↗
Overall size
1800 × 1100 × 600 mm (length × width × height with frame, as drawn)Source ↗
Length
1800 mmSource ↗
Width
1100 mmSource ↗
Height
600 mm (with frame, as drawn)Source ↗
Water pump
1.40 hp at 50 HzSource ↗
Water jets
8Source ↗
Back jets
4Source ↗
Air jets
16Source ↗
Air blower
0.90 hp at 50/60 HzSource ↗
Controls
Keypad control and air regulatorSource ↗
Water level sensor
Included featureSource ↗
Lighting
ChromotherapySource ↗
Safety feature
Vacuum suction breakerSource ↗
Supplied parts
Drain and overflow with filler, SS202 frame and headrestSource ↗
Excluded front panel
JWA-WHT-FP180XSource ↗
Excluded side panel
JWA-WHT-SP110XSource ↗
Disinfection system
Included featureSource ↗
Product source ↗

Delivery & installation

For White, our showroom team can help with delivery dates, access requirements and installation planning.

Open technical drawing →
Compare this product →

SPECIFICATION & INSTALLATION

Drawings & technical files.

Keep the details for your selected product close to hand, from choosing a finish to planning the fitting.

Selected productJWP-WHT-KUBIXPM180CX

Dimension drawingPDF · selected product codeTechnical data sheetPDF · selected product code

For installation, use the manufacturer’s drawing and instructions. Check that the product code matches your selection.
