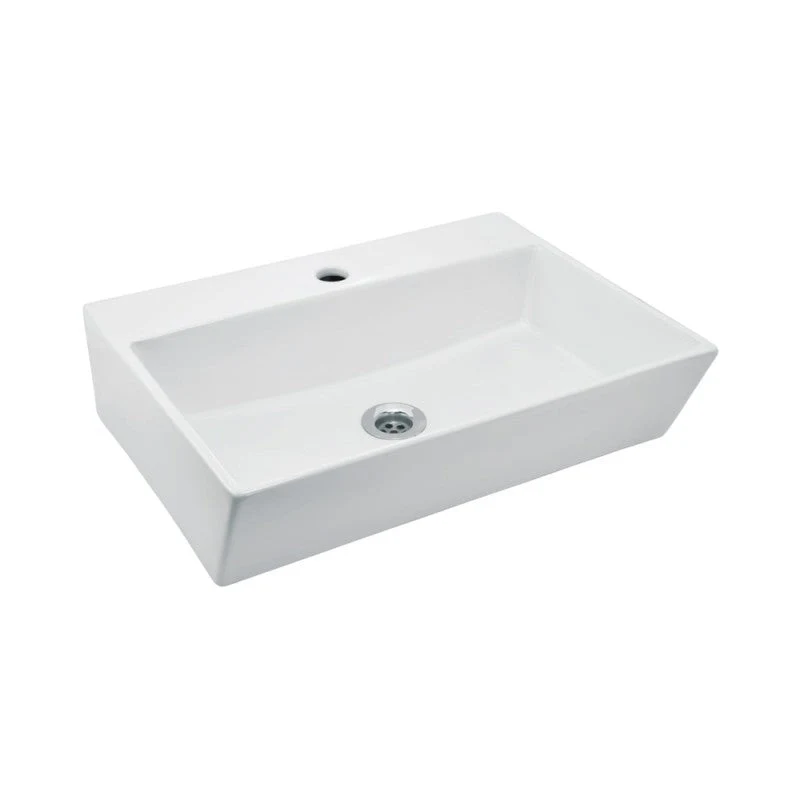

Kubix Countertop Basin

Jaquar

Kubix Countertop Basin

£122inc. VATRRP £162

White · KUS-WHT-35935

Size565 × 425 × 140 mm

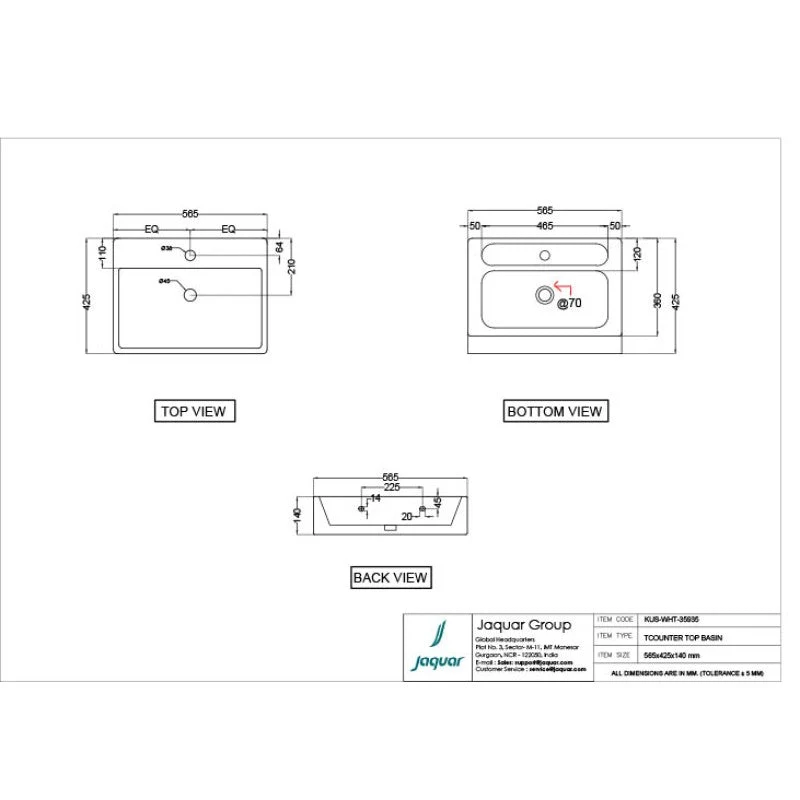

Technical drawings

The Jaquar Kubix Countertop Basin comes in White. A countertop washbasin sits above the worktop and defines the wash area.

Up to 10-year warrantyCover varies by productDelivery informationUK mainland: 48-hour delivery from the next working day (weekends are not counted)Returns & supportHelp with your orderShowroom advice0121 663 6878

Warranty varies by product, finish and component. Delivery conditions apply.

CompareSee it in the showroom

Description

Counter Top Basin, Size: 565x425x140 mm

Features & specifications

Features

  • White vitreous china ceramic
  • Tap hole diameter: Ø35 ± 2 mm
  • Inner bowl: 525 × 295 × 105 mm
  • Product weight: 16.14 kg

Confirm supplied components for KUS-WHT-35935 with the showroom before ordering.

Installation & compatibility

Use the installation drawing to check support, tap position and waste compatibility. Confirm any worktop cut-out before fabrication.

Specifications

Brand
Jaquar
Collection
Kubix
Product code
KUS-WHT-35935
Finish
White
Type
Countertop Basin
Choose separately †
Basin waste
Material
Ceramic — vitreous chinaSource ↗
Tap holes †
1
Dimension tolerance †
±5 mm
Manufacturer size
565X425X140 mm
Basin inner dimensions
525 × 295 × 105 mm
Installation
Countertop or wall-hung (manufacturer-listed)Source ↗
Overall size
565 × 425 × 140 mmSource ↗

† Retailer-listed detail. Confirm against the drawing for your selected product code.

Manufacturer specification ↗Product source ↗

Delivery & installation

For White, our showroom team can help with delivery dates, access requirements and installation planning.

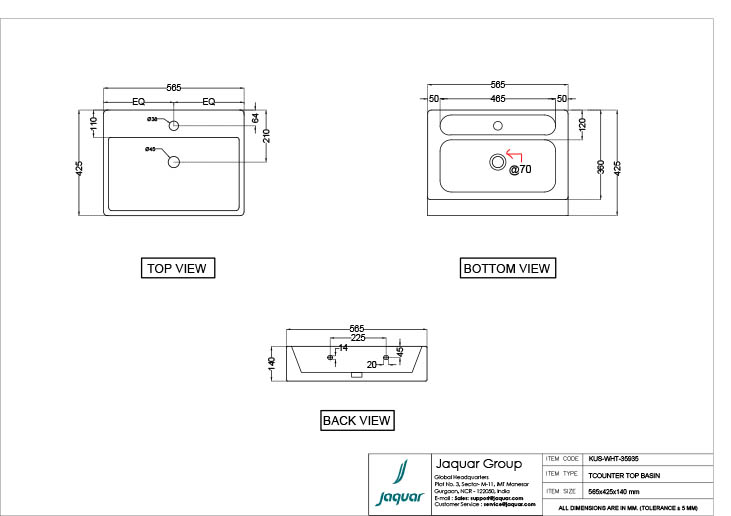

Open technical drawing →
Compare this product →

SPECIFICATION & INSTALLATION

Drawings & technical files.

Keep the details for your selected product close to hand, from choosing a finish to planning the fitting.

Selected productKUS-WHT-35935

Dimension drawingPDF · selected product codeTechnical data sheetPDF · selected product code

For installation, use the manufacturer’s drawing and instructions. Check that the product code matches your selection.
