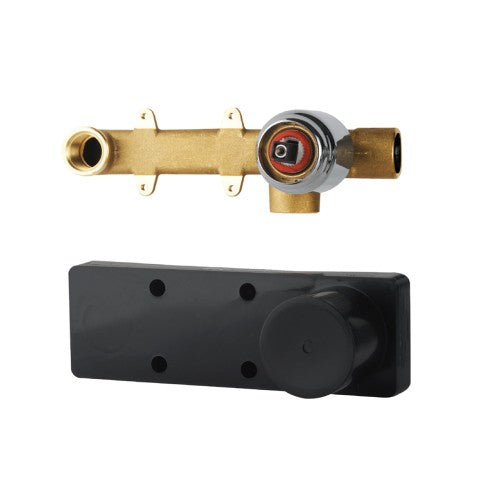

In-wall Body of 2 Hole Wall Mounted Basin Mixer

Product Code ALD-CHR-233N
Description In-wall Body of 2 Hole Wall Mounted Basin Mixer
Flow Rate 32.00 LPM @ 3 bar
Recommended
Water Pressure 0.5 Bar - 5 Bar
Brass Specifi cation
in Percentage
Brass Ingots as per IS:1264-1997
Cu (58.0-63.0), Sn (0.0-1.0), Pb (0.5-2.5), Ni (0.0-1.0), Al (0.2-0.8), Mn (0.0-0.5), Total Impurity
(0.0-2.0), Zn (Remainder)
Cartridge
Specifi cation
NSF-61 Approved Cartridge with Temperature Limiter
Cartridge with Brass Spindle
Life Cycle EN 817: 70,000 cycles (Standard)
- 2.1 LAC Cycles as per EN 817*
- 10.5 LAC Cycles (ON/OFF)*
Water Tightness 16 bar (Pass)
Pressure Resistance 25 bar (Pass)
Available Colour
Finishing CHROME (CHR)
* As per in-house testing done on automatic life cycle testing machine made by Giussain, Italy
DISCLAIMER: Our every effort has been made to ensure factual accuracy, the information presented subject to changes
due to requirements in different sites, markets and/ or countries. 10% variation in fl ow rate may be possible. Jaquar
reserves the right to make the necessary amendments at any time without prior notice
