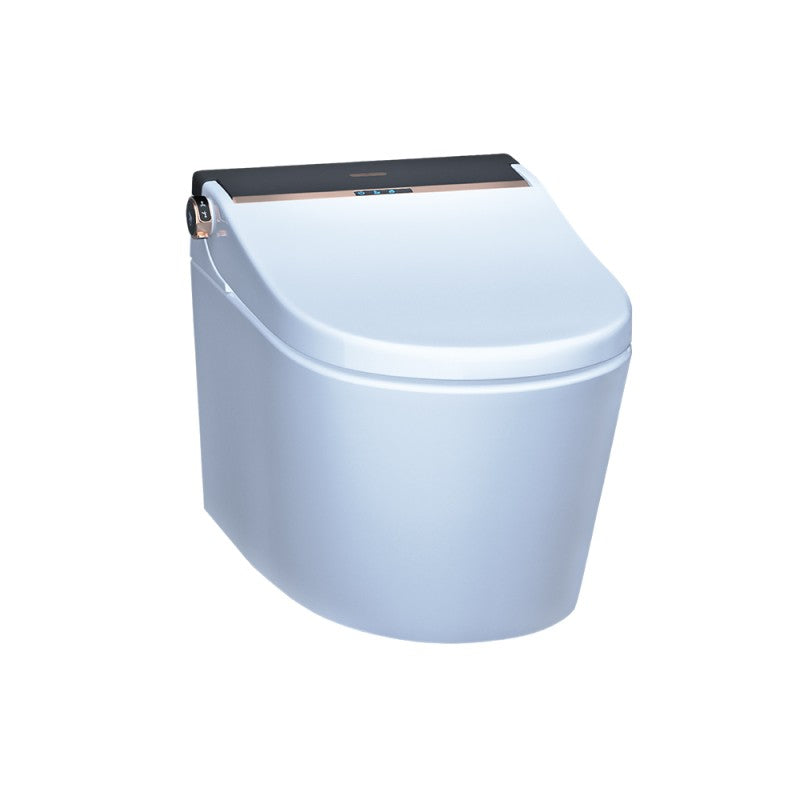

Wall Hung Toilet

Dimensions & Weight

Electrical & Heating Specs

• Rated Supply: 220–240 V, 50–60 Hz

• Rated Power: 1250–1300 W

• Seat Heater: 200 W

• General Heater: 35 W (instant heating)

Water & Flushing Features

• Flushing Water Capacity: 3.0–6.0 L

• Anal Shower Flow: 350–1000 ml/min

• Lady Shower Flow: 350–1000 ml/min

• Water Pressure Range: 0.07–0.75 MPa

• Dry Operating Temp: 8–35 °C, Wind Speed ≤ 4 m/s

• Drainage Way: Wall Exhaust

• Anti-siphon & backflow prevention

Safety & Controls

• Anti-dry/burn protection

• Relief valve & pressure stabilization

• Thermal fuse

• Temperature controller (NTC)

Flushing & Wash Functions

• Fall-to-flush, Manual flush / Auto flush

• Toilet Seat Heating

• Adjustable water temperature & pressure

• Instant heating for wash & seat

Accessories Provided

• Remote Control – 1 unit

Accessories Excluded:

• Control Plate – ACP-ROG-5012501

• Concealed Cistern – APC-BLM-5012500WSAF

Certifications

• EN 997:2012 + A1:2015

Key Features

• Wall-hung, rimless design

• Intelligent wash & flushing system

• Heated seat & instant water heating

• Dual wash (anal & lady)

• Safety devices to prevent dry-run, burns, overpressure
