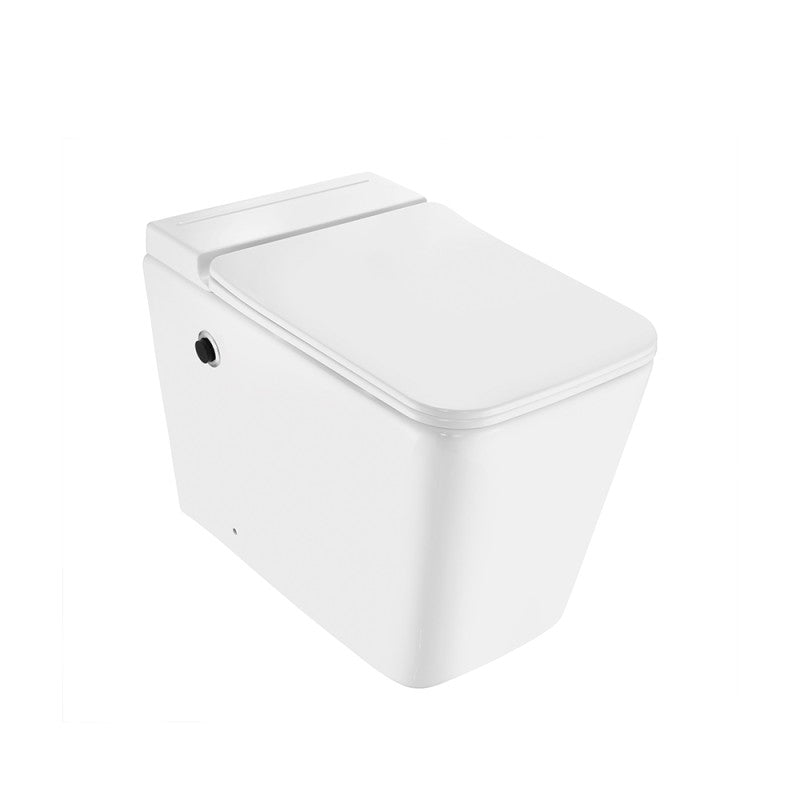

Tankless Single Piece Toilet

GENERAL INFORMATION

Product Code: ARS-WHT-39851P180UFSMTL
Type: Tankless Single Piece WC
Colour: White
Material: Ceramic – Vitreous China
Outlet Type: Vertical

PRODUCT SPECIFICATIONS

Product Dimensions: 360 × 590 × 450 mm
Basin Inner Dimensions: 250 × 340 mm
Net Weight: 34 kg
Gross Weight: 40 kg
Packaging Dimensions: 630 × 490 × 500 mm

WASTE HOLE DETAILS

• Vertical distance between floor and centre line of waste outlet hole: ≤ 180 mm

• Trap Distance: 180 mm

PRODUCT FEATURES

• Tankless Floor Mounted WC

• Sensor & Manual Flush (6 LPF)

• Jet Associated Flush

• Anti-Germ Glaze

• Sensor Range: 180 mm

• IP Rating: IP68

• UF Soft Close Seat Cover

• Supplied with Angle Valve

ACCESSORIES INCLUDED

• UF Soft Close Seat Cover – ARS-WHT-39107UF

• Angle Valve – ZPS-WHT-TL008

• Floor Fixing Screw – ZPS-SNS-FB02

CARE AND CLEANING GUIDELINES

• Vitreous china sanitary ware products are fragile and must be handled carefully during storage, handling, installation, and use.

• Product is heavy; two persons are recommended for installation.

• Inspect product for damage before installation.

• Do not overtighten fittings to avoid breakage or chipping.

• Do not lift or rock the bowl after placement to prevent leakage.

• Test cleaning solutions on an inconspicuous area before full application.

• Do not allow cleaners to soak on the surface.

• Use a soft damp sponge or cloth only; avoid abrasive materials.

• Rinse thoroughly with water after cleaning.

• Clean chrome/stainless steel weekly; avoid chloride-based cleaners.

• Use warm water and dry with a soft cloth for chrome-plated surfaces.

QUALITY MANAGEMENT SYSTEM

ISO 9001
