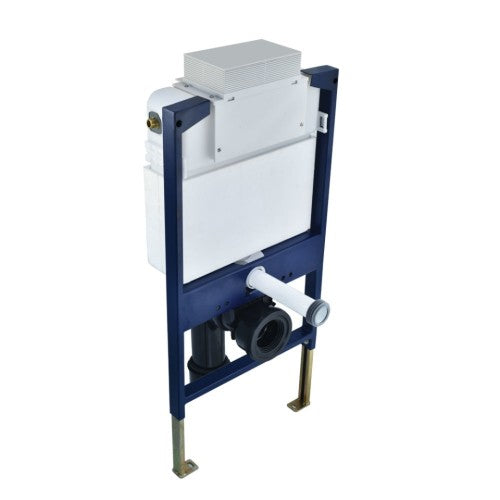

Single Piece In-wall Cistern Body

Product Code JCS-WHT-2431FS
Description
Single Piece In-wall Cistern Body (Front or Top Actuation) with Floor Mounting Frame,
Installation Kit and “S-Type” Drain Pipe Connection Set for Wall Hung WC (without Flush
Control Plate)
Flow Rate 3.0/6.0 LPF
Features
• Tank body: Strong 125mm thick High-density polyethylene (HDPE) ‘Single-piece’ body.
• Anti-Condensation Lining: Anti condensation lining of 6mm thick wall takes care of
temperature change.
• Inlet & Outlet Valves: Inlet valve has a special rotary structure which gives out low
noise & anti siphon function. Both valves (Inlet & outlet) are WARS approved.
• Working Pressure: 0.3-10 bar (1.0 to 3.0 bar is recommended with clear, nonaggressive water supply)
• Life Cycles of Mechanism: The lifetime of sea water test and dirty water test have
passed 100,000 cycles
• Flush Control Plates: ABS made chrome plated flush control plates which is
compatible for Single Piece In-wall Cistern Body (Front or Top Actuation) JCS-WHT2431FS)
• Adjustable Height: Adjustable legs (0-200 mm) to allow for variation in heights of WC,
as required
• Floor Mounted Frame: oxford blue Powder coated steel frame, self-supporting test on
400Kg load bearing capacity.
• Water inlet: ½” water supply connection from left.
• Flush volume: Factory setting 6.0~3.0 litres, Eco adjustable: 4.0~2.0 litres (Only for WC
pans designed for low volume flushing).
Application
• For Front or Top actuation optional
• For installation of a wall-hung WCs with bolt fixing set at 180 or 230 mm centres
• For installation in a room high system well in front of a solid or drywall construction.
• For installation in a load bearing stud wall.
• Fixed within a drywall/ studwork frame (room height), in front of solid walls and
common floor structures.
• Small or large bathrooms, where space is at a premium, while ease of cleaning and
sleek design is a priority.
• All common construction systems, in domestic, commercial, industrial and institutional
new build or refurbishment projects.
DISCLAIMER: Our every effort has been made to ensure factual accuracy, the information presented subject to
changes due to requirements in different sites, markets and/ or countries. 10% variation in flow rate may be
possible. Jaquar reserves the right to make the necessary amendments at any time without prior notice
