DIS-WHT-93753NP180UFSMZ

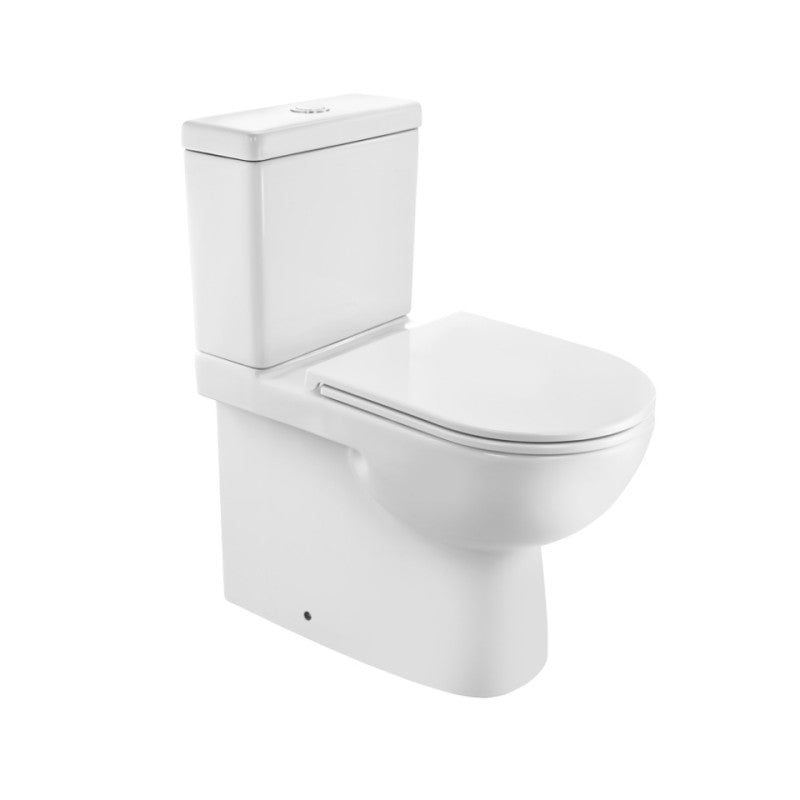

Complete Set for Coupled WC (P-Trap) – Specification Data Sheet

Manufacturer: Jaquar
Brand: Jaquar
Colour: White
Type: Complete Set for Coupled WC (P-Trap)
Material: Ceramic – Vitreous China (VC)

PRODUCT SPECIFICATION

• Product Dimensions: 380 × 650 × 790 mm

• Bowl Inner Dimension: 280 × 345 mm

• Net Weight: 42.5 kg

• Gross Weight: 51 kg

• Packaging Dimension: 850 × 440 × 500 mm

• Outlet Type: Horizontal

• Trap Distance: P-Trap – 180 mm

TECHNICAL DETAILS

• External Diameter of Outlet Hole: Ø 100 ± 5 mm

• Vertical Distance Between Floor and Centre Line of Waste Outlet Hole: ≤ 180 mm

FEATURES

• Designed for specially-abled people with aesthetic design

• Rimless bowl design for easy cleaning

• Detachable UF soft close seat cover

• Dual Flush – 3/4.5 LPF

• Anti-germ glaze

ACCESSORIES INCLUDED

• UF Soft Close Seat Cover – DIS-WHT-93105UF

• Floor Fixing Screw – ZPS-SNS-FB02

• Cistern – DIS-WHT-93203

• Cistern Fittings

• Rubber Gasket

CARE AND CLEANING GUIDELINES

• Handle vitreous china products carefully to avoid breakage or injury

• Always inspect for damage before installation

• Avoid over-tightening fittings to prevent chipping

• Do not lift or rock the WC after placement

• Use soft damp cloth or sponge for cleaning; avoid abrasive materials

• Rinse surfaces immediately after cleaning

• For chrome and stainless steel surfaces, clean with warm water and dry immediately; avoid chloride-based cleaners

CERTIFICATION

• ISO 9001 – Quality Management System
