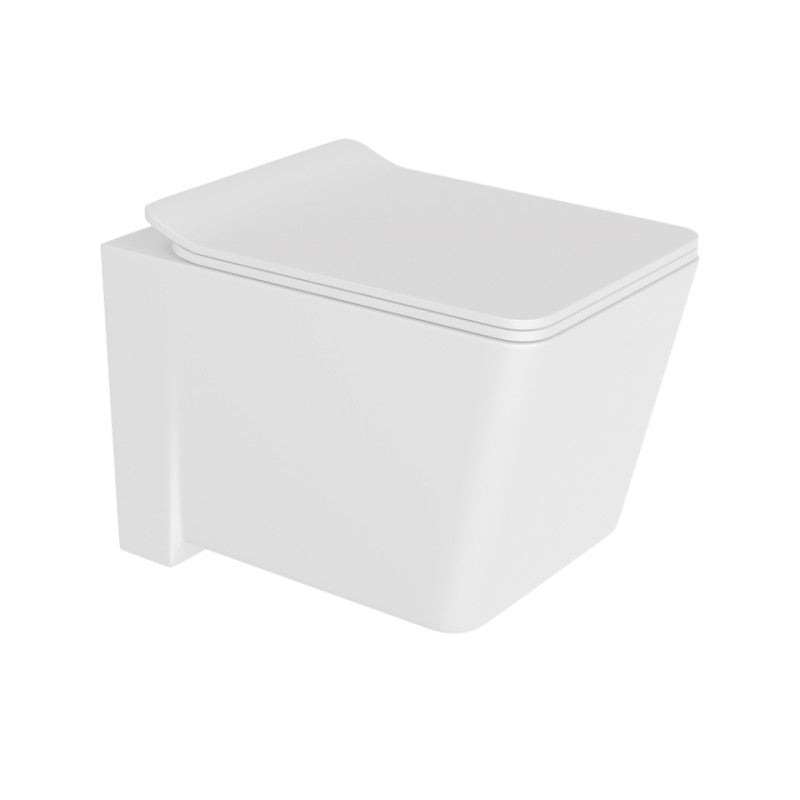

Rimless Blind Installation Wall Hung Toilet

PRODUCT SPECIFICATION

• Product Dimensions: 380 × 525 × 375 mm

• Bowl Inner Dimension: 270 × 330 mm

• Trap Distance: P-Trap

• Internal Diameter of Inlet Hole: Ø 58 ± 3 mm

• External Diameter of Outlet Hole: Ø 100 ± 5 mm

• Product Net Weight: 30 kg

• Product Gross Weight: 35 kg

• Packaging Dimension: 450 × 390 × 535 mm

FEATURES

• Rimless wall hung WC

• Blind installation

• UF Soft Close Seat Cover with hinges and accessories set

• Dual Flush – 3/6 LPF

• Anti-germ glaze

• Trap glazed

Additional Notes:

• (L) From wall tile surface to center of seat cover fixing hole

• (La) WC fixing wall thickness

• (Lb) From wall tile surface to inner bowl surface of WC

ACCESSORIES INCLUDED

• Seat Cover – KUS-WHT-35101UFPM

• Inlet & Outlet Gasket – ZPS-WHT-GK01

• Fixing Kit – ZPS-WHT-FB10

Accessories Recommended:

• Rag Bolt – ZPS-MST-RB07N

• Concealed Cistern – Models: JCS-WHT-2400S, 2400P, 2400, 2400WS, 2400WP, 2400FS, 2400FP, 2431P, 2431FP, 2431, 2431S, 2431FS

CARE AND CLEANING GUIDELINES

• Handle vitreous china carefully to avoid damage or injury.

• Product is heavy – recommended two-person handling during installation.

• Inspect before installation; over-tightening may cause breakage.

• Do not lift or rock after placement to avoid leakage.

• Use soft, dampened sponge or cloth for cleaning; avoid abrasives.

• Rinse thoroughly after cleaning; for chrome/stainless steel, avoid chloride cleaners.

CERTIFICATION

• Quality Management System – ISO 9001
