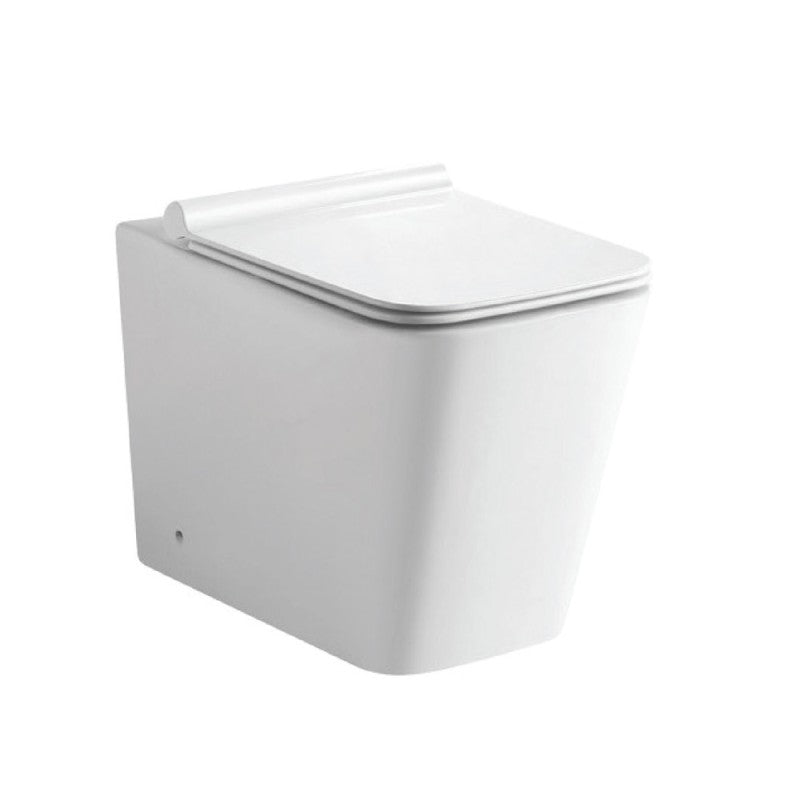

Rimless Back To Wall Toilet

GENERAL INFORMATION

Product Code: ARS-WHT-39955P180UFSM
Type: Back To Wall WC
Colour: White
Material: Ceramic – Vitreous China (VC)
Outlet Type: Horizontal
Trap Type: P-Trap – 180 mm

PRODUCT SPECIFICATIONS

Product Dimensions: 360 × 605 × 410 mm
Bowl Opening (Inner Dimension): 250 × 340 mm
Net Weight: 34.4 kg
Gross Weight: 39.2 kg
Packaging Dimensions: 610 × 430 × 440 mm

INLET & OUTLET HOLE DIMENSIONS

• Internal Diameter of Inlet Hole: Ø 58 ± 3 mm

• External Diameter of Outlet Hole: Ø 100 ± 5 mm

PRODUCT FEATURES

• Box Rim Design with Deep Sump for Efficient Flushing

• Slim Seat Cover

• Dual Flush – 3/6 LPF

• Anti-Germ Glaze

ACCESSORIES PROVIDED

• Seat Cover – ARS-WHT-39101UF

• Floor Fixing Screw – ZPS-SNS-FB02

• Inlet/Outlet Gasket – ZPS-WHT-GK01

ACCESSORIES RECOMMENDED

Compatible Concealed Cistern Models:

• JCS-WHT-2400

• JCS-WHT-2400P

• JCS-WHT-2400S

• JCS-WHT-2431

• JCS-WHT-2431P

• JCS-WHT-2431S

CARE AND CLEANING GUIDELINES

• Handle vitreous china products carefully during storage, installation, and use.

• Two persons are recommended for installation due to product weight.

• Inspect product for damage before installation.

• Avoid overtightening to prevent breakage or chipping.

• Do not lift or rock the bowl after placement to prevent leakage.

• Test cleaning solutions on an inconspicuous area first.

• Do not allow cleaners to soak on the surface.

• Use only a soft damp sponge or cloth; avoid abrasive materials.

• Rinse thoroughly after cleaning.

• Avoid chloride-based cleaners on chrome/stainless steel surfaces.

• Use warm water and dry with a soft cloth for chrome-plated parts.

QUALITY MANAGEMENT SYSTEM

ISO 9001
