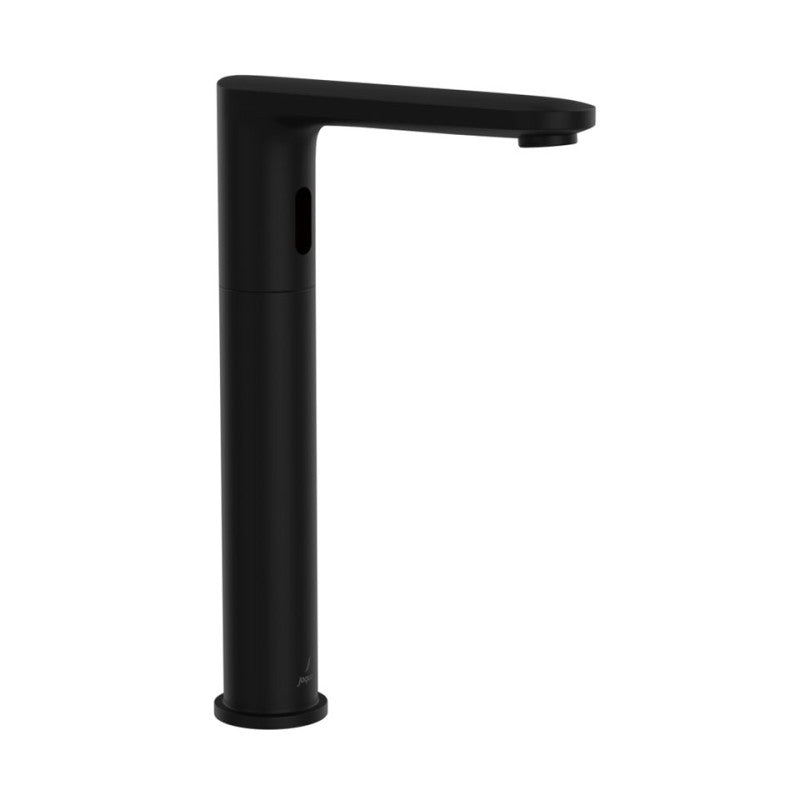

Opal Prime High Neck Sensor Faucet for Wash Basin Deck mounted Complete

Product code SNR-CHR-15017PMEBPK
Description Opal Prime High Neck Sensor Faucet for Wash Basin with Pre-mixed Water Supply Kit (9V
transformer)
Light Indicator on Usage Red LED indicator
Water Supply Hot & Cold (2 inlets)
Water Temperature Maximum 65 ℃
Environment working Temperature 0 to 40℃
Inlet Water Connection 1/2”BSP (15mm)
Recommended Water Pressure 1.0 Bar - 5.0 Bar
Flow Rate 12.20 LPM @ 3 bar
Self-close Over ride Time 12 sec
Flow regulator By using flow regulators (Product should be ordered with suffix as G-2.5 LPM, GA-6.0 LPM, GB-8.0
LPM, GD-3.8 LPM & GE-1.3 LPM @ 3.0 Bar pressure) one can regulate the flow rate.
Material Composition Specification
in Percentage
Brass Ingots as per IS:1264-1997
Cu (58.0-63.0), Sn (0.0-1.0), Pb (0.5-2.5), Ni (0.0-1.0), Al (0.2-0.8), Mn (0.0-0.5), Total Impurity (0.0-
2.0), Zn (Remainder)
Brass Rod as per IS:319-1989
Cu (56.0-59.0), Pb (2.0-3.5), Fe (0.0-0.35), Total Impurity (0.0-0.7), Zn (Remainder)
Solenoid Valve Specification
Operating pressure 1.0 - 5.0 bar
Nominal Voltage : 9 Volt DC (+/- 10%)
Diaphragms gasket EPDM / NBR (buna) / Silicone (MVQ)
Flow direction One way (As per Arrow)
IP Rating Protection against intrusion (control box) IP 66
Protection against Ingress (sensor eye) IP 66
Factory setting Parameters
Detection Range : 10 CM - 22CM
Valve shut of Time : < 2s
Detection Time/ Response Time : Sensor activation time : < 1s
Power Source 9V transformer (Jaquar make only)
Power consumption Power Consuption (StandBy): < 0.4mW(DC),
Power consumption (flushing): 0.4W
Finish
Plating: Nickel-10.0 micron Chromium-0.3 micron
Salt Spray (500 hrs + Validated)
Adhesion (Pass)
Aerator Size WRAS, ACS Approved (M 24X1)
Available Color Finishing CHROME (CHR)
jaquar.com
DISCLAIMER: Our every effort has been made to ensure factual accuracy, the information presented subject to changes due to
requirements in different sites, markets and/ or countries. 10% variation in flow rate may be possible. Jaquar reserves the right to make
the necessary amendments at any time without prior notice
