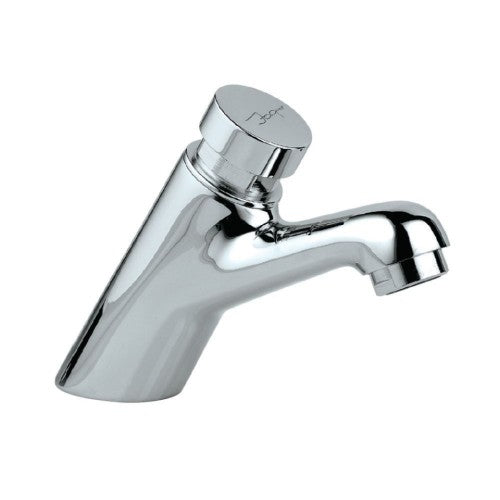

Non-concussive Basin Tap

Product Code PRS-CHR-031
Description Non-concussive Basin Tap
Flow Rate 16.72 LPM @ 3 bar
Flow regulator
By using flow regulators (Product should be ordered with suffix as G-2.5 LPM,
GA-6.0 LPM, GB-8.0 LPM, GC-13.0 LPM, GD-3.8 LPM & GE-1.3 LPM @ 3.0 Bar
pressure) one can regulate the flow rate.
Recommended Water Pressure 0.2 Bar - 4.0 Bar
Brass Specification in
Percentage
Brass Ingots as per IS:1264-1997
Cu (58.0-63.0), Sn (0.0-1.0), Pb (0.5-2.5), Ni (0.0-1.0), Al (0.2-0.8), Mn (0.0-0.5),
Total Impurity (0.0-2.0), Zn (Remainder)
Brass Rod as per IS:319-1989
Cu (56.0-59.0), Pb (2.0-3.5), Fe (0.0-0.35), Total Impurity (0.0-0.7), Zn (Remainder)
Cartridge Specification
Fittings : Hydro-mechanical activation, light manual pressure and with automatic
timed closure
Actuation time : 7 Sec (average)
Maximum water temperature: 70°C
Life Cycle EN 816: 210,000 cycles (with static pressure 4±0.5 bar) cartridge
complies with this requirement.
Water Tightness 16 bar (Pass)
Finish
Plating: Nickel-10.0 micron Chromium-0.3 micron
Salt Spray (500 hrs + Validated)
Adhesion (Pass)
Aerator Size WRAS, ACS Approved (24X1)
Available Colour Finishing CHROME (CHR)
DISCLAIMER: Our every effort has been made to ensure factual accuracy, the information presented subject to changes
due to requirements in different sites, markets and/ or countries. 10% variation in flow rate may be possible. Jaquar
reserves the right to make the necessary amendments at any time without prior notice.
