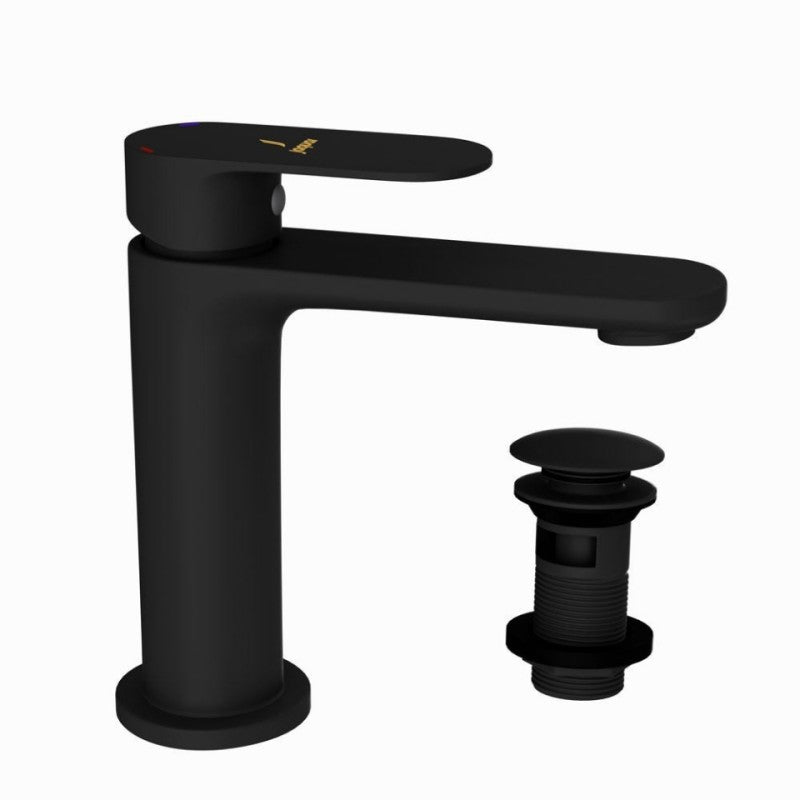

Mono Basin Mixer

Product Code OPP-CHR-15011BPMCLW
Description Mono Basin Mixer with click clack waste (ALD-729)
Connection Size Braided hoses, 1/2” FIP (WRAS Approved)
Withstand pressure of 10 Bar
Flow Rate 14.70 LPM @ 3 bar
Flow regulator
By using flow regulators (Product should be ordered with suffix as G-2.5 LPM, GA-6.0 LPM, GB-8.0
LPM, GC-13.0 LPM, GD-3.8 LPM & GE-1.3 LPM @ 3.0 Bar pressure) one can regulate the flow
rate.
Recommended
Water Pressure 0.5 Bar - 5 Bar
Brass Specification
in Percentage
Brass Ingots as per IS:1264-1997
Cu (58.0-63.0), Sn (0.0-1.0), Pb (0.5-2.5), Ni (0.0-1.0), Al (0.2-0.8), Mn (0.0-0.5), Total Impurity (0.0-
2.0), Zn (Remainder)
Brass Rod as per IS:319-1989
Cu (56.0-59.0), Pb (2.0-3.5), Fe (0.0-0.35), Total Impurity (0.0-0.7), Zn (Remainder)
Brass Sheets as per IS:410-1977
Cu (61.5-64.5), Pb (0.0-0.3), Fe (0.0-0.075), Total Impurity (0.0-0.6), Zn (Remainder)
Cartridge
Specification
NSF-61 Approved Cartridge with Temperature Limiter
Cartridge with Brass Spindle
Life Cycle EN 817: 70,000 cycles (Standard)
- 2.1 LAC Cycles as per EN 817*
- 10.5 LAC Cycles (ON/OFF)*
Accessories incl. Click Clack Basin Waste
Water Tightness 16 bar (Pass)
Pressure Resistance 25 bar (Pass)
Finish
Plating: Nickel-10.0 micron Chromium-0.3 micron
Salt Spray (500 hrs + Validated)
Adhesion (Pass)
Aerator Size WRAS, ACS Approved (24X1)
Available Colour
Finishing
Antique Bronze (ABR), Antique Copper (ACR), Black Chrome (BCH), Black Matt (BLM), Gold Dust
(GDS), Full Gold (GLD), Graphite (GRF), Stainless Steel Finish (SSF) & White Matt (WHM)
* As per in-house testing done on automatic life cycle testing machine made by Giussain, Italy
DISCLAIMER: Our every effort has been made to ensure factual accuracy, the information presented subject to changes due
to requirements in different sites, markets and/ or countries. 10% variation in flow rate may be possible. Jaquar reserves the
right to make the necessary amendments at any time without prior notice.
