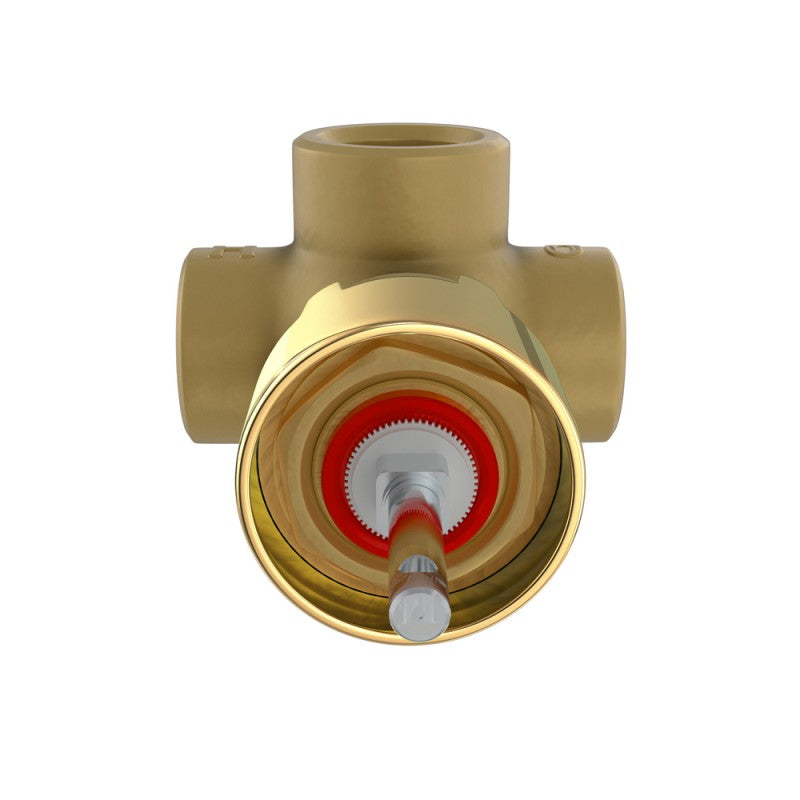

In-wall Body of Single Lever Manual Shower Valve

Product Code VIC-CHR-503139C
Description In-wall Body of Single Lever Manual Shower Valve (Without Exposed Parts)
Flow Rate 27.44 LPM @ 3 bar
Recommended Water Pressure 1.0 Bar - 5 Bar
Brass Specification in Percentage
Brass Ingots as per IS:1264-1997
Cu (58.0-63.0), Sn (0.0-1.0), Pb (0.5-2.5), Ni (0.0-1.0), Al (0.2-0.8), Mn (0.0-0.5), Total
Impurity (0.0-2.0), Zn (Remainder)
Brass Sheets as per IS:410-1977
Cu (61.5-64.5), Pb (0.0-0.3), Fe (0.0-0.075), Total Impurity (0.0-0.6), Zn (Remainder)
Cartridge Specification
Cartridge with Brass Spindle
Life Cycle EN 817: 70,000 cycles (Standard)
- 2.1 LAC Cycles as per EN 817*
- 10.5 LAC Cycles (ON/OFF)*
Water Tightness 16 bar (Pass)
Pressure Resistance 25 bar (Pass)
Finish
Plating: Nickel-13.0 micron Chromium-0.40 micron
Salt Spray (700 hrs + Validated)
Adhesion (Pass)
Available Colour Finishing Black Chrome (BCH), Black Matt (BLM), Gold Bright PVD (GBP) & Blush Gold Bright PVD (BGP)
* As per in-house testing done on automatic life cycle testing machine made by Giussani, Italy
DISCLAIMER: Our every effort has been made to ensure factual accuracy, the information presented subject to changes due to
requirements in different sites, markets and/ or countries. 10% variation in flow rate may be possible. Jaquar reserves the right
to make the necessary amendments at any time without prior notice
