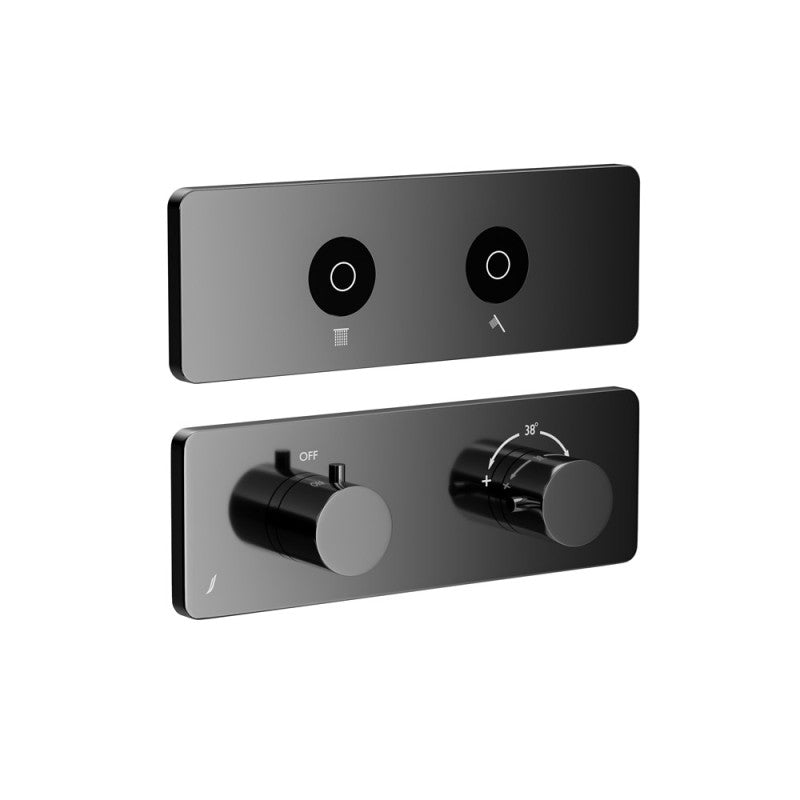

Exposed Part Kit of CLOUD Touch Thermostatic Shower System

Product Code: QLD-CHR-309685KRMHB
Brand: Jaquar

Description

Exposed Part Kit of QLOUD Touch Shower System with 4 outlets for connection to Rain, Mist/Waterfall, Hand Shower & Body Shower
(Compatible In-wall Part QLD-309661C or QLD-309661CE sold separately)

Includes:

• Exposed wall flange for thermostatic shower mixer

• Exposed wall flange with inbuilt touch control panel for 4 outlets (for in-wall plastic box)

• CPU system with 1 inlet & 4 outlet connections

• 3 m extension cable (touch control panel to CPU) – 1 pc

• 3 m extension cable (power adapter to touch control panel) – 1 pc

• Battery box with connecting cable to touch control panel – 1 pc

• 800 mm braided hose, 15 mm – 4 nos

• 800 mm braided hose, 20 mm – 1 no

• Filter – 1 no

• Metallic clamp & screw – 1 set

Material Specification (in %)

Brass Ingots (IS:1264-1997)

Cu 58.0–63.0, Sn 0.0–1.0, Pb 0.5–2.5, Ni 0.0–1.0, Al 0.2–0.8, Mn 0.0–0.5, Total Impurity 0.0–2.0, Zn Remainder

Brass Rod (IS:319-1989)

Cu 56.0–59.0, Pb 2.0–3.5, Fe 0.0–0.35, Total Impurity 0.0–0.7, Zn Remainder

Brass Sheets (IS:410-1977)

Cu 61.5–64.5, Pb 0.0–0.3, Fe 0.0–0.075, Total Impurity 0.0–0.6, Zn Remainder

Water Pressure

• Minimum Dynamic: 1.0 bar

• Recommended Dynamic: 3.0 bar

• Maximum Dynamic: 6.0 bar

Water Inlet Temperature

• Minimum: 5°C

• Maximum: 65°C

Flow Rate (Valve Box + Thermostat) @ 3 bar (free flow)

• One outlet open (mixed): 33 L/min

• Two outlets open (mixed): 44 L/min

Power Supply System

• Input: 100–240 Vac, 0.4 A, 50/60 Hz

• Output: 6.0 Vdc, 0.6 A, Max load 3.6 W

• Plug Type: 3 Pin D-Type

Protection Rating

• Solenoid Valve Box: IP53

• Touch Control Panel: IP65

Water Connections

• Inlet/Outlet: 3/4" BSP (20 mm) for in-wall thermostatic control body

• Solenoid valve box: Inlet 3/4" BSP (20 mm), Outlet 1/2" BSP (15 mm)

Environmental Working Conditions

• Ambient Temperature: +5°C to 60°C

• Relative Humidity: 30% to 95%

Factory Settings

• Automatic Safety Shut-Off Time: 20 minutes

• Maximum 2 outlets can operate simultaneously

• Water Tightness: >16 bar (static test)

• Adjustable Parameters: Flow rate, Temperature, 4 outlets

Finish Details

• Plating: Nickel 10.0 micron, Chromium 0.3 micron

• Salt Spray: 500+ hours (Validated)

• Adhesion: Pass

Available Colour Finishes

• Black Chrome (BCH)

• Black Matt (BLM)

• Blush Gold Bright PVD (BGP)

• Gold Bright PVD (GBP)

• Gold Matt PVD (GMP)
