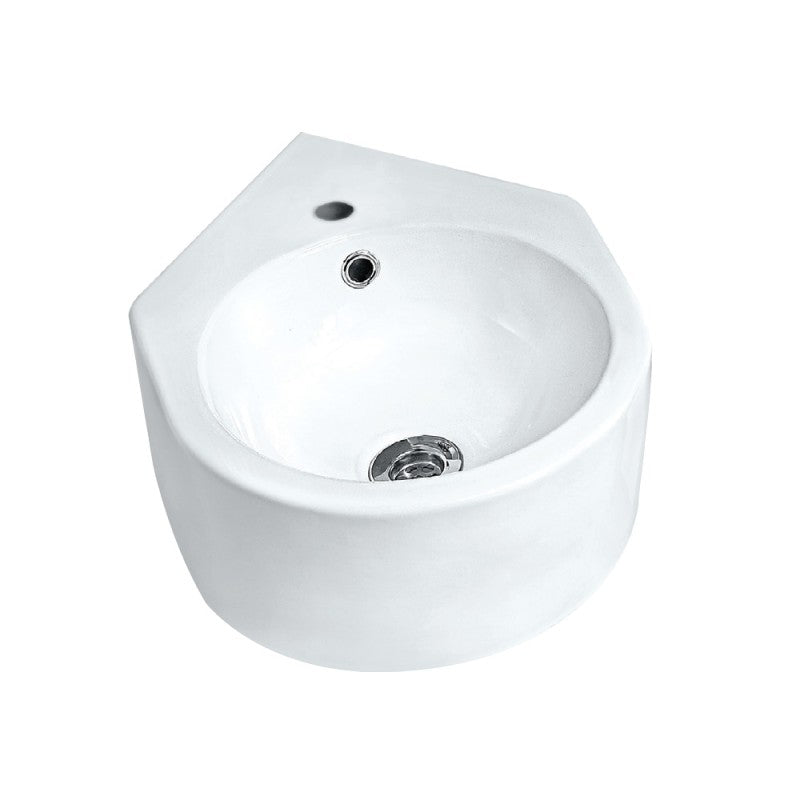

Corner Wall Hung Basin

PRODUCT DETAILS

Range / Brand: Jaquar Designer
Product Code: JDS-WHT-25841
Colour: White
Type: Wall Hung Corner Basin
Material: Ceramic – Vitreous China
Product Dimensions: 315 × 450 × 175 mm
Basin Inner Dimensions: 290 × 210 × 95 mm
Product Weight: 9.25 kg
Outlet Type: Vertical

TECHNICAL DETAILS

• Tap Hole Diameter: Ø 35 ± 2 mm

• Internal Diameter of Waste Outlet Hole: Ø 45 ± 3 mm

• Horizontal Distance Between Center Line of Tap Hole and Center Line of Waste Outlet Hole ≤ 200 mm

• Basin Features: Tap Hole, Overflow Hole, Anti-Germ Glaze

ACCESSORIES INCLUDED

• Rack Bolt: ZPS-MST-RB03

• Overflow Hole Cap: ZPS-WHT-9012B

CERTIFICATION

• Compliance: EN 14688:2015 (E) A, SANS 497:2011

CARE AND CLEANING GUIDELINES

• Handle vitreous china products with care to avoid injury.

• Inspect product for damage before installation.

• Avoid over-tightening to prevent chipping or breakage.

• Do not lift or rock the basin after placement.

• Clean with soft, damp cloth or sponge; avoid abrasive materials.

• Rinse thoroughly after cleaning and wipe dry immediately.

• Clean chrome and stainless steel surfaces weekly; avoid chloride-based cleaners.
