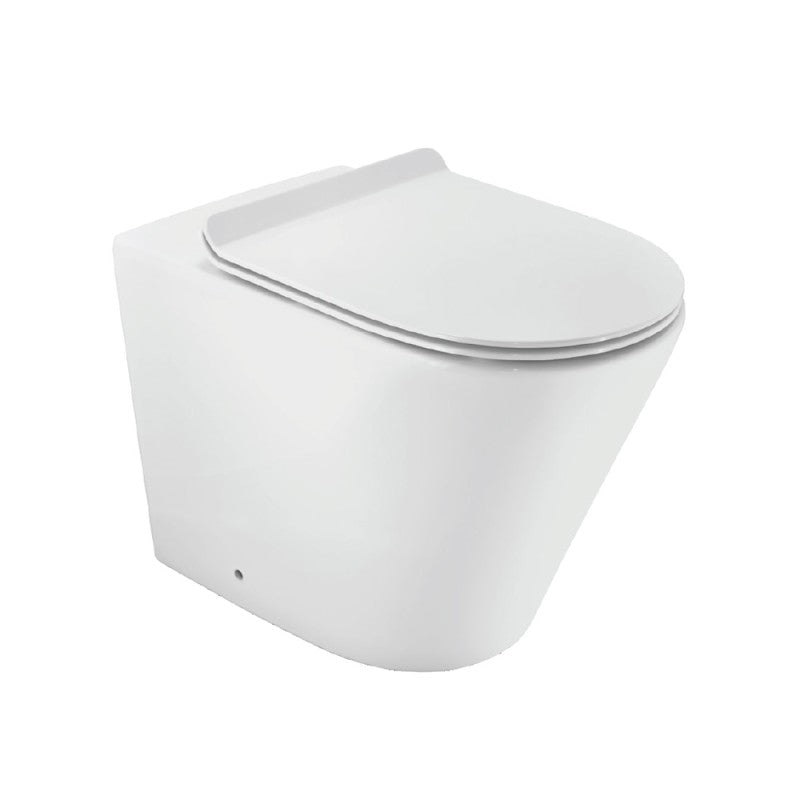

Back To Wall Toilet

Back to Wall WC – Specification Data Sheet

Manufacturer: Jaquar
Type: Back To Wall WC
Colour: White
Material: Ceramic – Vitreous China
Outlet: Vertical

PRODUCT DIMENSIONS

• Overall Dimensions: 370 × 580 × 430 mm

• Basin Inner Dimension: 260 × 335 mm

• Product Net Weight: 30 kg

• Product Gross Weight: 32 kg

• Packaging Dimension: 610 × 385 × 430 mm

TECHNICAL DETAILS

• Internal Diameter of Inlet Hole: Ø 58 ± 3 mm

• External Diameter of Outlet Hole: Ø 100 ± 5 mm

PRODUCT FEATURES

• Back to wall design

• Rimless WC

• Anti-bacterial glaze

• Dual Flush – 3/6 LPF

ACCESSORIES INCLUDED

• UF Soft Close Seat Cover – ONS-WHT-10105

• Inlet & Outlet Gasket – ZPS-WHT-GK01

• Floor Fixing Screw – ZPS-SNS-FB02

ACCESSORIES RECOMMENDED

• Concealed cisterns: JCS-WHT-2400, JCS-WHT-2400P, JCS-WHT-2400S, JCS-WHT-2431, JCS-WHT-2431P, JCS-WHT-2431S

CARE AND CLEANING GUIDELINES

• Handle vitreous china products with care; heavy item – recommended two-person handling

• Inspect before installation

• Avoid over-tightening to prevent breakage

• Do not lift or rock the bowl after placement

• Use soft, damp cloth for cleaning; avoid abrasives

• Rinse surfaces immediately after cleaning

• For chrome/stainless steel parts: use warm water, dry with soft cloth, avoid chloride cleaners

CERTIFICATION

• Compliance: ISO 9001

• Dimensions in mm (Tolerance ± 5 mm)
