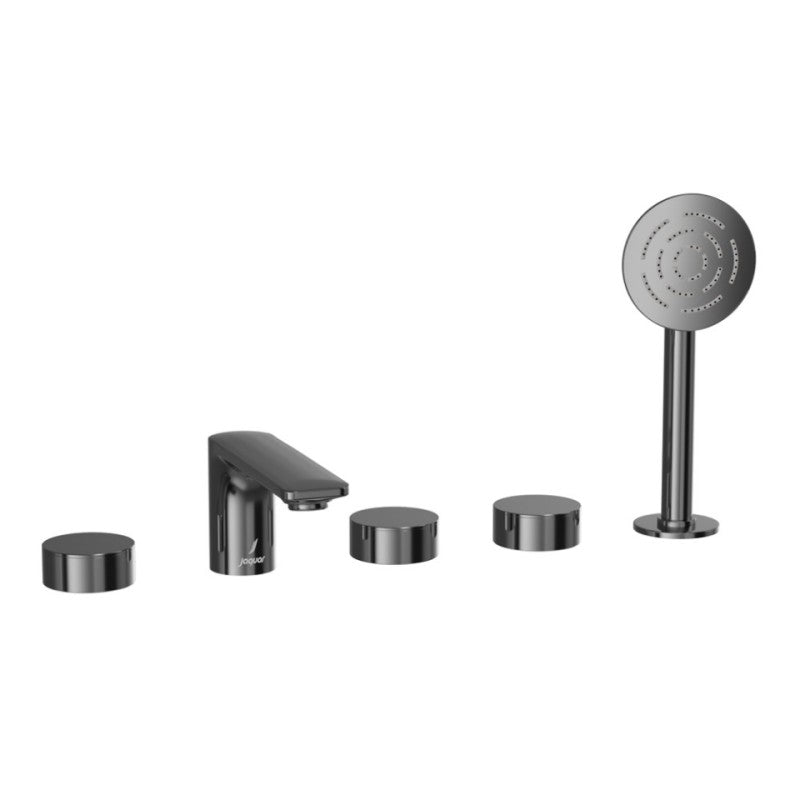

5-Hole Bath & Shower Mixer

Product Code LAG-CHR-91287
Description 5-Hole Bath & Shower Mixer, Deck Mounted
Flow Rate 29.84 LPM @ 3 bar
Flow regulator
By using flow regulators (Product should be ordered with suffix as G-2.5 LPM, GA-6.0
LPM, GB-8.0 LPM, GC-13.0 LPM, GD-3.8 LPM & GE-1.3 LPM @ 3.0 Bar pressure) one
can regulate the flow rate.
Recommended Water
Pressure 0.5 Bar - 5 Bar
Brass Specification in
Percentage
Brass Ingots as per IS:1264-1997
Cu (58.0-63.0), Sn (0.0-1.0), Pb (0.5-2.5), Ni (0.0-1.0), Al (0.2-0.8), Mn (0.0-0.5), Total
Impurity (0.0-2.0), Zn (Remainder)
Brass Rod as per IS:319-1989
Cu (56.0-59.0), Pb (2.0-3.5), Fe (0.0-0.35), Total Impurity (0.0-0.7), Zn (Remainder)
Brass Pipe as per IS:407-1996
Cu (62.0-65.0), Pb (0.0-0.3), Fe (0.0-0.01), Total Impurity (0.0-0.6), Zn (Remainder)
Cartridge Specification
Fittings : Components have WRAS Approved for food grade conformity with Brass
Housing and Spindle
Life Cycle EN 200: 200,000 cycles (Standard)
- 5.0 LAC Cycles as per EN 200*
Water Tightness 16 bar (Pass)
Pressure Resistance 25 bar (Pass)
Finish
Plating: Nickel-10.0 micron Chromium-0.3 micron
Salt Spray (500 hrs + Validated)
Adhesion (Pass)
Aerator Size WRAS, ACS Approved (24X1)
Available Single Colour
Finishing
Antique Bronze (ABR), Antique Copper (ACR), Black Chrome (BCH), Black Matt (BLM),
Gold Matt-PVD (GMP), Gold Bright-PVD (GBP), Graphite (GRF), Stainless Steel Finish
(SSF), White Matt (WHM) & Rose Gold Bright-PVD (RBP)
Available Dual Colour
Finishing
(First Colour for Body &
Second for Lever)
Rose Gold Bright-PVD & Rose Gold Matt-PVD (RRM), White Matt & Chrome (WMC),
Black Matt & Black Chrome (BBC), Gold Matt-PVD & Gold Bright-PVD (GMG), Black
Matt & Gold Matt-PVD (BGM), Black Chrome Matt & Gold Matt-PVD (BCG)
* As per in-house testing done on automatic life cycle testing machine made by Giussain, Italy
DISCLAIMER: Our every effort has been made to ensure factual accuracy, the information presented subject to changes
due to requirements in different sites, markets and/ or countries. 10% variation in flow rate may be possible. Jaquar
reserves the right to make the necessary amendments at any time without prior notice.
