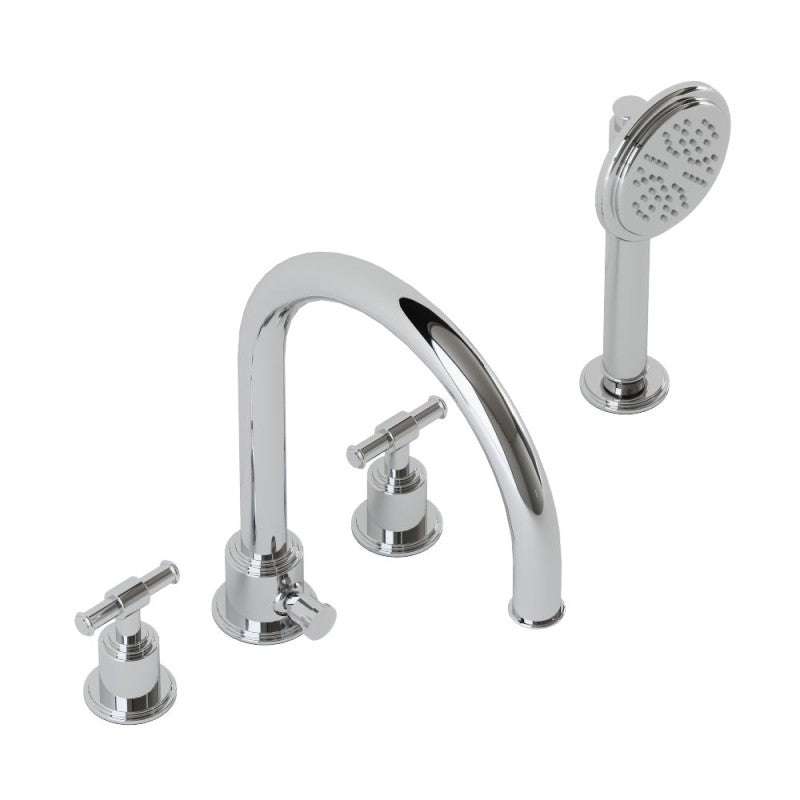

4-Hole Bath & Shower Mixer

Product Code VIC-CHR-503277
Description 4-Hole Bath & Shower Mixer, Deck Mounted
Flow Rate 25.00 LPM @ 3 bar
Recommended Water Pressure 1.0 Bar - 5 Bar
Material Composition
Specification in Percentage
Brass Ingots as per IS:1264-1997
Cu (58.0-63.0), Sn (0.0-1.0), Pb (0.5-2.5), Ni (0.0-1.0), Al (0.2-0.8), Mn (0.0-0.5), Total
Impurity (0.0-2.0), Zn (Remainder)
Brass Rod as per IS:319-1989
Cu (56.0-59.0), Pb (2.0-3.5), Fe (0.0-0.35), Total Impurity (0.0-0.7), Zn (Remainder)
Brass Pipe as per IS:407-1996
Cu (62.0-65.0), Pb (0.0-0.3), Fe (0.0-0.01), Total Impurity (0.0-0.6), Zn (Remainder)
ABS: Specific Gravity (g/cm2) 1.06-1.10, Melt Mass Flow Rate (g/10 min.) 20-26, Rockwell
Hardness 95-115, DTUL @ 66 psi (0.45 MPa) (0C) 78-102
Cartridge Specification Life Cycle EN 200: 200,000 cycles (Standard)
- 5.0 LAC Cycles as per EN 200*
Water Tightness 16 bar (Pass)
Pressure Resistance 25 bar (Pass)
Finish
Plating: Nickel-13.0 micron Chromium-0.40 micron
Salt Spray (700 hrs + Validated)
Adhesion (Pass)
Available Colour Finishing Black Chrome (BCH), Black Matt (BLM), Gold Bright PVD (GBP) & Blush Gold Bright PVD (BGP)
DISCLAIMER: Our every effort has been made to ensure factual accuracy, the information presented subject to changes due to
requirements in different sites, markets and/ or countries. 10% variation in flow rate may be possible. Jaquar reserves the right
to make the necessary amendments at any time without prior notice
