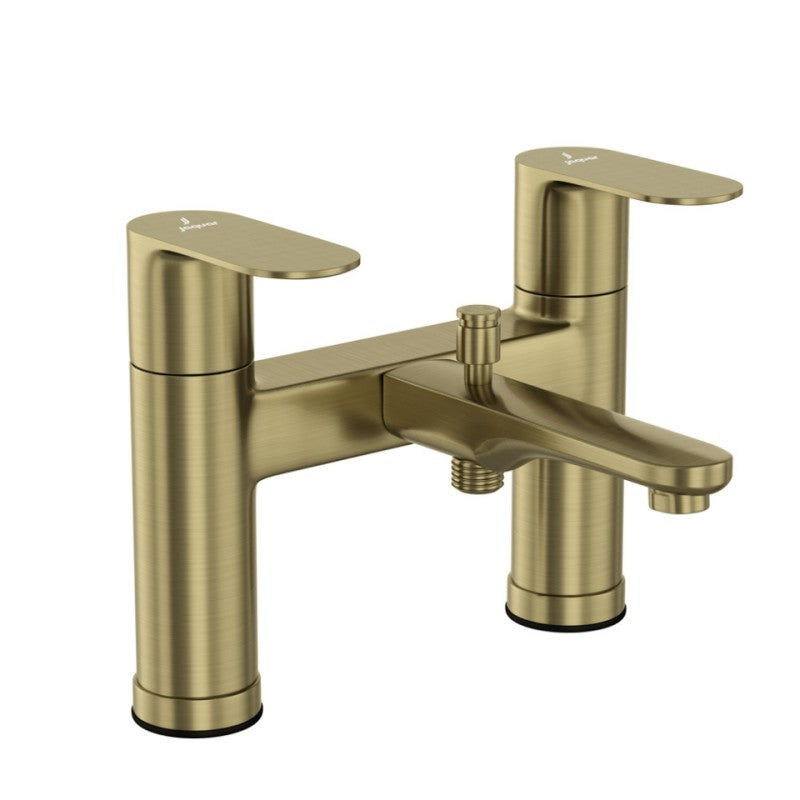

2 Hole H Type Bath and Shower Mixer

Product Code OPP-CHR-15275PM
Description H Type Bath and Shower Mixer
Flow Rate 29.18 LPM @ 3 bar
Recommended Water
Pressure 0.5 Bar - 5 Bar
Brass Specification in
Percentage
Brass Ingots as per IS:1264-1997
Cu (58.0-63.0), Sn (0.0-1.0), Pb (0.5-2.5), Ni (0.0-1.0), Al (0.2-0.8), Mn (0.0-0.5), Total
Impurity (0.0-2.0), Zn (Remainder)
Brass Rod as per IS:319-1989
Cu (56.0-59.0), Pb (2.0-3.5), Fe (0.0-0.35), Total Impurity (0.0-0.7), Zn (Remainder)
Brass Sheets as per IS:410-1977
Cu (61.5-64.5), Pb (0.0-0.3), Fe (0.0-0.075), Total Impurity (0.0-0.6), Zn (Remainder)
Cartridge Specification
Fittings : Components have WRAS Approved for food grade conformity with Brass Housing
and Spindle
Life Cycle EN 200: 200,000 cycles (Standard)
- 0.5 Million Cycles as per EN 200*
Water Tightness 16 bar (Pass)
Pressure Resistance 25 bar (Pass)
Finish
Plating: Nickel-10.0 micron Chromium-0.3 micron
Salt Spray (500 hrs + Validated)
Adhesion (Pass)
Aerator Size WRAS, ACS Approved (28X1)
Available Colour
Finishing
Antique Bronze (ABR), Antique Copper (ACR), Black Chrome (BCH), Black Matt (BLM),
Gold Dust (GDS), Full Gold (GLD), Graphite (GRF), Stainless Steel Finish (SSF) & White Matt
(WHM)
* As per in-house testing done on automatic life cycle testing machine made by Giussain, Italy
DISCLAIMER: Our every effort has been made to ensure factual accuracy, the information presented subject to changes
due to requirements in different sites, markets and/ or countries. 10% variation in flow rate may be possible. Jaquar
reserves the right to make the necessary amendments at any time without prior notice.
